1 Fiber Ethernet Converter, BIDI WDM, SC, 25km

1 Fiber Ethernet Converter, BIDI WDM, SC, 80km

10/100BASE-TX to 100BASE-FX BIDI WDM

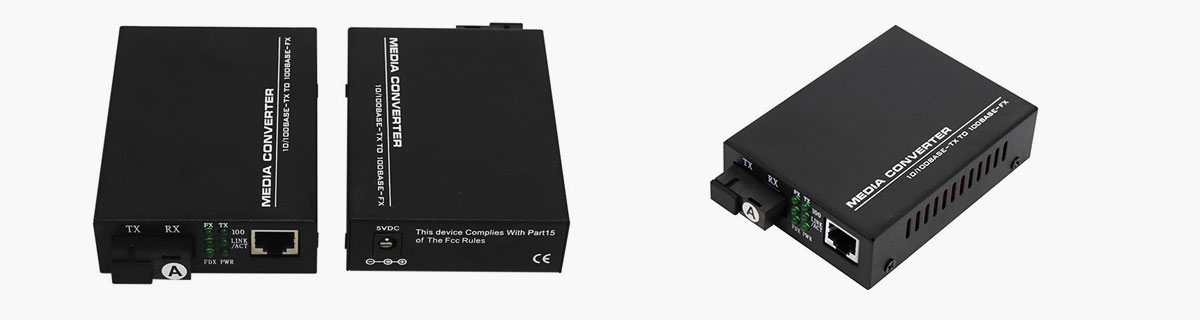

The GKC-1200S80, This BIDI (Bi-directional) 2 Wavelength WDM (Wave Division Multiplexing) Fiber Optic Media Converter is designed to fit into the fast-growing and ever advancing optical fiber network deployment environment. This stand-alone converter adapts the emerging WDM technology and can expand copper-based networks up to 80km through a single optical fiber and provide bi-directional data. Users can now double their optical fiber bandwidth and upgrade their existing 100Base-TX or even 10Base-T network easily and more cost effectively. Product is sold in pairs.

Overview:

Product Features

  • Bi-directional
  • Easy Intergration
  • Cost Effective
  • NWay Auto-negotiation support on RJ-45 Port
  • Auto-negotiation of Duplex (HDX/FDX) on RJ-45 Port
  • Compliant with IEEE802.3 (10BASE-T), IEEE802.3u (100BASETX/FX)
  • FCC Class A & CE approved

Technical Details:

Type 10/100BASE-TX TO 100BASE-FX
Connector SC/UPC
Mode Single-mode, OS2, 9/125
Maximum Distance 80km Single-mode
Input Power 2A +5V, Comes with 115V Adapter
Operating Temperature 0 ~ 70°C
Height 26mm
Width 70mm
Depth 94mm
