Fiber Optic Attenuator
GKoptic offers a wide range of fiber optic Attenuators. Available for use in Single-mode 9/125, Multimode 50/125 and Multimode 62.5/125 applications. Our Male to Female Buildout Optical Attenuation (Pads) are available in all fiber modes with LC, LC/APC SC, SC/APC, FC, FC/APC and ST types.
The In-line Attenuator is custom manufactured to meet the length and connector type customers needs.
Overview:
Applications
- Testing equipment
- Fiber optical CATV
- Fiber optical sensor
- Fiber optical telecommunication system
Features And Options
- Male to Female type
- Bellcore compliant
- Durability (well over100mw)
- Wavelent independent (DWDM)
Ordering options
- SC,FC,ST,LC,MU available
- UPC&APC available
- Wavelength: 1310nm,1550nm 1310/1550nm
- 1,2,3,4,5……25dB available.
Technical Details:
| Item | Parameter | |||
| Model | Fixed, Female&Male, In-line, Variable | |||
| Operating Wavelength | SM:1310/1550nm | SM:1310/1550nm | ||
| Attenuation Range | 1~30dB | |||
| Return Loss | APC: ≥60db | UPC: ≥55dB | PC:≥50dB | |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) | |||
| Maximum Optical Input Power | 1000mW | |||
| Polarization Dependent Loss | ≤0.1dB | |||
| Operation Temperature | -40°C~+60°C | |||
| Storage Temperature | -45°C~+ 85°C | |||
| Humidity | 95%RH | |||

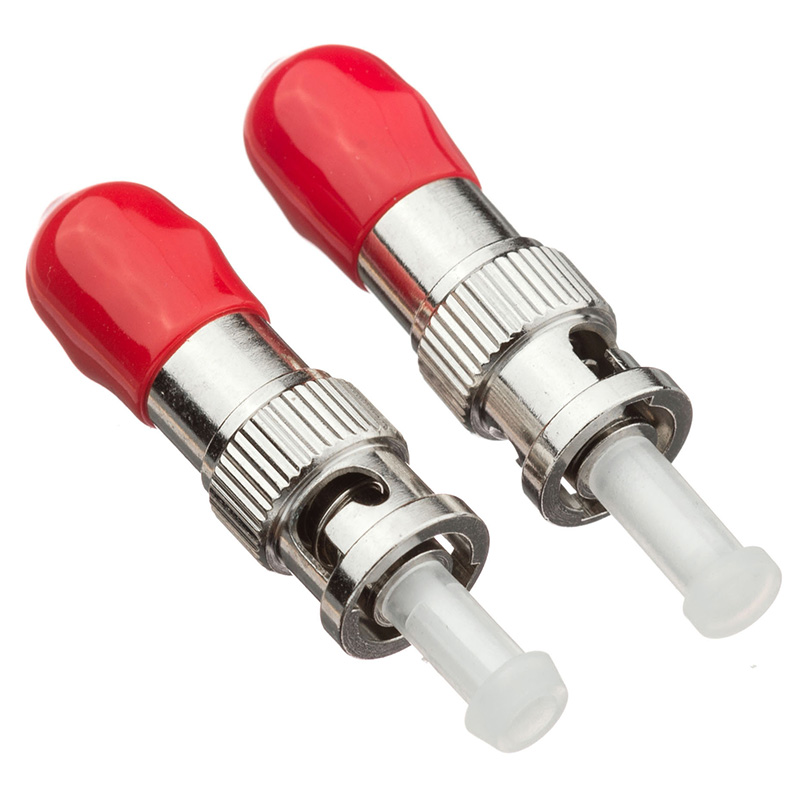

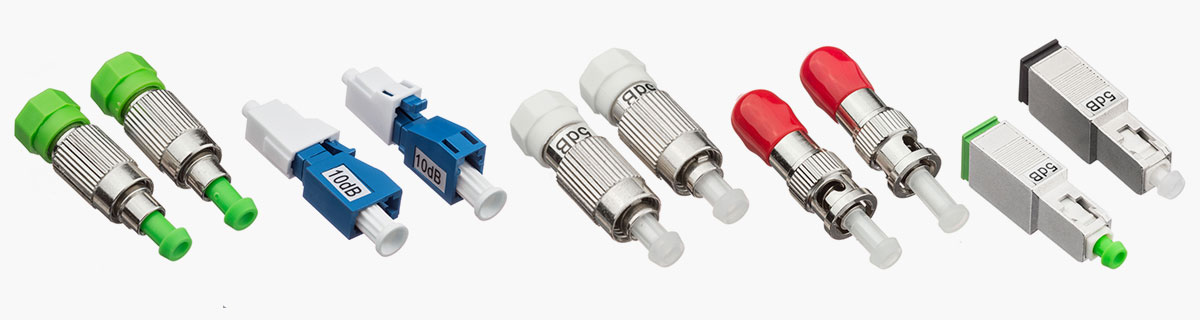

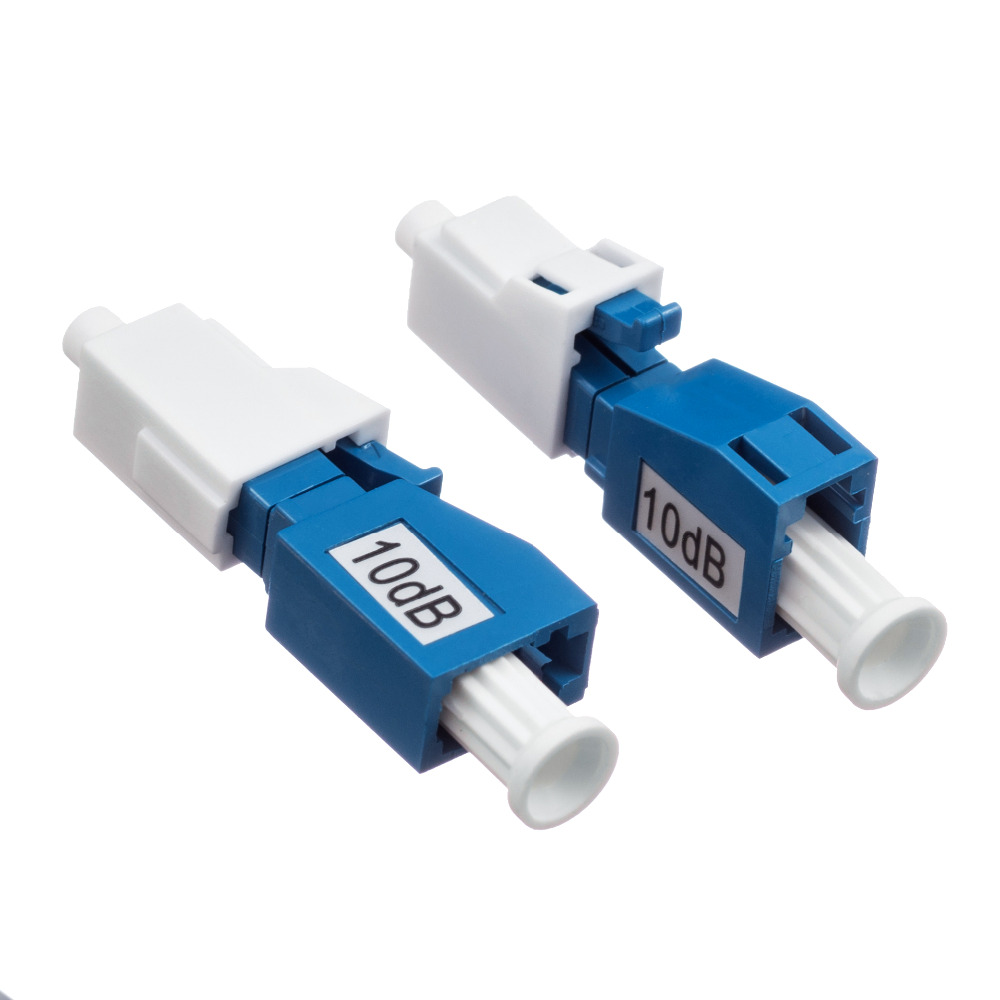

Product Photos:
