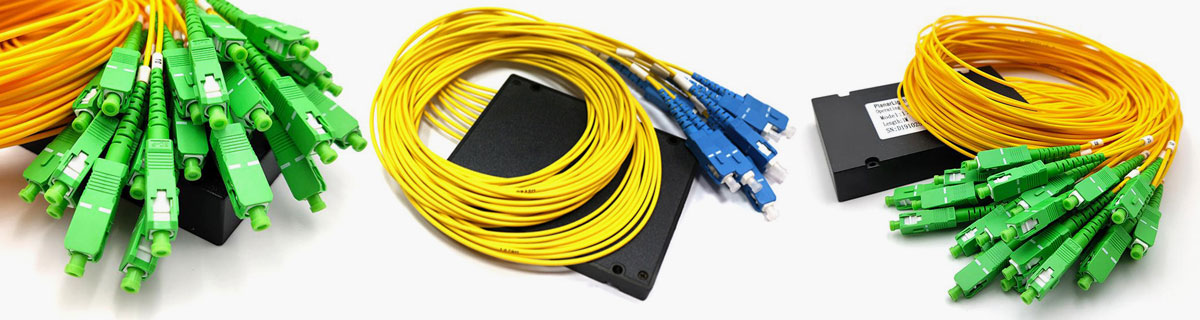

ABS PLC Splitter
GKoptic offers a variety of box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don’t see here. The GKoptic’s PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.
Overview:
Applications
- Fiber to The Point (FTTX)
- Fiber to The Home (FTTH)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
Options
- 1×2, 1×4, 1×8, 1×16, 1×32, 1×64 splits
- 2×2, 2×4, 2×8, 2×16, 2×32, 2×64 splits
- Unconnectorized
- Fiber jacketing outside boxes 2mm and up to 3mm
- ABS box type or inside metal box/module cassette type
- SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options
- Custom connector configurations and combinations
Features
- Low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical Stability
- Telcordia GR-1221 and GR-1209
Technical Details:
Parameter/Type | Nx2(N=1or2) | Nx4(N=1or2) | Nx8(N=1or2) | Nx16(N=1or2) | Nx32(N=1or2) | Nx64(N=1or2) |
Fiber | 9/125 um SMF-28e or customer appoint | |||||
Operating Wavelength(nm) | 1260~1650(nm) | |||||
Insertion Loss | ≤3.9dB | ≤7.1dB | ≤10.3dB | ≤13.3dB | ≤16.3dB | ≤19.8dB |
Loss Uniformity(dB) | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.2dB | ≤1.5dB | ≤2.0dB |
Polariation Dependent Loss | ≤0.15dB | ≤0.15dB | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB |
Return Loss | UPC≥50dB APC≥60dB | |||||
Directivity | ≥55dB | |||||
Working Temperature(℃) | -40°C to +85°C |
![ABS PLC Splitter-1 ABS PLC Splitter](https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-1.png 941w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-1-300x300.png 300w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-1-150x150.png 150w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-1-768x768.png 768w)

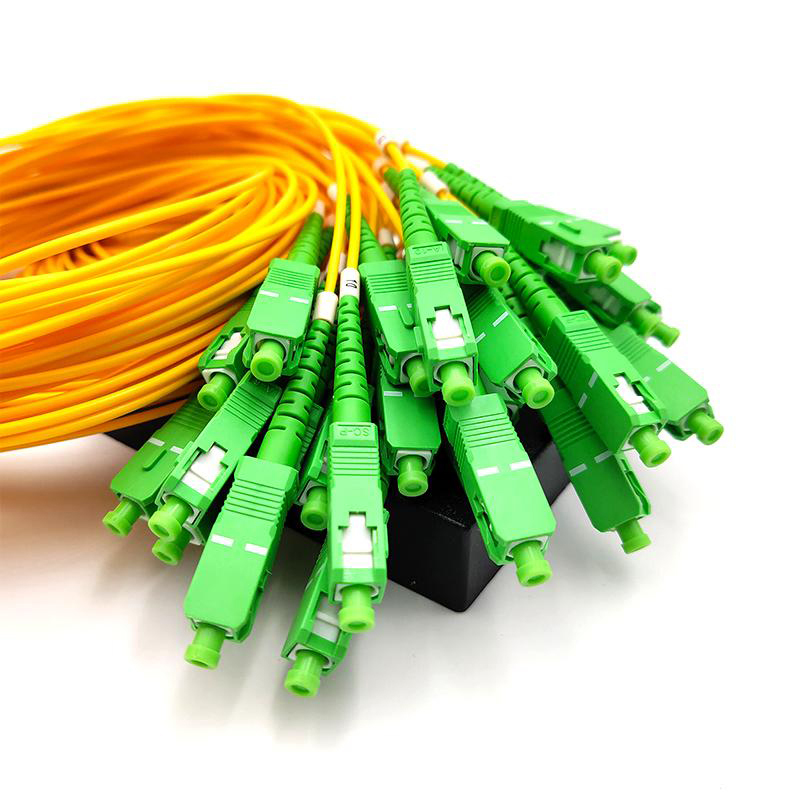

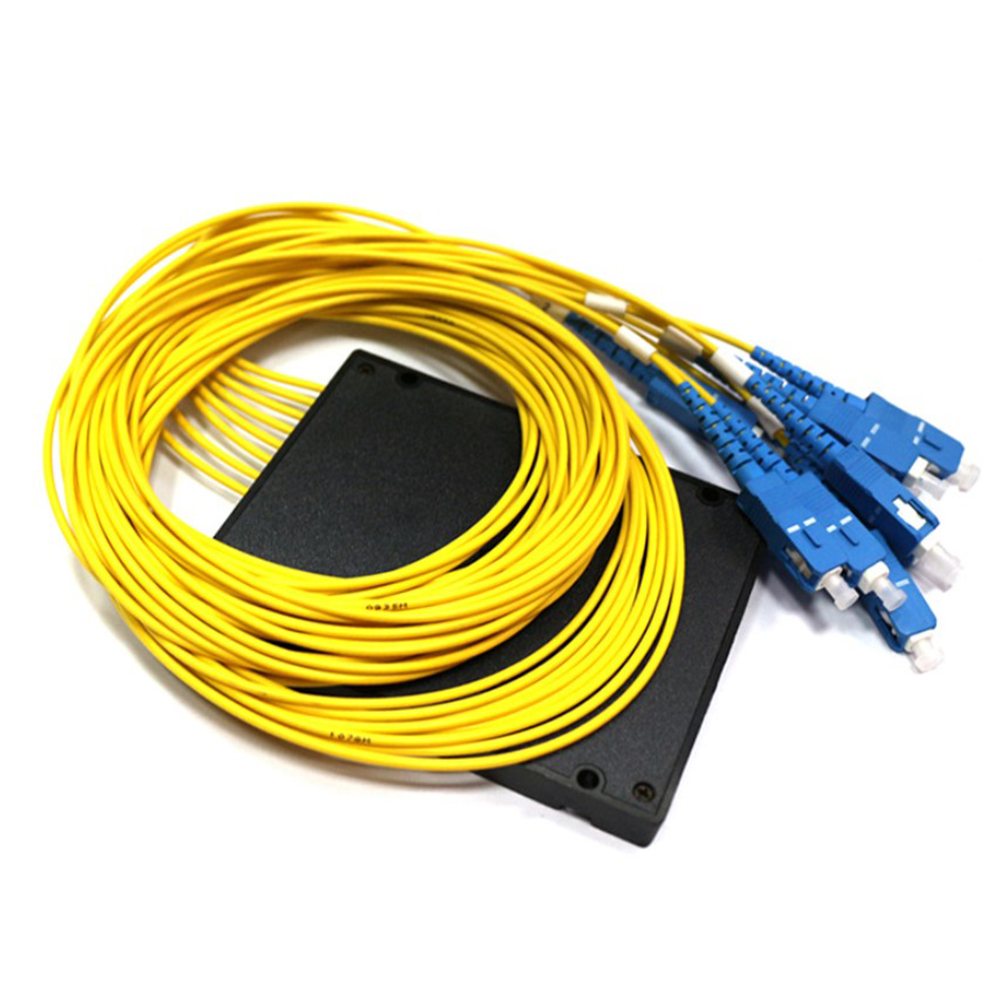

Product Photos:
![ABS PLC Splitter-3 ABS PLC Splitter](https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-3.jpg 800w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-3-300x300.jpg 300w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-3-150x150.jpg 150w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-3-768x768.jpg 768w)
![ABS PLC Splitter-2 ABS PLC Splitter](https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-2.png 1000w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-2-300x300.png 300w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-2-150x150.png 150w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-2-768x768.png 768w)
![ABS PLC Splitter Banner ABS PLC Splitter](https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-Banner.jpg 800w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-Banner-300x300.jpg 300w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-Banner-150x150.jpg 150w, https://gkoptic.com/wp-content/uploads/2021/12/ABS-PLC-Splitter-Banner-768x768.jpg 768w)
