Module PLC Splitter
PLC (Planar Lightwave Circuit) Splitters are Single Mode fiber optic splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1×4, 1×8, 1×16, and 1×32. PLC Splitters are available with 900µm loose tube single mode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Overview:
Applications
- Fiber to The Point (FTTX)
- Fiber to The Home (FTTH)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
Features
- Low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Excellent Mechanical Stability
- Telcordia GR-1221 and GR-1209
Technical Details:
| Parameter | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 |
| Operating Wavelength(nm) | 1260~1650 | ||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 |
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 |
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||
| Input Power (mW) | 250max | ||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||
| Fiber Type | Corning G657A1 | ||||||||
Mini PLC Splitter Package Dimensions:
| WxHxD(mm) | Port | |||
| 60x4x4 | 1×4 | 1×8 | 2×4 | 2×8 |
| 60x12x4 | 1×16 | 2×16 | ||
| 80x12x6 | 1×32 | 2×32 | ||
| 100x40x6 | 1×64 | |||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1×4 108=1×8 …… 164=1×64 204=2×4 …… 232=2×32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |

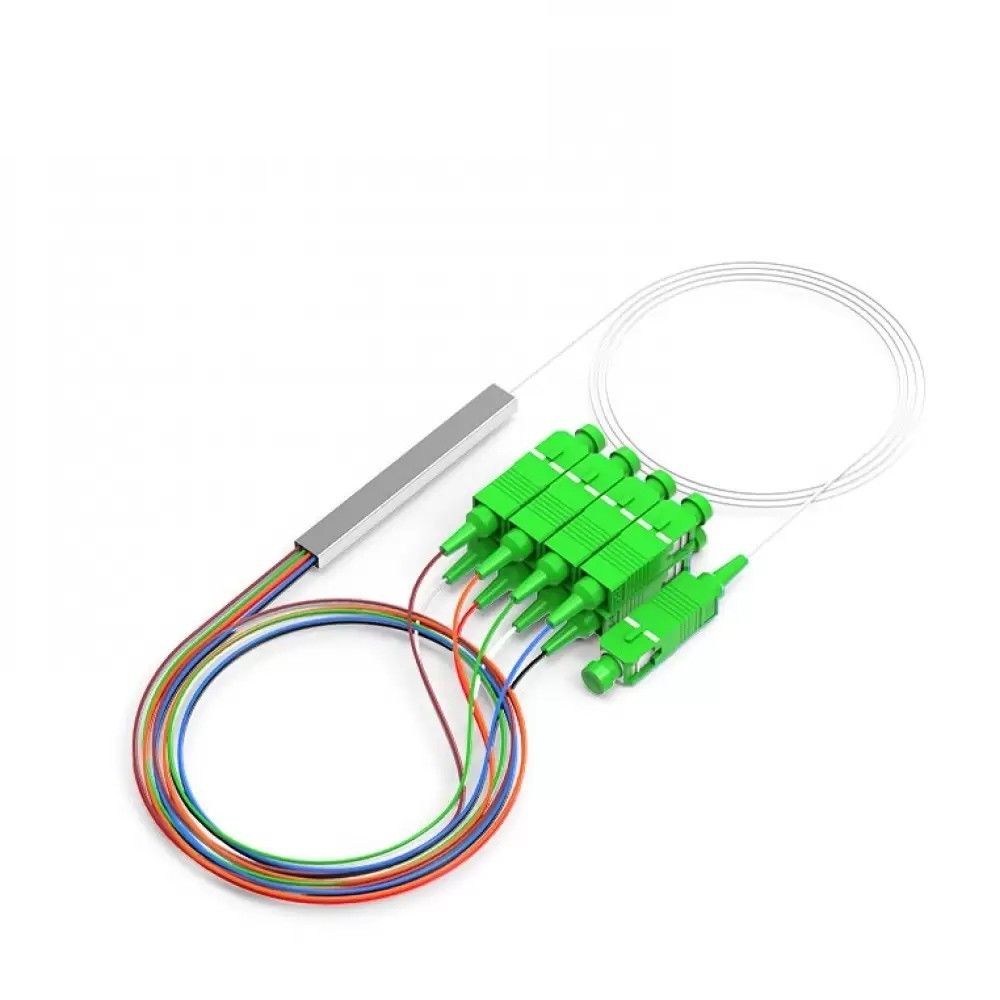

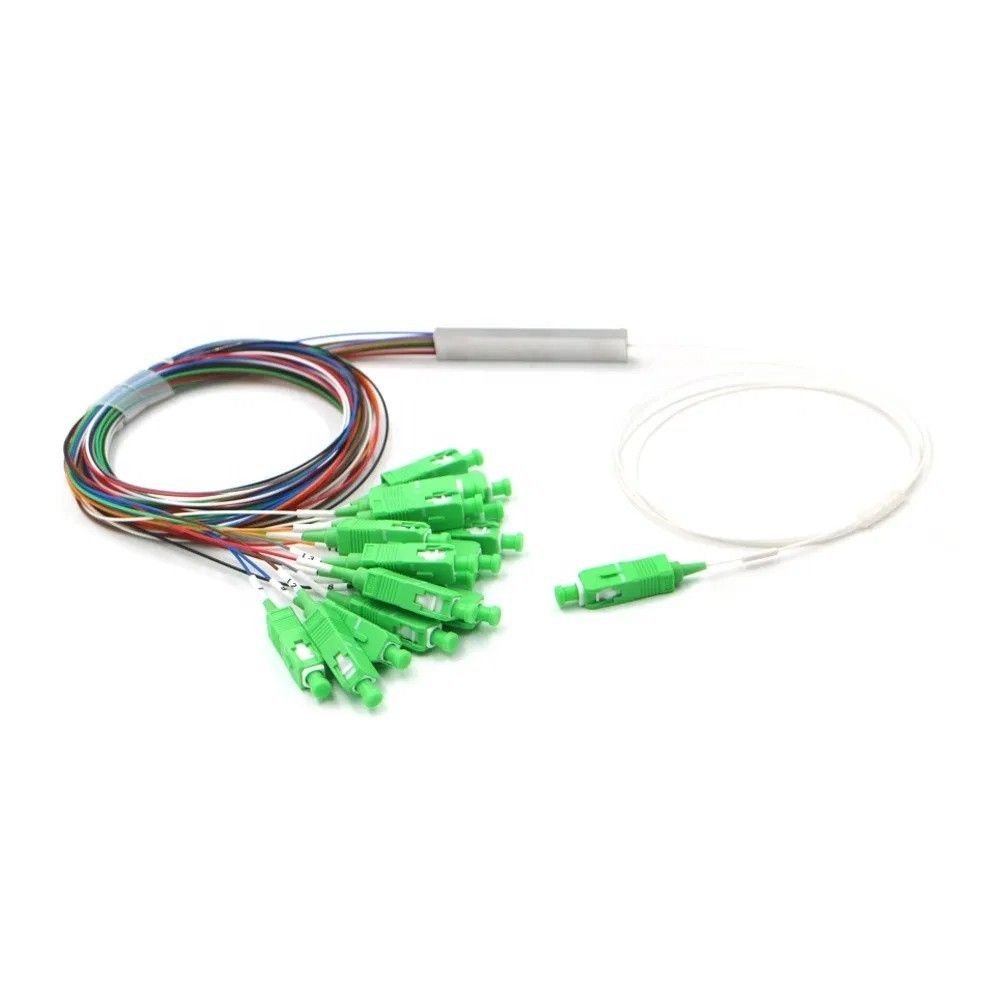

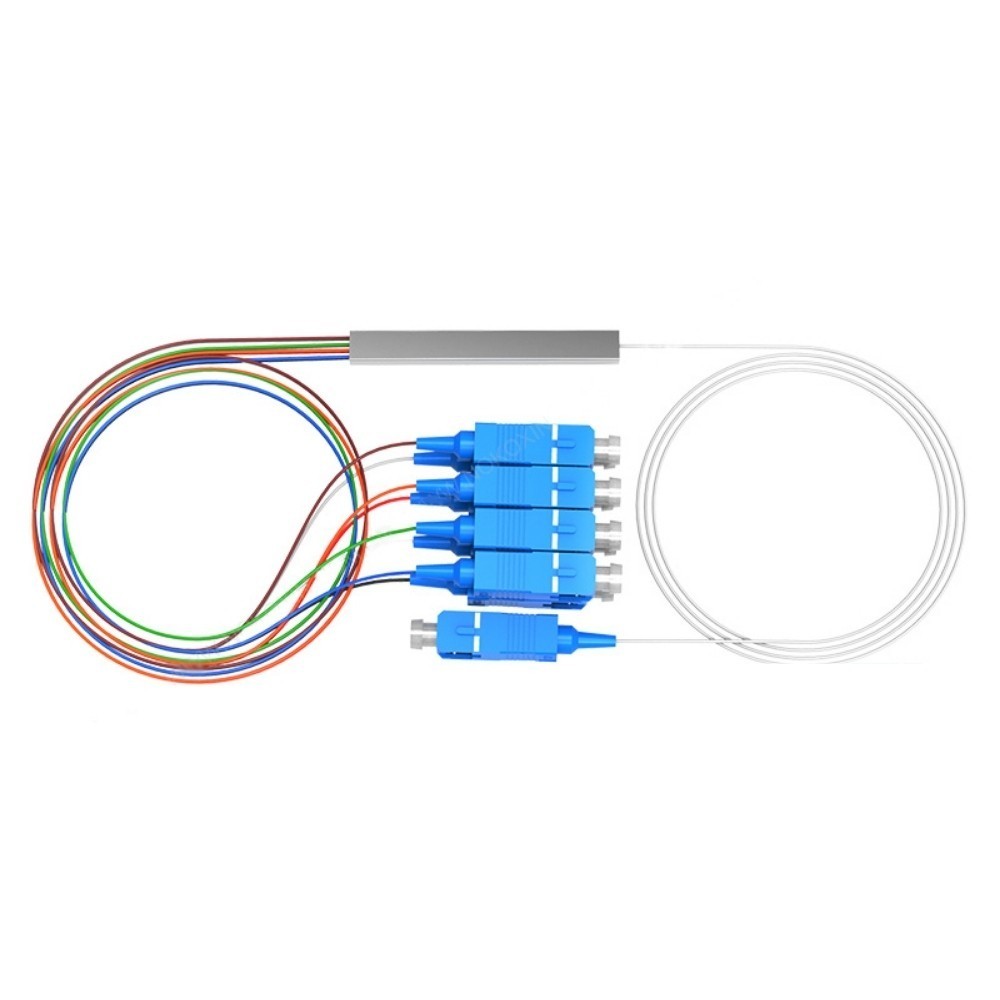

Product Photos:
