Fiber Cleaver

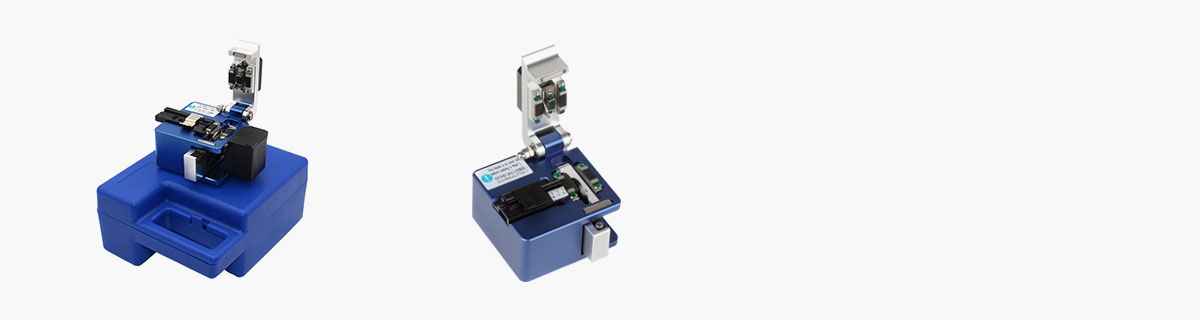

GKC-FC800 Fiber Cleaver is a high precision single fiber cleaver. It is a reliable cleaver for fiber optic network and FTTx FTTH applications. It contains 24-position blade and performs 48,000 times single fiber cleaves. A hexagonal wrench on the bottom of the cleaver allows you to adjust the cleaver blade flexibly.
Overview:
Applications
- FTTx construction
- Optical network construction
- LAN, WAN, and Metro networks
- CATV networks
Features
- Internal hexagonal wrench placement design
- One step operation, no special skill is required
- Compact design
- High reliability
- Good cleaving performance
- 48,000 times cleave per blade
- High stability and precision
Technical Details:
| Fiber Type | single fiber |
| Cladding Diameter | 125um |
| Fiber Diameter | 250um/900um/2mm/3mm/2*3mm flat drop cable |
| Cleave Angle Capability | typically <0.5˚, max. <1˚ |
| Cleave Length | fiber diameter 250um/900um: 9~16mm/10~16mm |
| Blade Lifetime | 48,000 fiber cleaves (1,000 times*24 positions*2 blade heights) |
| Dimension | 52W*52D*51H (mm) |
| Weight | 260g |
Ordering Information:
| Model | Name | Description |
| GKC-FC800 | High Precision Fiber Cleaver | without fiber collector |
| GKC-FC800C | High Precision Fiber Cleaver | with fiber collector |
| GKC-CB-02 | Replacement Blade | 12 positions |
