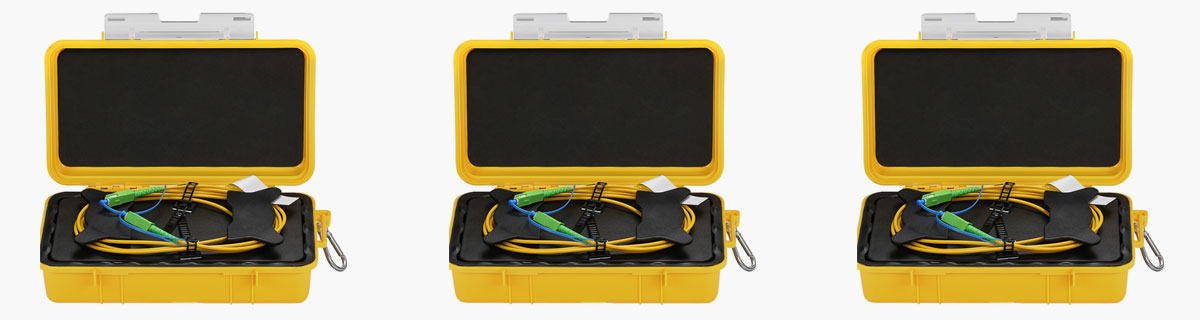

Fiber Launch Cable

Fiber Launch Cable

An Optical Time Domain Reflectometer (OTDR) is a mandatory fiber optic testing tool that uses light backscattering technologies to analyze optical fiber performance. An OTDR can test the light loss and locate the breaks, splices, and connectors in a fiber-optic network. However, an OTDR has a “Dead Zone” which can affect the test results. To overcome the limitation of this OTDR dead zone, an OTDR Launch Box is used.

Launch boxes aid in the testing of a fiber optic cable when using an OTDR. Launch boxes are used with OTDRs to help minimize the effects of the OTDR’s launch pulse on measurement uncertainty. They are used for Installation/Testing, Training, and Calibration. They can also be called a Pulse Suppressor or Delay Line.

All of GKoptic’s Launch Boxes are terminated with low-loss connectors for exceptional accuracy and performance.

Overview:

Applications

  • Launch fiber OTDR,
  • Calibration of equipment,
  • Simulation of loss, length, delay time and reflection,
  • SM and MM networks measurement,
  • xPON, FTTX and industrial networks measurement.

Features

  • Tough and portable suitcase constructed from SR Polypropylene material,
  • Prevents fiber from damage during transport,
  • Portable construction possible to use outdoor,
  • Configuration available on customer’s demand for OTDR application,
  • Wide range of optical fiber and connectors.

Technical Details:

  • Dimensions: 25 x 15.3 x 7.6cm
  • Material: SR Polypropylene,
  • Fiber segment: continuous,
  • Length up to 5000 m,
  • Operating temperature: -40 to +55°C,
  • Humidity: 0 to 95%, non-condensing,
  • Typical Insertion Loss: 0.5 dB @1310 nm for 1000 m.
