Fiber Optic Patchcord
GKoptic offers a huge selection of Fiber Optic Patch Cords. Single-mode and Multimode fiber optic jumper and patch cords are available at factory direct prices. Some of our options include; 9/125, 50/125, 62.5/125, 10Gb OM3 and OM4 or OM5. Our assemblies are manufactured using Corning glass or YOFC glass and all cables can be customized for little or no extra cost.
Overview:
Applications
- Tele communication
- Data communication
- Local Ares Networks(LANs)
- FTTx Deployments
- Testing Instruments
- CATV Links
- LTE/3G
Features And Options
- Multimode & singlemode connectors SC, FC, ST, LC, MU, MTRJ, E2000
- Ultra polished connectors(UPC) and angle polished connectors(APC)
- Available at OS1, OM2,OM3,OM4.
- Available at 1M, 2M,3M,5M,10M,XXM.
- 4 cores,8 cores,16cores,32cores breakout versions
- OFNP plenum jacket Or LSZH Jacket.
- Full traceability & test certificate supplied with each assembly
- 100% tested for Insertion loss and return loss
- Bend insensitive fibers of G657A/B
- OM4 fibers 10 Gigs at 550 meters
- Any color of cable jacket and connectors available
- Cable printing
- Private labeling or OEM packaging
Technical Details:
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -40℃~+60℃ | ||
| Storage Temperature | -45℃~+85℃ | ||
| Fire Resistant | IEC 60794-2-30 | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
| Fiber type | Single mode: | (1)9/125-G652D | (2)9/125-G655 | (3)9/125-G657A,G657A2 | (4)9/125-G657B3 | |
| Multimode: | (5)50/125-OM2 | (6)62.5/125-OM1 | (7)50/125-OM3 | (8)50/125-OM4 | (9)50/125-OM5 | |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||

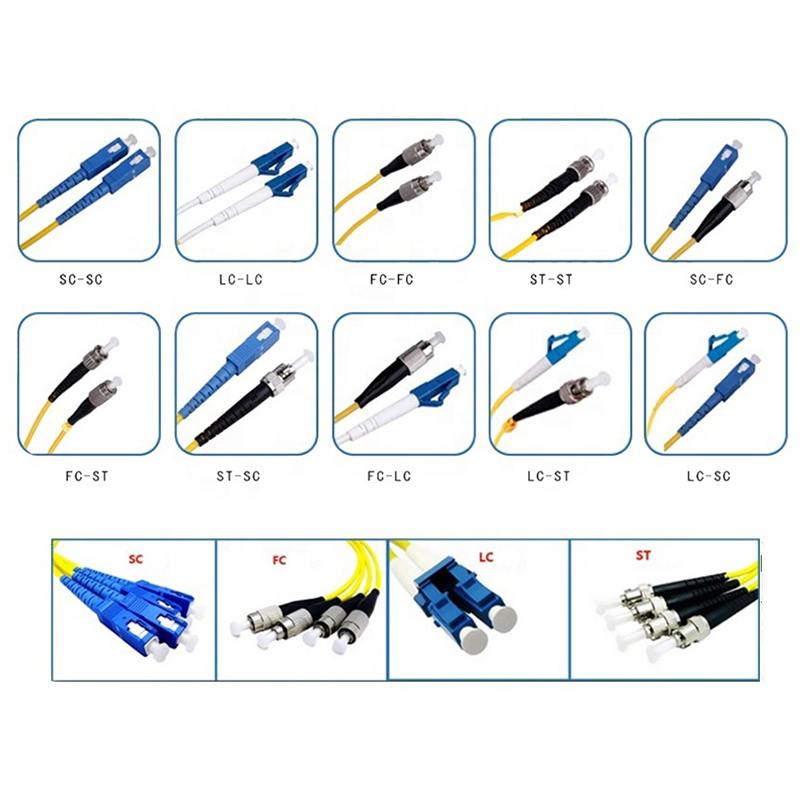

| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||||
| Cord type | Simplex ,Duplex | |||||
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||

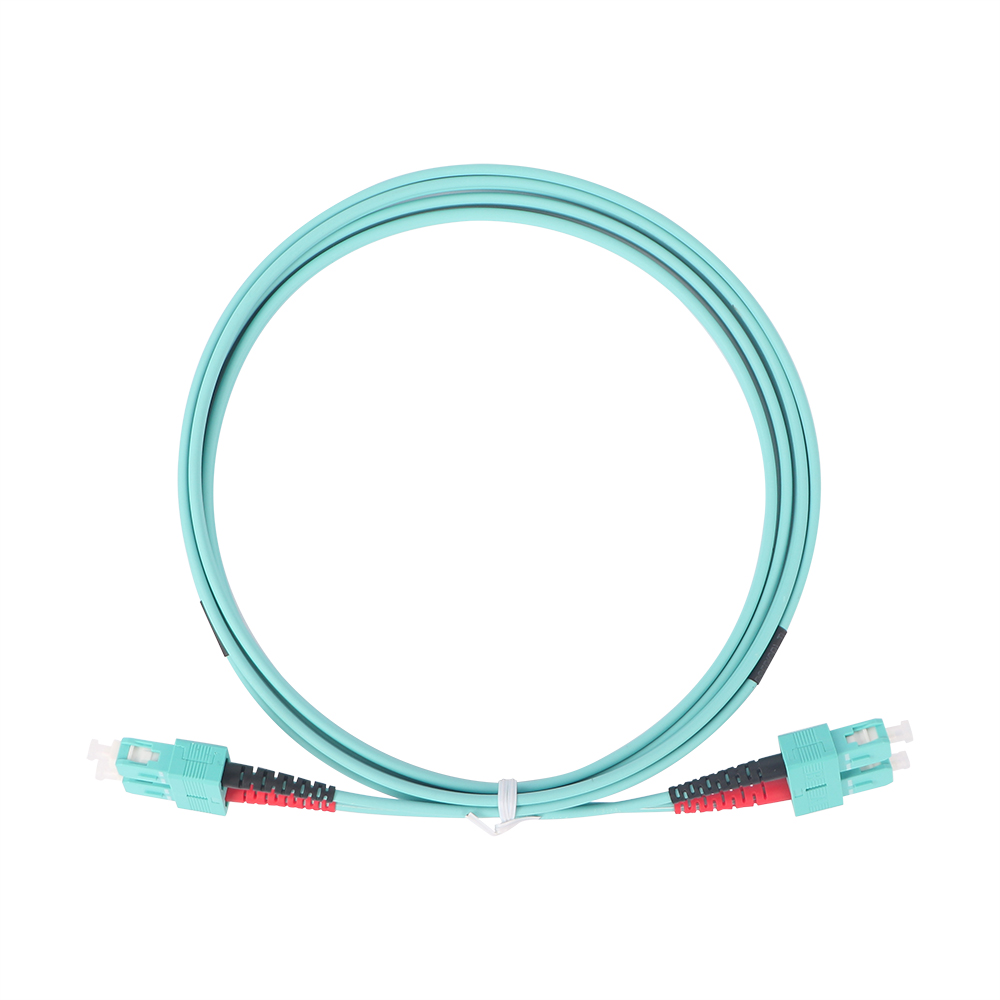

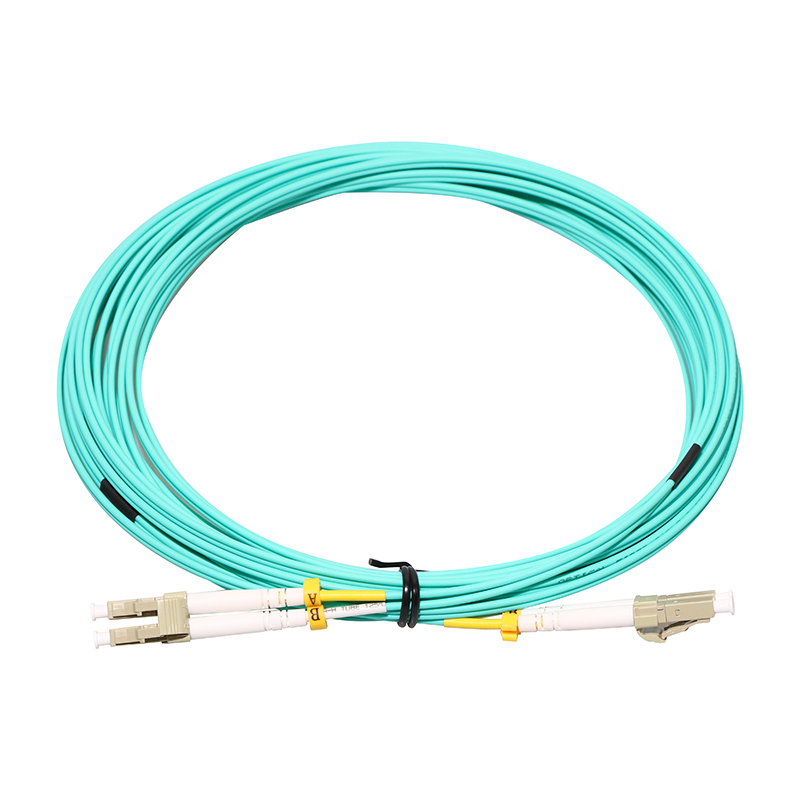

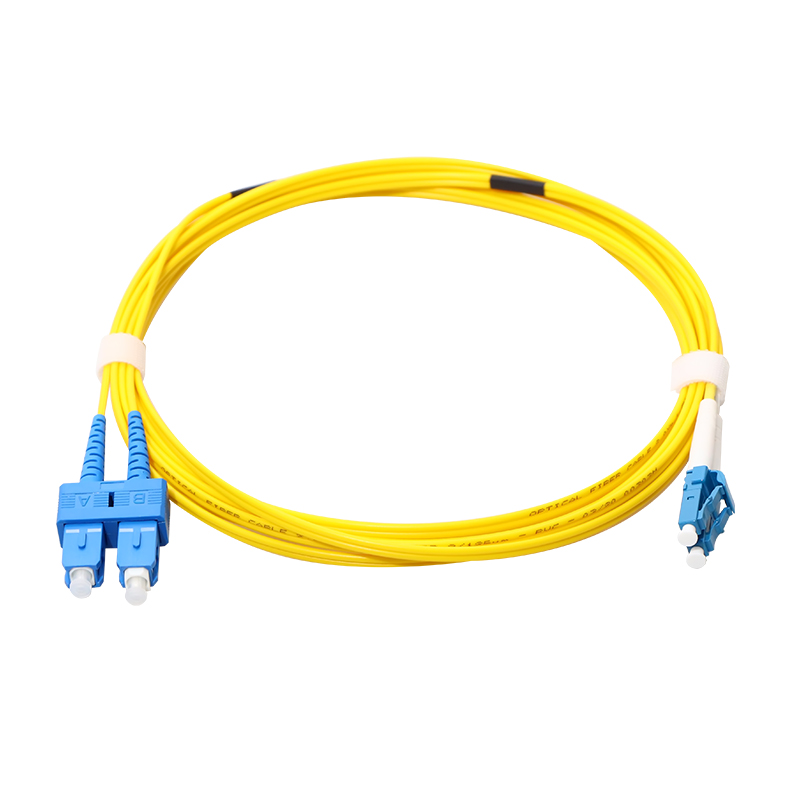

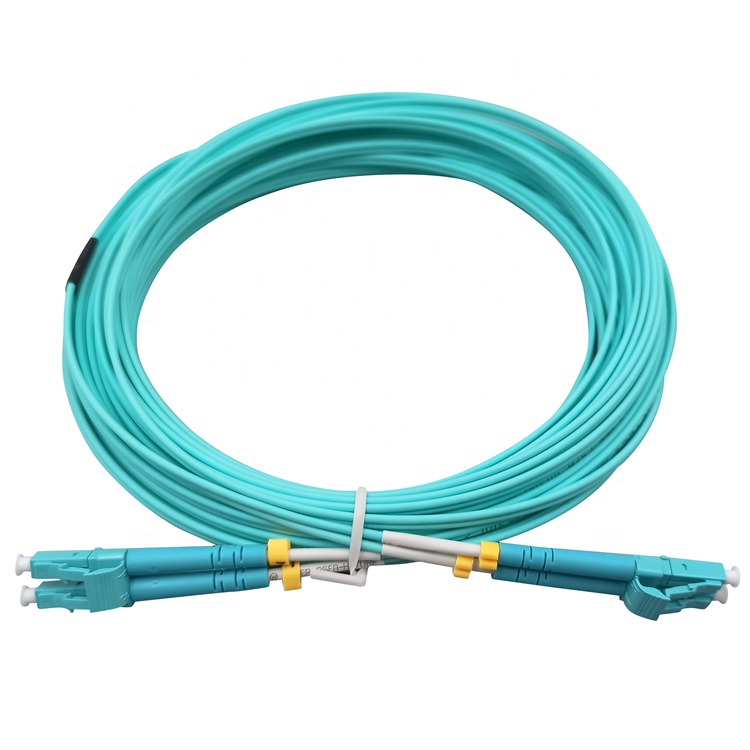

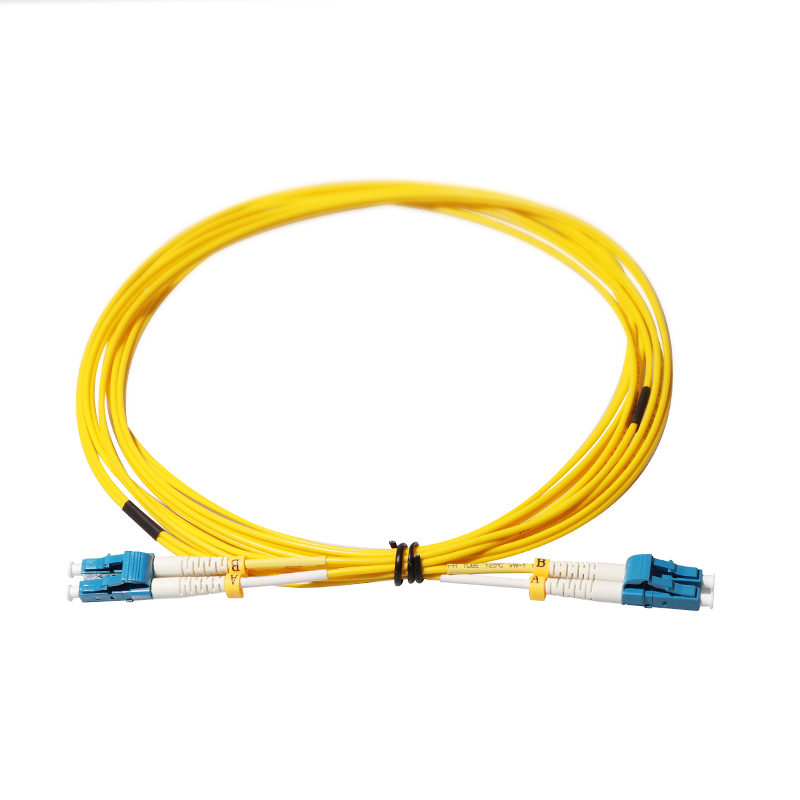

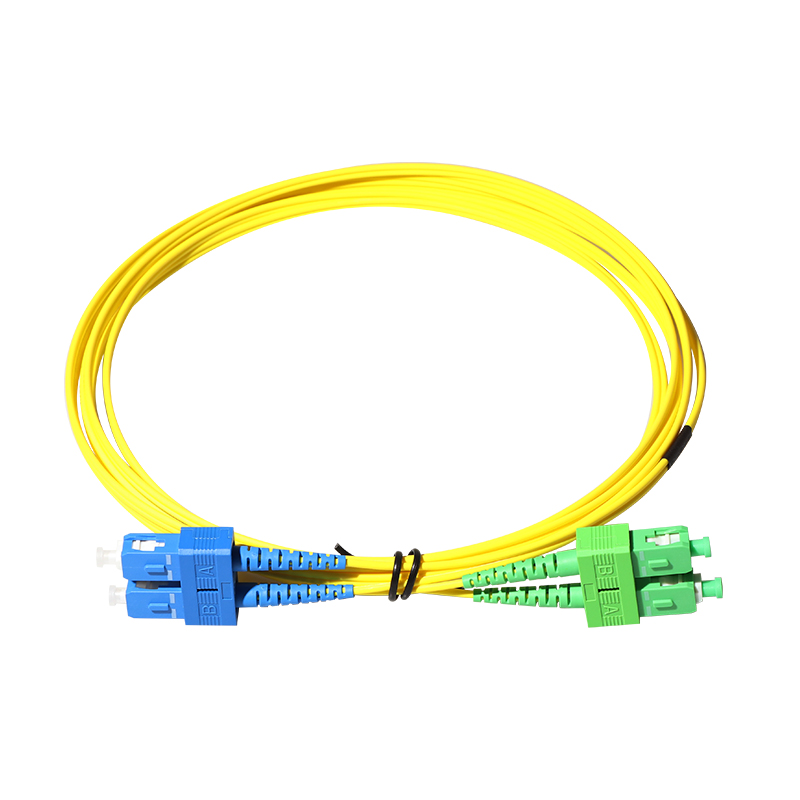

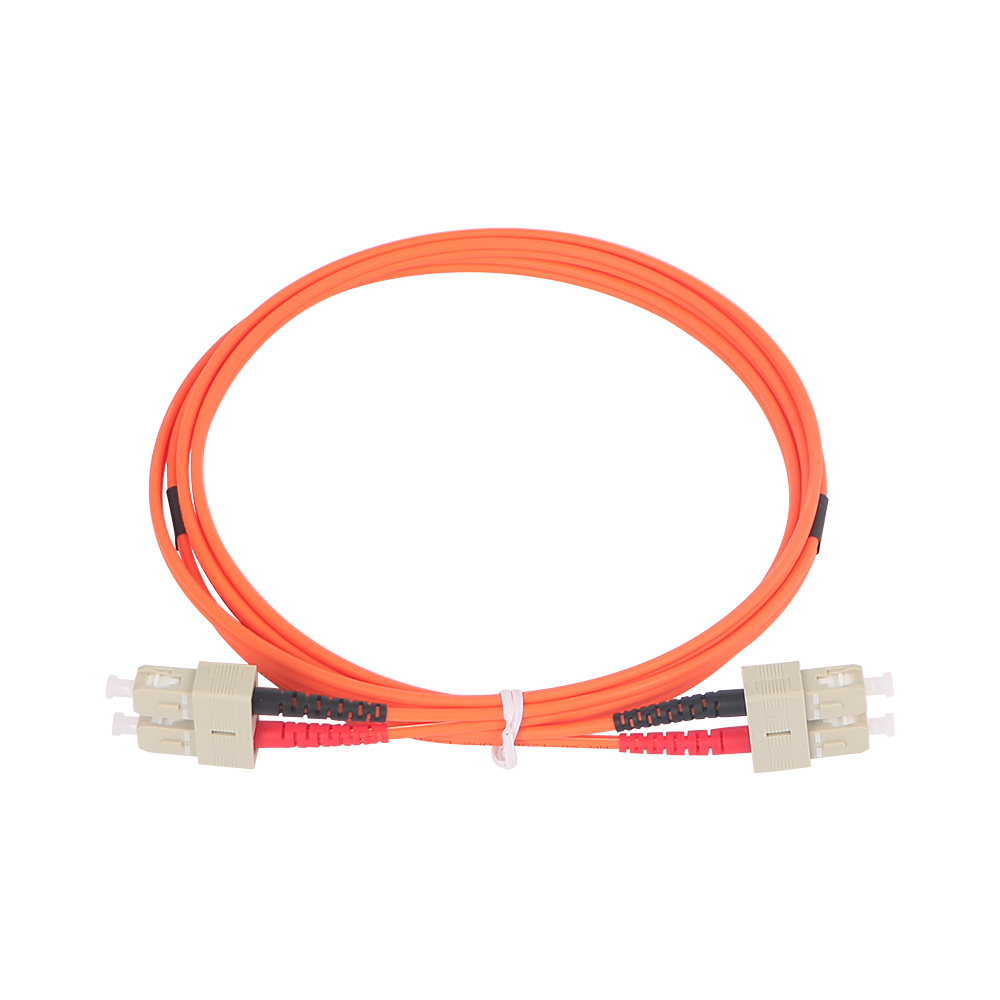

Product Photos:
