PDLC Outdoor Cable Assembly
PDLC connectors and required optical cables have become standard interface applications for 4G,5G and wireless base stations, such as remote wireless, optical fiber to antenna, etc. This product is not only suitable for these fields, but also for industrial, aerospace, national defense and other fields. The cable assembled by PDLC has been tested by salt spray. The waterproof grade reaches IP67. It is easy to install and transmit reliable data over a long distance under harsh environment.
Overview:
Applications
- Remote Radio Heads (RRH);
- Industrial outdoor applications;
- Multi-purpose Outdoor
- Deployment in Remote Radio Head cell tower applications
Features
- Standard DLC connector, well connected with standard LC adaptor
- Available Single mode and Multimode
- Easy Operation, reliable and cost-effective installation
- Compact design, Light weight, water proof, dust proof, corrosion resistant
Technical Details:
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||

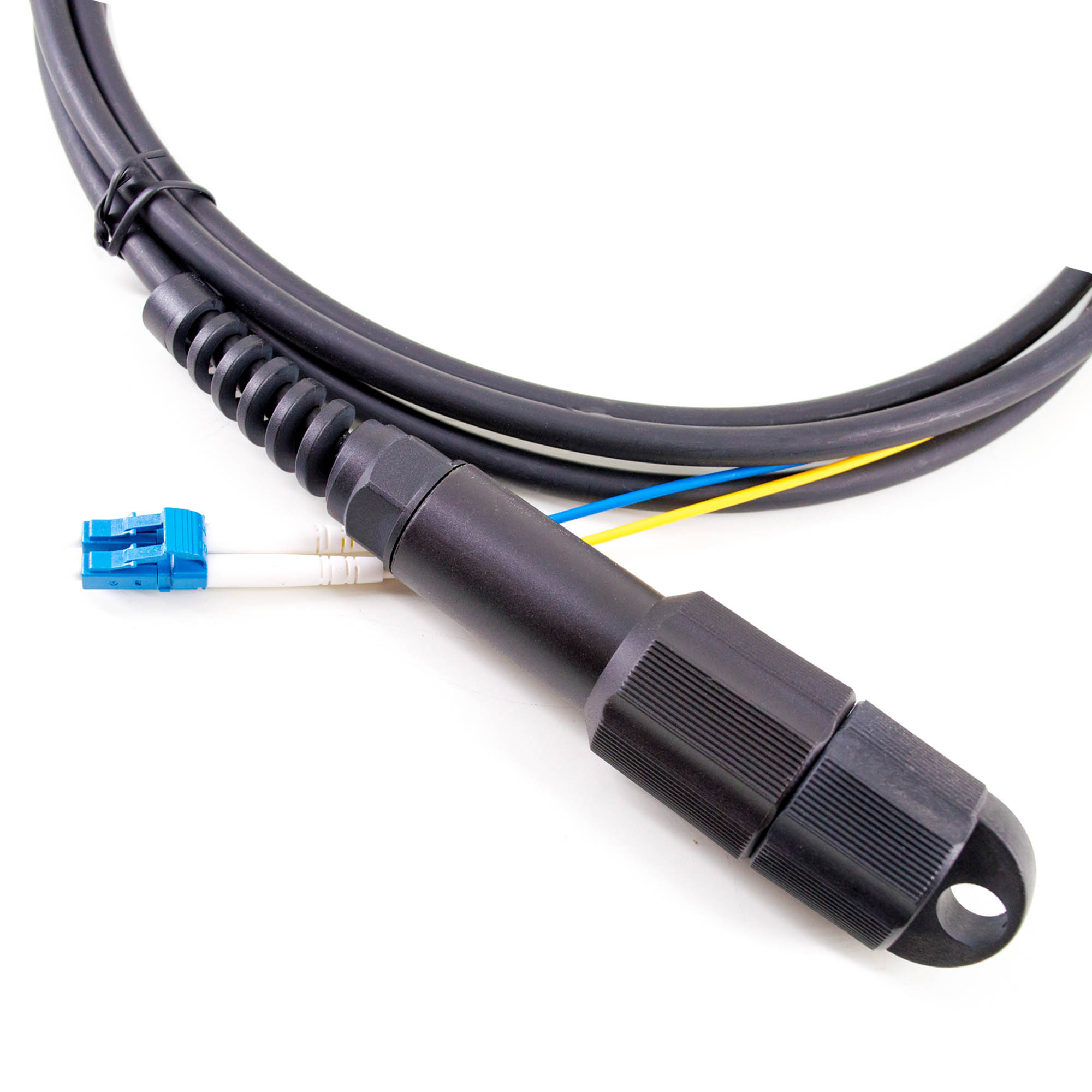

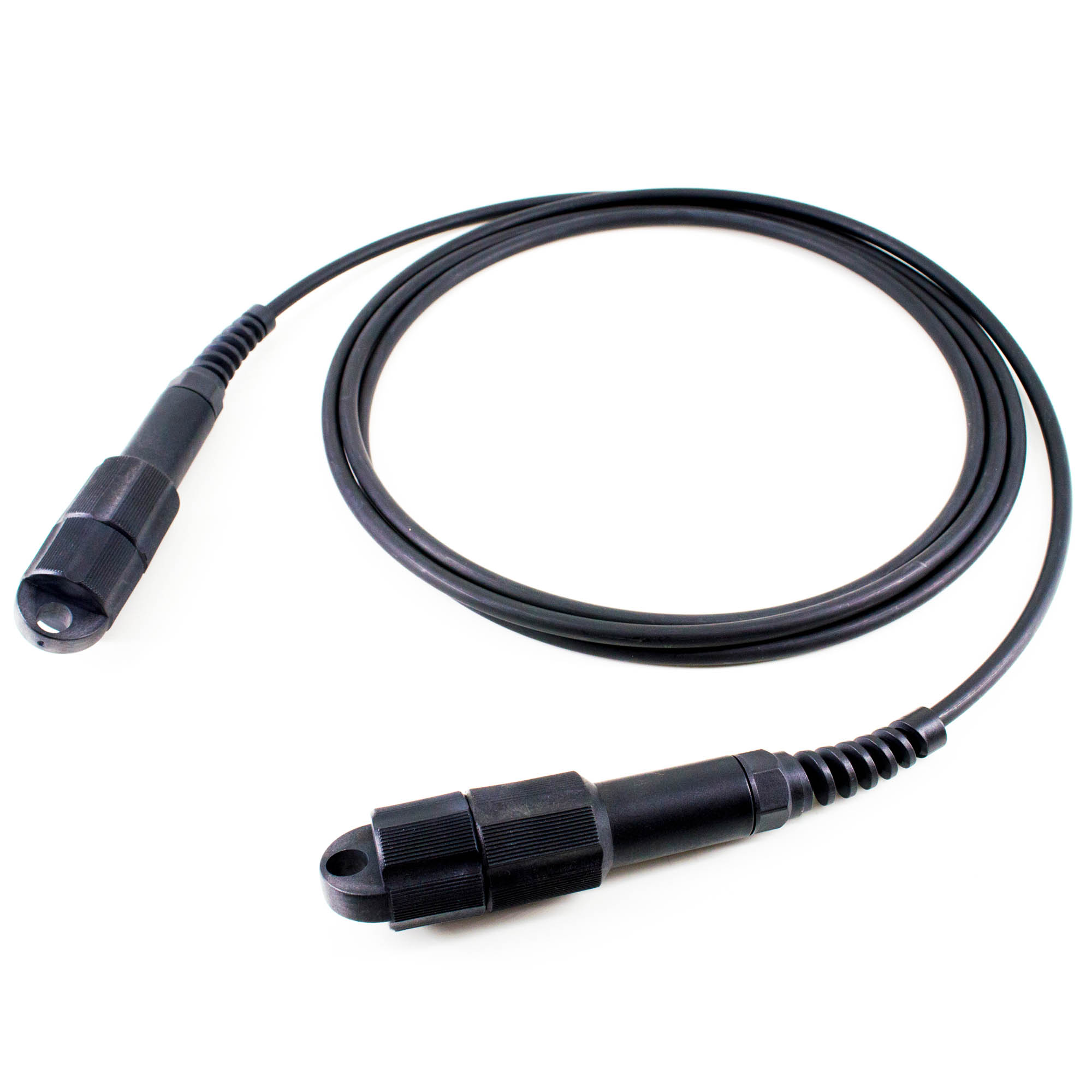

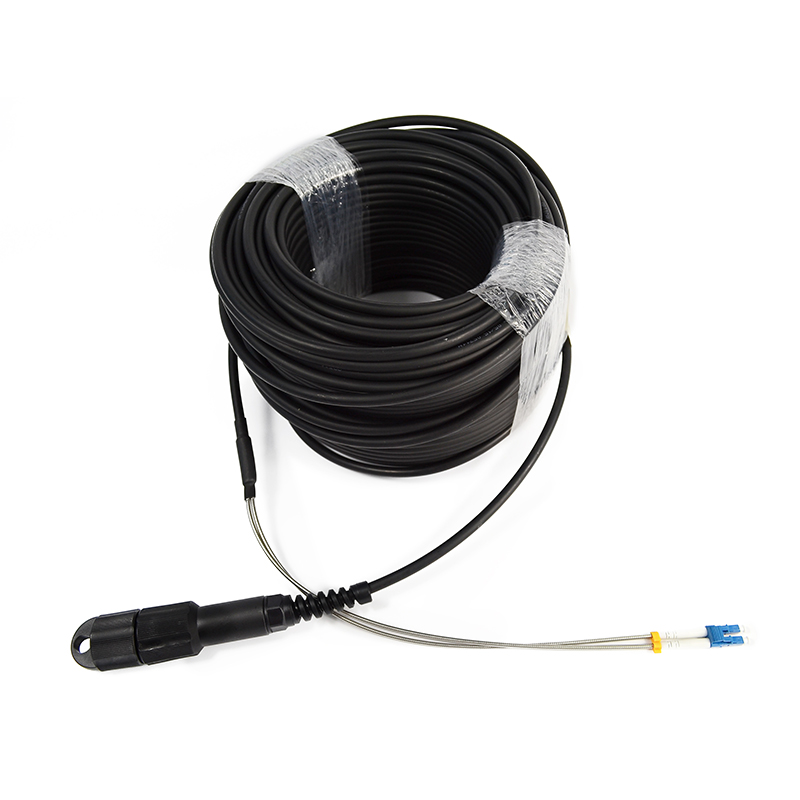

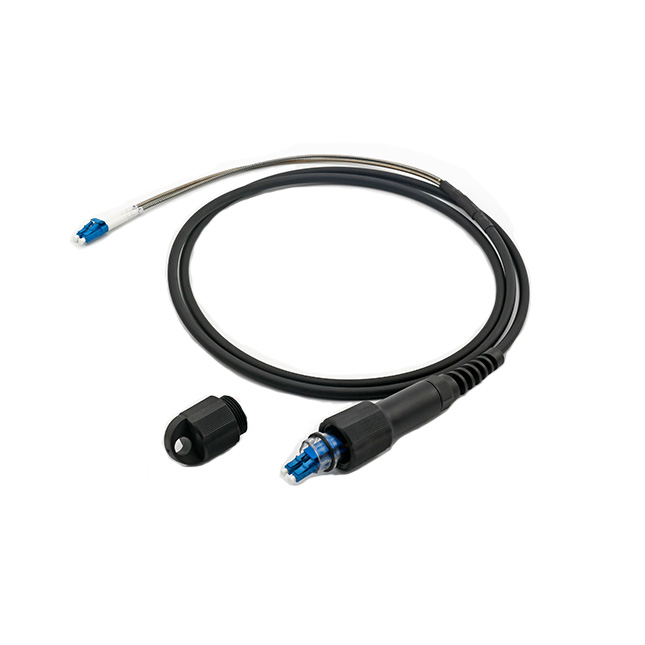

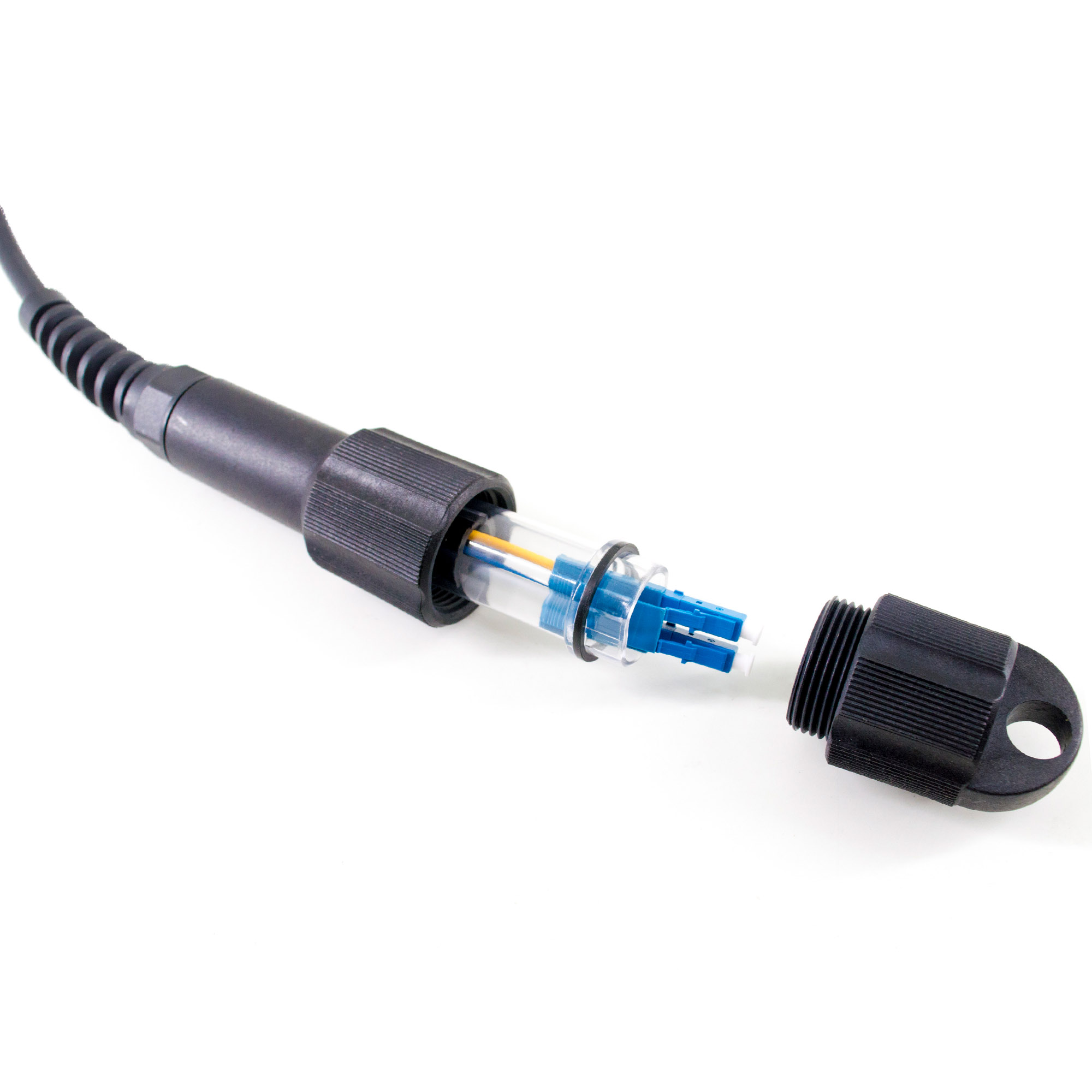

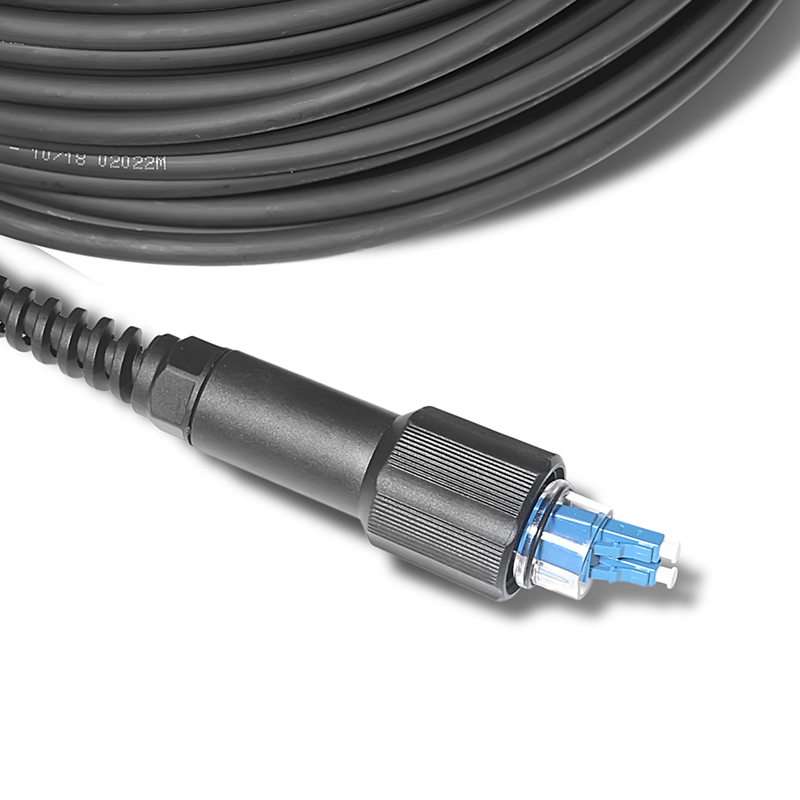

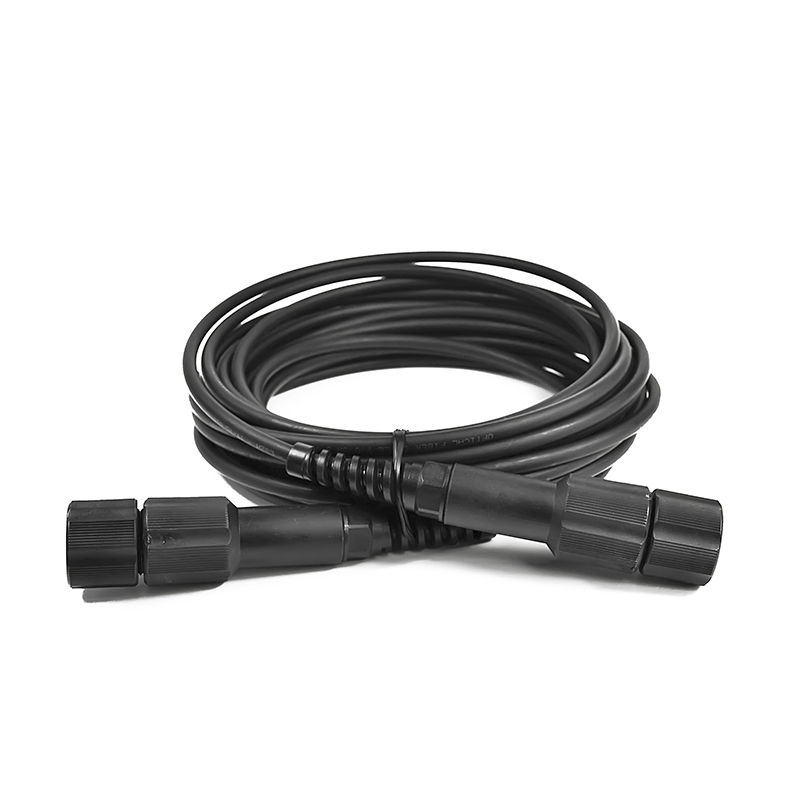

Product Photos:
