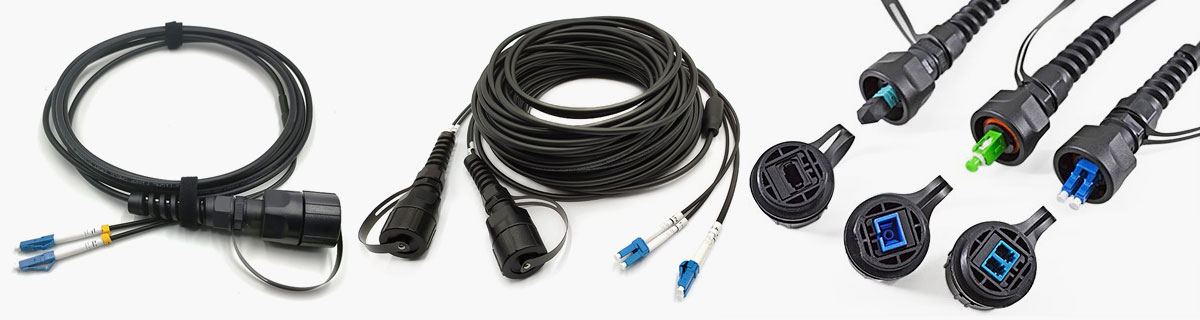

ODVA Outdoor Cable Assembly（SC,LC,MPO）
ODVA(Open DeviceNet Vendors Association) plug(RRU side) assemblies provide an environmental seal and mechanical protection for connections. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. ODVA provides quick installation solutions and has good performance on mating with SFP module. Cable can be Armored or Non-Armored. The industrial connector assembly has been ratified as a‘Standard Interface’in the ODVA as a next-generation industrial interconnect. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications. A single shutter, available in plastic or metal, is secured inside the adapter to cover connector ports and provide dust and laser protection for the internal fiber connection.
Overview:
Applications
- Applied in outdoor and severe environment
- Dust-proof and waterproof
- Applied on FTTA(Fiber to the Antenna)
Features
- Provides moisture and dust protection for use in harsh industrial environments
- IP67 protection, salt-mist proof, humidity proof, dust proof
- Sealed panel feed-through design for easy installation into enclosures
- 100% optically tested to ensure quality performance assemblies
- Available in single mode and multimode styles to work with any common fiber type
- Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
- Various connector option: LC、SC、MPO、MTP et
Technical Details:
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||

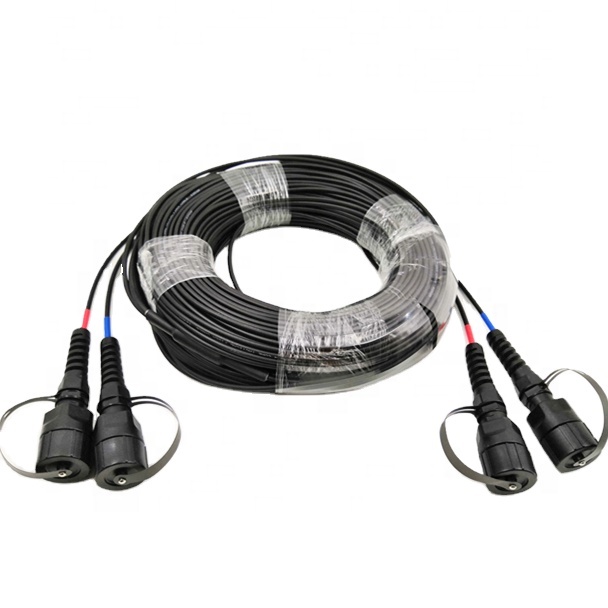

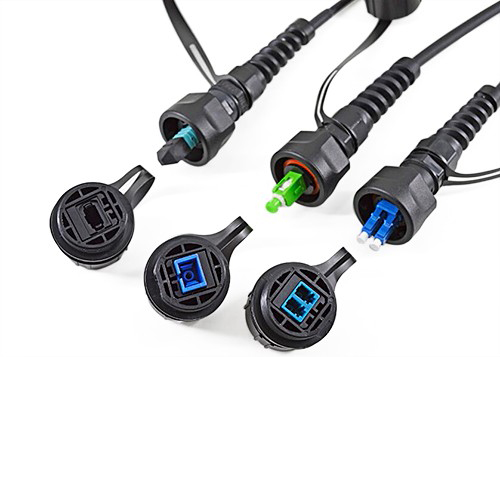

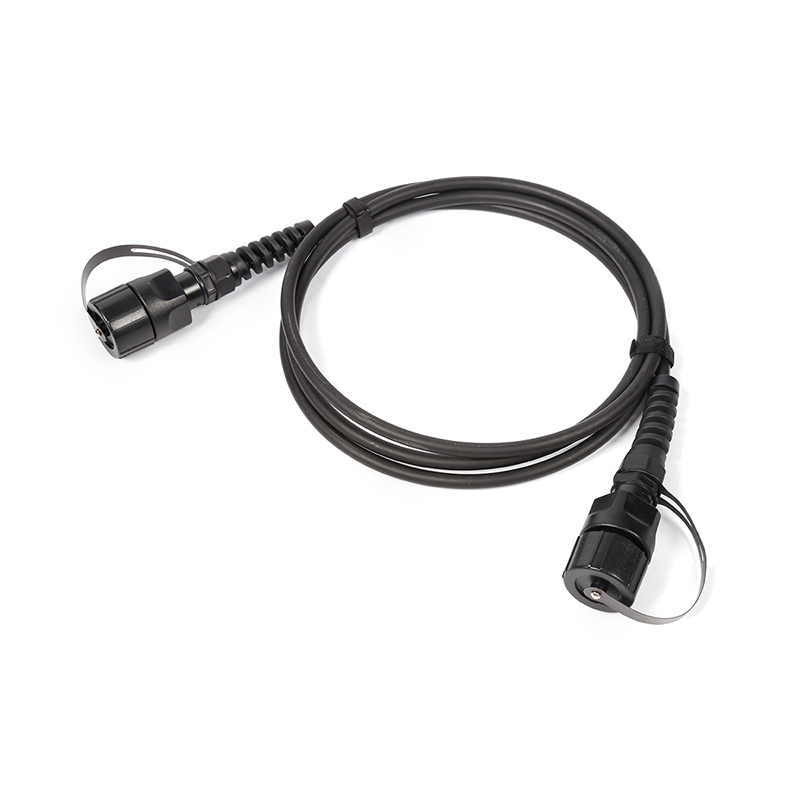

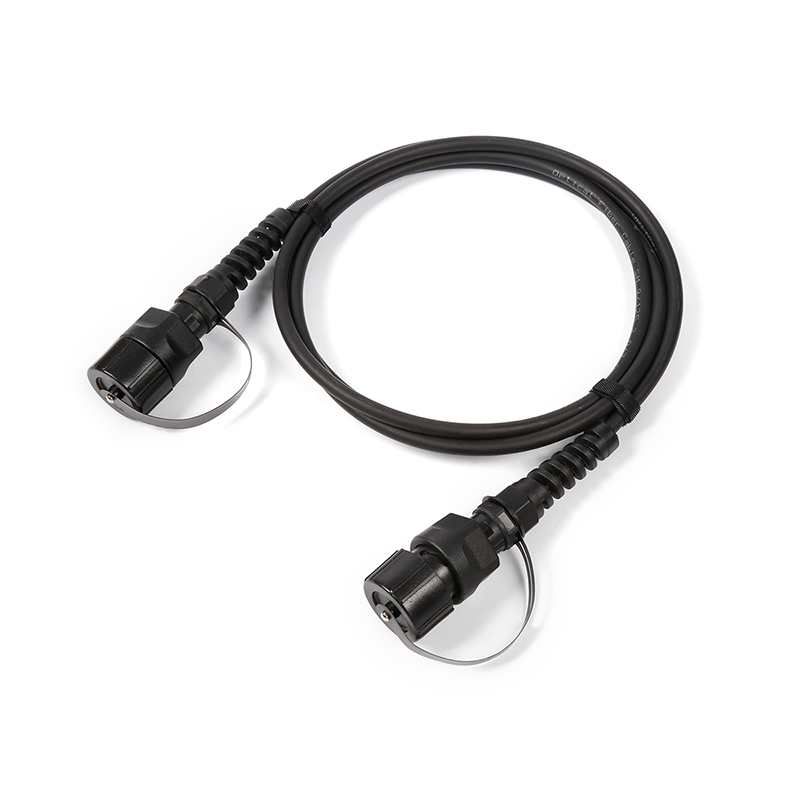

Product Photos:
