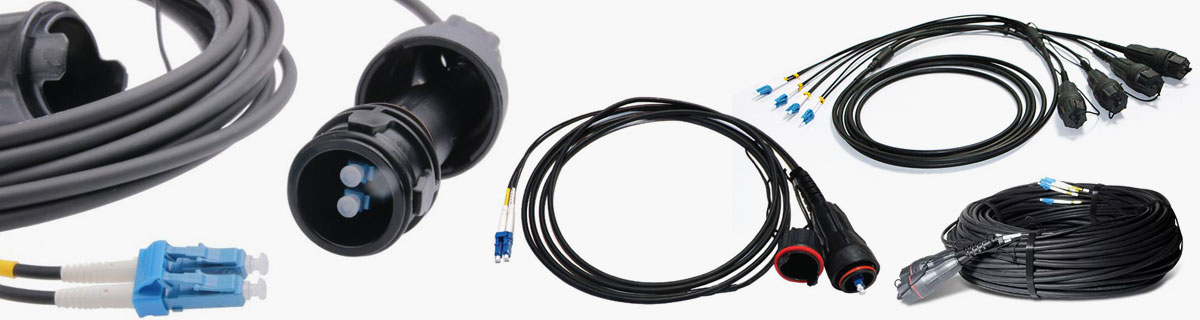

FULLX (LC) Outdoor Cable Assembly
FULLX/FullAxs Outdoor Fiber Cable Assembly,Next generation WiMAX and Long Term Evolution (LTE) Fiber/Power/Signal To The Antenna (FTTA) connectivity designs require rugged cable assemblies for outdoor use.
For direct connection, these cable assemblies need to plug directly into the optical transceivers or other connector types though a bulkhead construction.
For this specific application, the connector design will need to accommodate for a large tolerance in Z-direction. Furthermore, the connector shell must allow for easy one handed mating.
Overview:
Applications
- Multi-purpose Outdoor
- For connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
Features
- Open bulkhead for easy access to SFP
- IP67 water and dust protection
- Bulkhead cutout allows for removal of transceiver through the bulkhead
- No need to open remote radio head (RRH) for transceiver replacement
- Water proof, dust proof and corrosion resistant
- Plug has tolerance free design, free floating on Z-axis
Technical Details:
Type | SM-UPC | SM-APC | MM-UPC | |||
Typical | MAX | Typical | MAX | Typical | MAX | |
Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
Return loss | ≥50dB | ≥60dB | ≥30dB | |||
Durability | 500 mating cycles | |||||
Working temperature | -40 to + 85℃ |

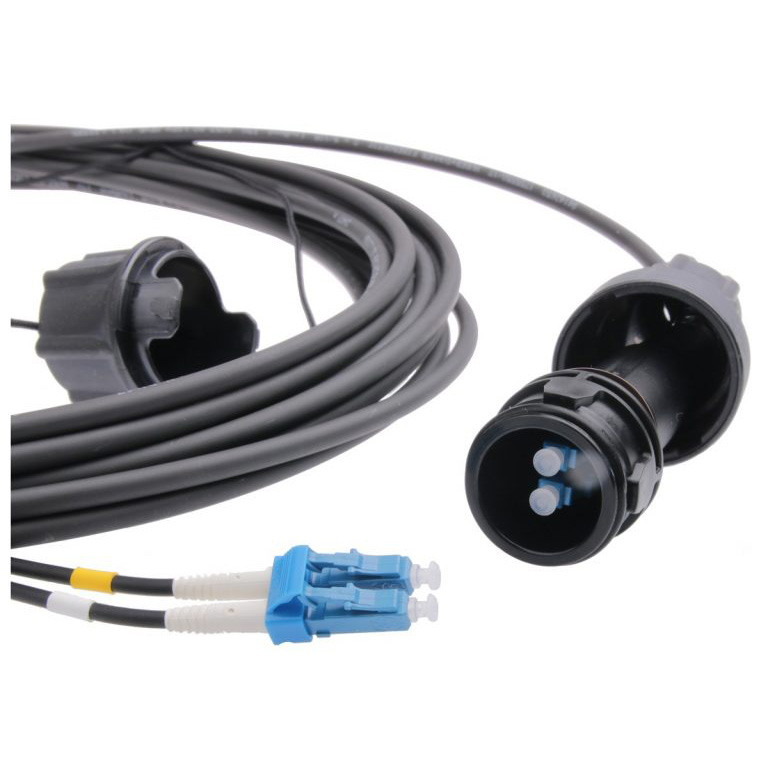

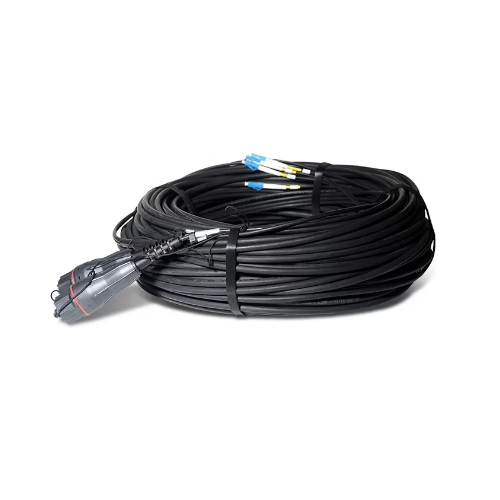

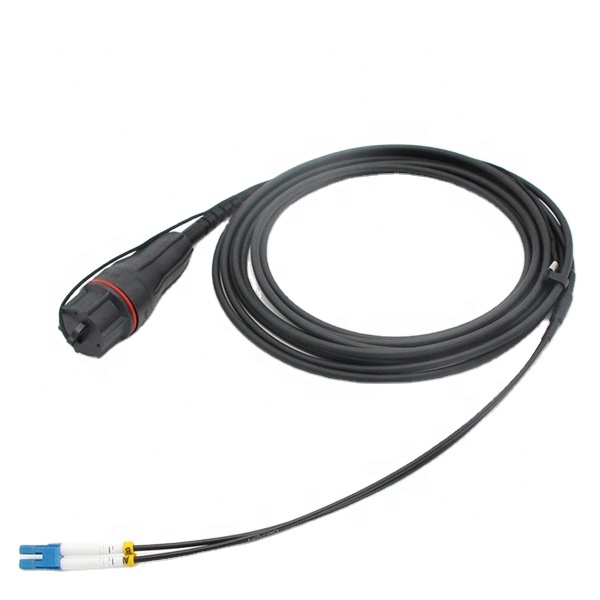

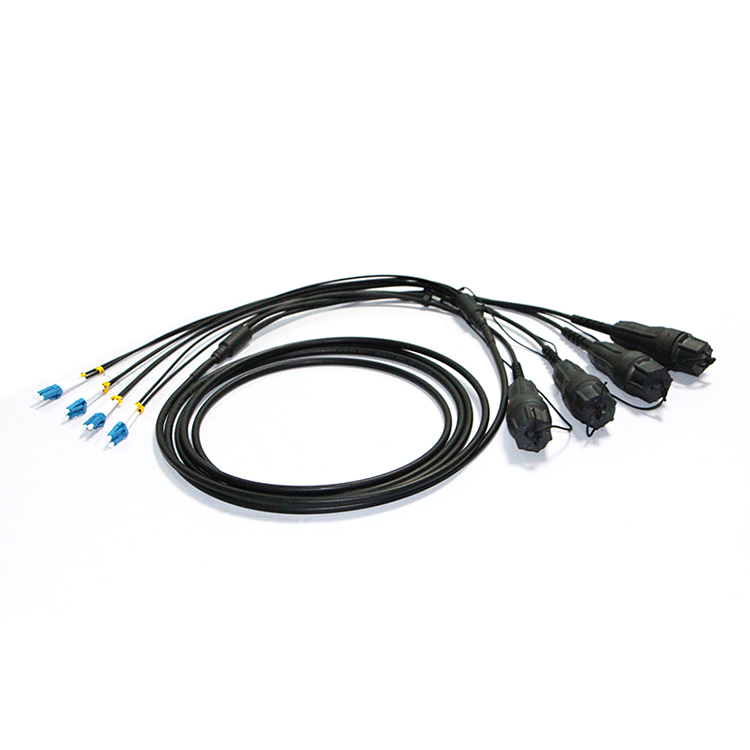

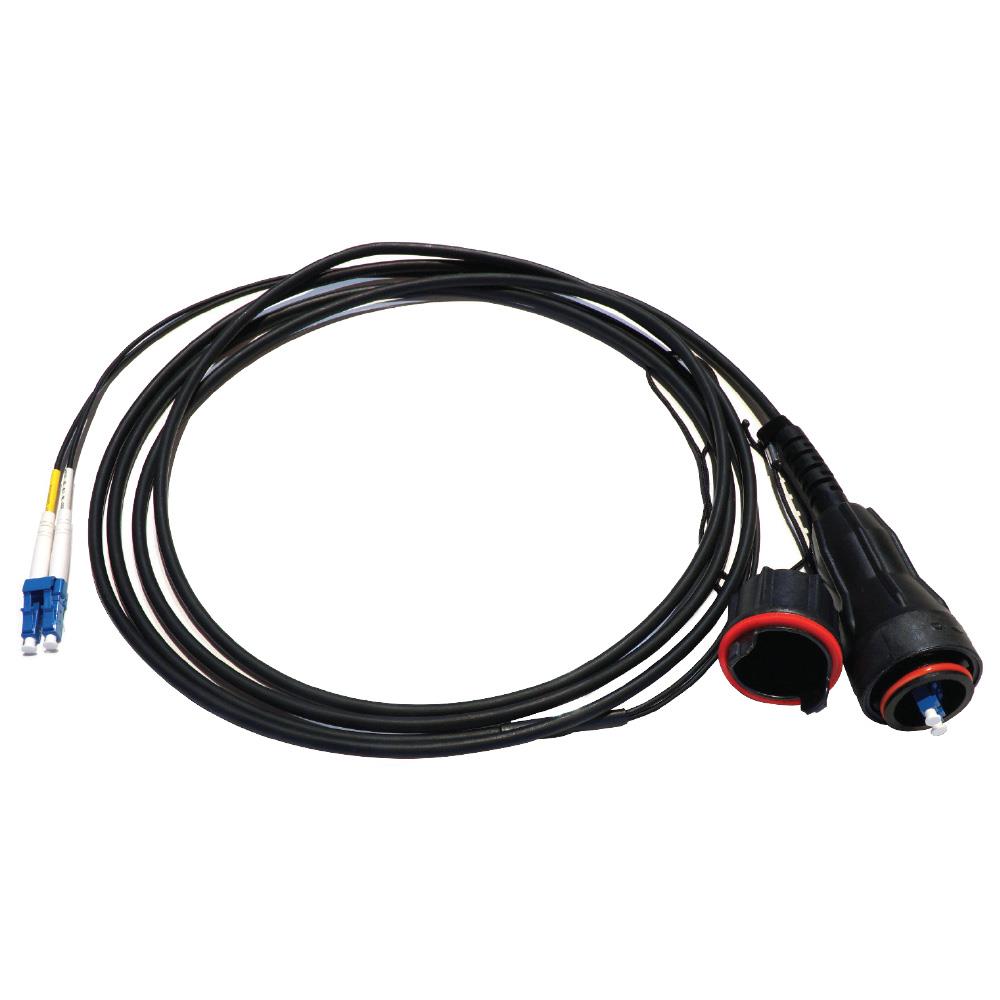

Product Photos:
