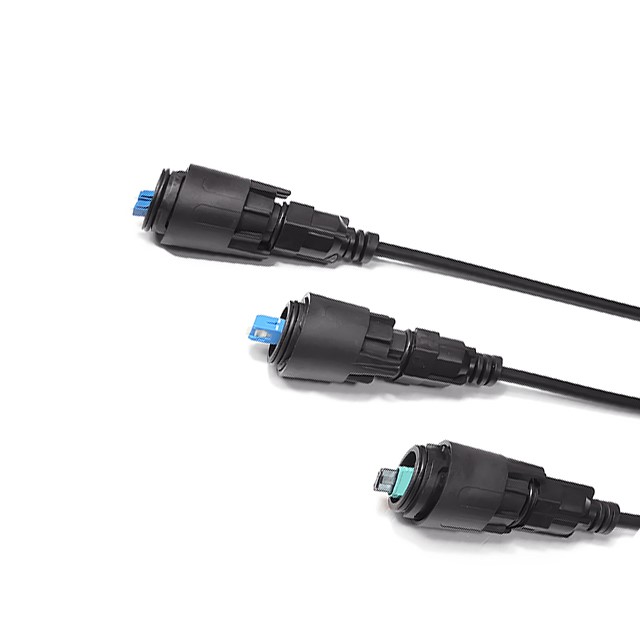

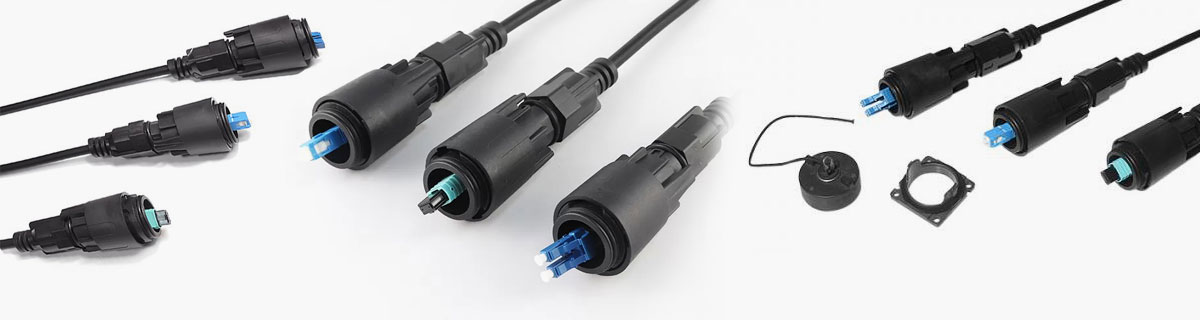

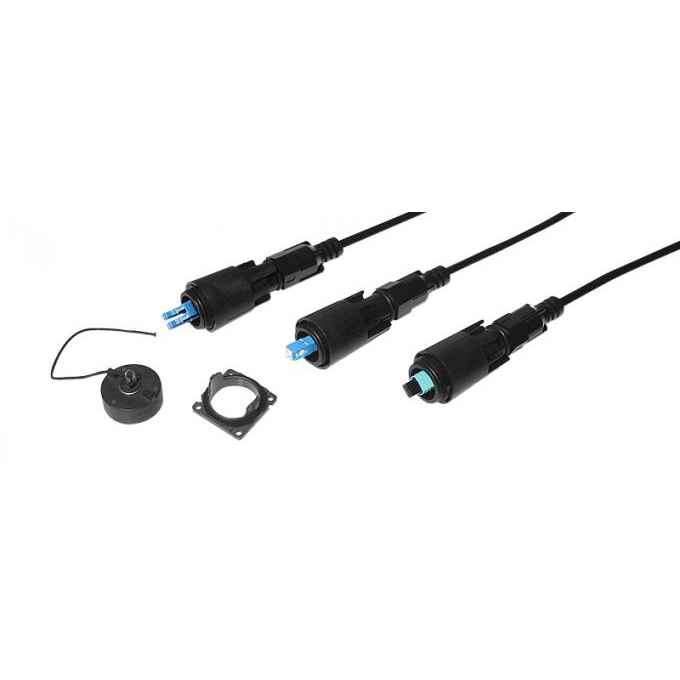

IPFX (SC, LC, MPO) Outdoor Cable Assembly
GKoptic’s IPFX Connector for Outdoor Cable Assembly Applications (SC, LC, MPO) provides high performance and cost effective cable assemblies for outdoor environments. They are factory terminated (tested cables) or field installable version.
Overview:
Applications
- Multi-purpose Outdoor
- For connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
Features
- Factory terminated (tested cables) or field installable version available
- Pre-fitted with the IPFX receptacl
- Water proof, dust proof
- IP67 water and dust protection
- Designed to meet 150N cable retention
Technical Details:
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
Product Photos:
