H optic (SC/APC) Outdoor Cable Assembly
Optitap H Connector Fiber Optic Cable assemblies (patch Cord) provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H-Connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H-Connector provides an ideal solution for direct burial, conduit, or aerial installations.
Overview:
Applications
- FTTH
- Outdoor Areas
- Harsh Environment
Features
- Single fiber, SC-based connector
- Bird proof and rodent resistant
- IP67 water and dust protection
- Low profile in-line receptacle available
- No installation tools required
- In-line connection available
- Cable diameter Range: 2.0 mm, 3.0 mm, 4.8 mm to 7 mm
Technical Details:
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||

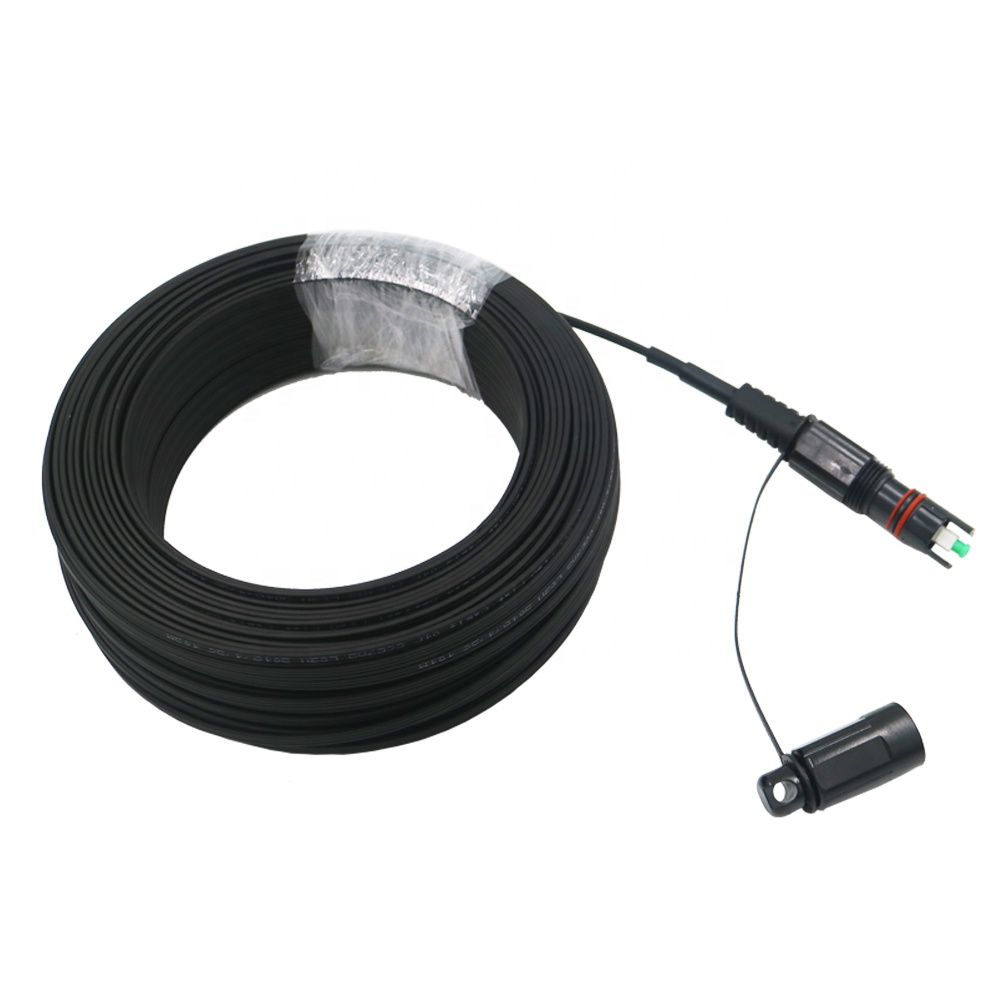

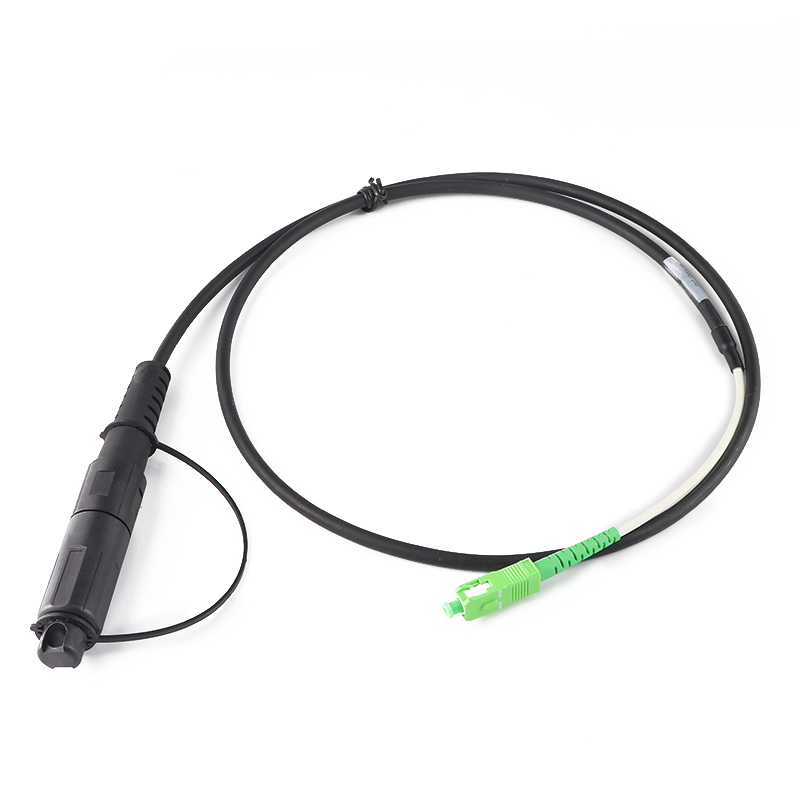

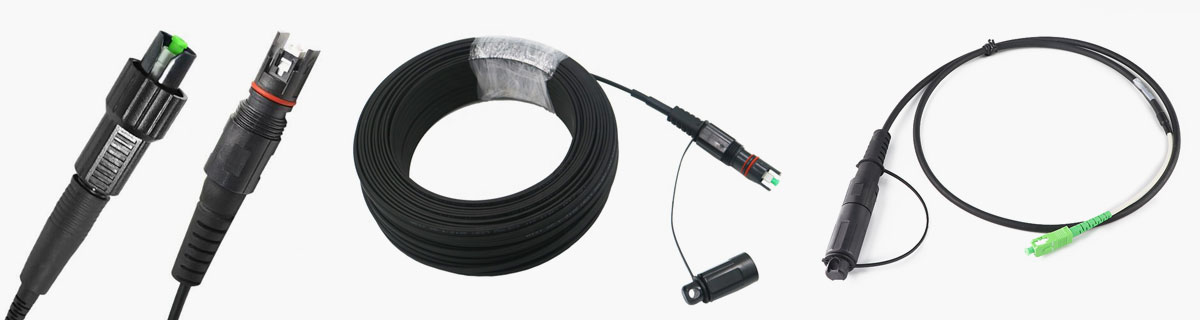

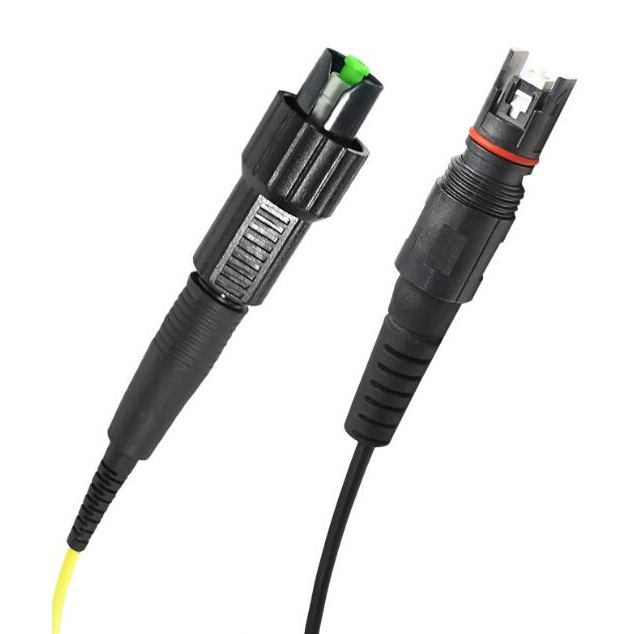

Product Photos:
