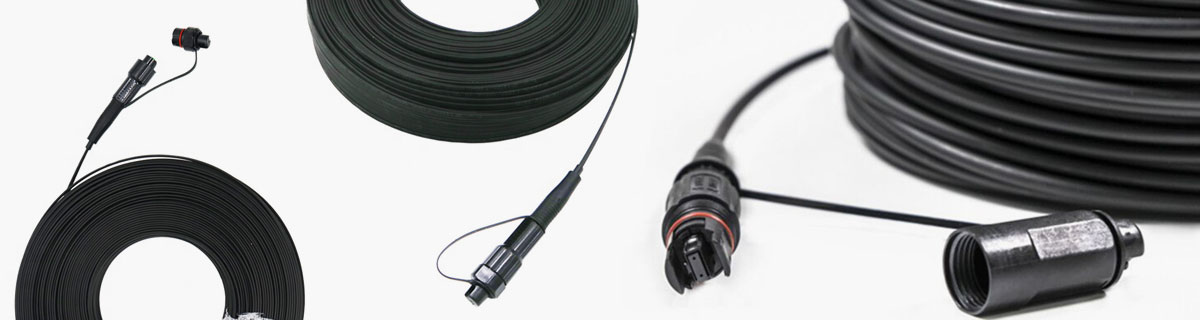

Mini IP(LC,SC,MPO) Cable Assembly
GKoptic outdoor filed installable Reinforced Mini IP Series connector are factory -terminated, environmentally sealed and hardened connector toreduce the cost and the time of drop cable deployment in optical access networks. The outdoor field installable reinforced connector is mainly used in outdoor connection of the optical transmitter, they are widely used in data transmission network.
Overview:
Applications
- Fiber optic communications in harsh outdoor environments
- Outdoor communication equipment connection
- Waterproof fiber equipment SC port
- Remote wireless base station
- FTTx wiring project
Features
- IP-67 water and dust protection
- Provides superior weather resistance for FTTA and other outdoor applications.
- Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
- Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
- Can be installs without special tooling
- Threaded style coupling
- Provides bend protection for installation and long term use
- Faster network roll out and customer installations
- 100% tested assemblies built in a controlled environment
- Lower cost deployment by utilizing plug and play solutions
- Custom built solutions with quick turnaround times
Technical Details:
| Product type | Mini IP/SCX-SC Patchcord / Mini IP/LCX-2LC Patchcord / Mini IP/MPOX-12LC Patchcord | |||||
| Connector Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||

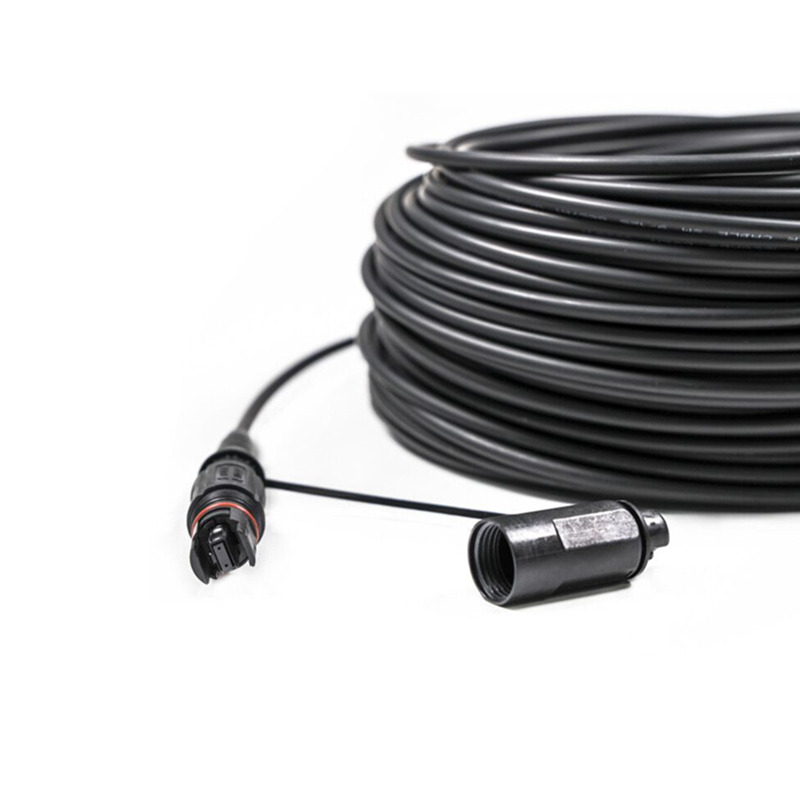

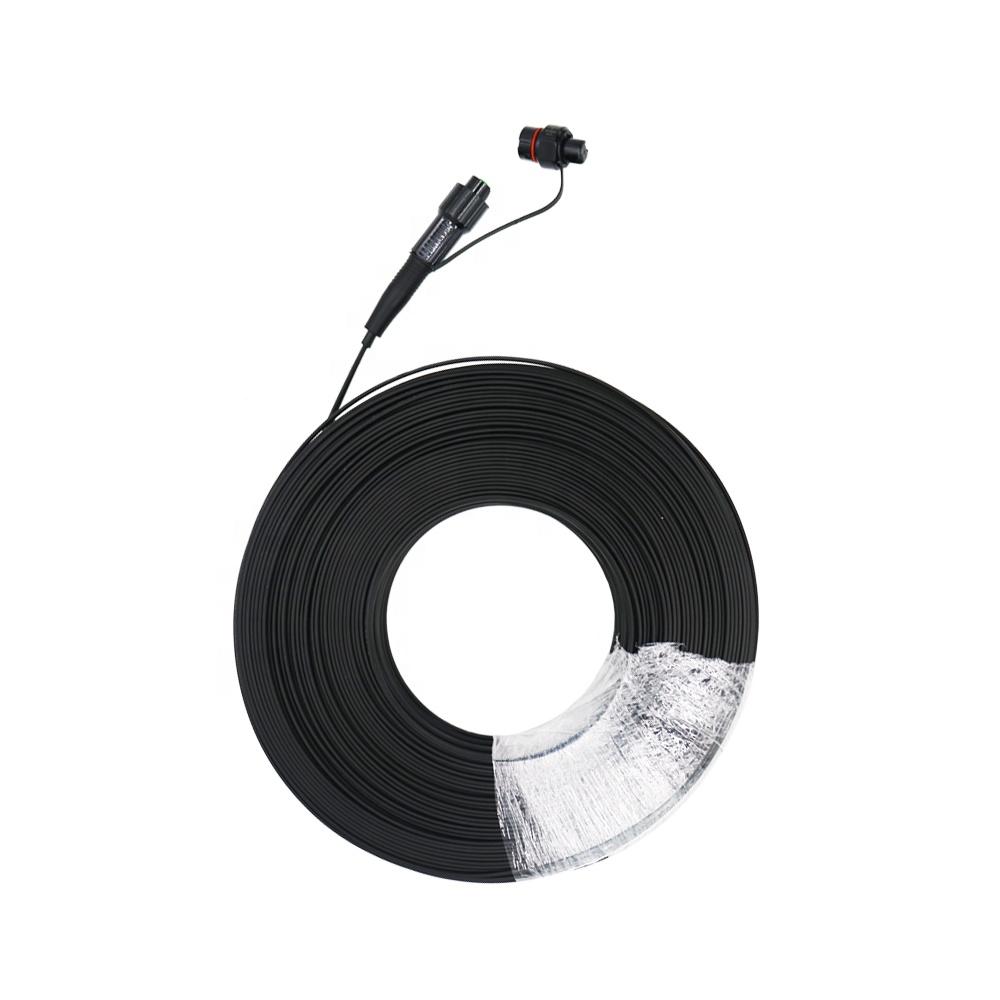

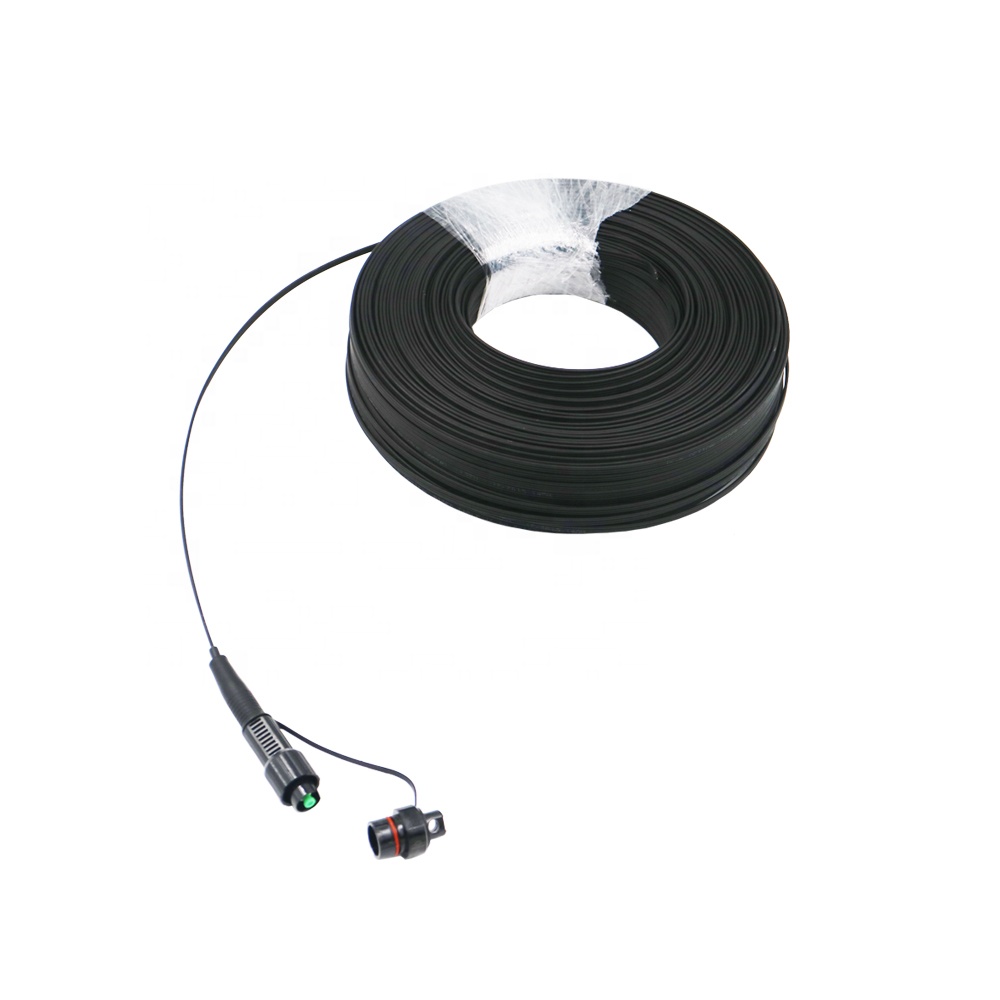

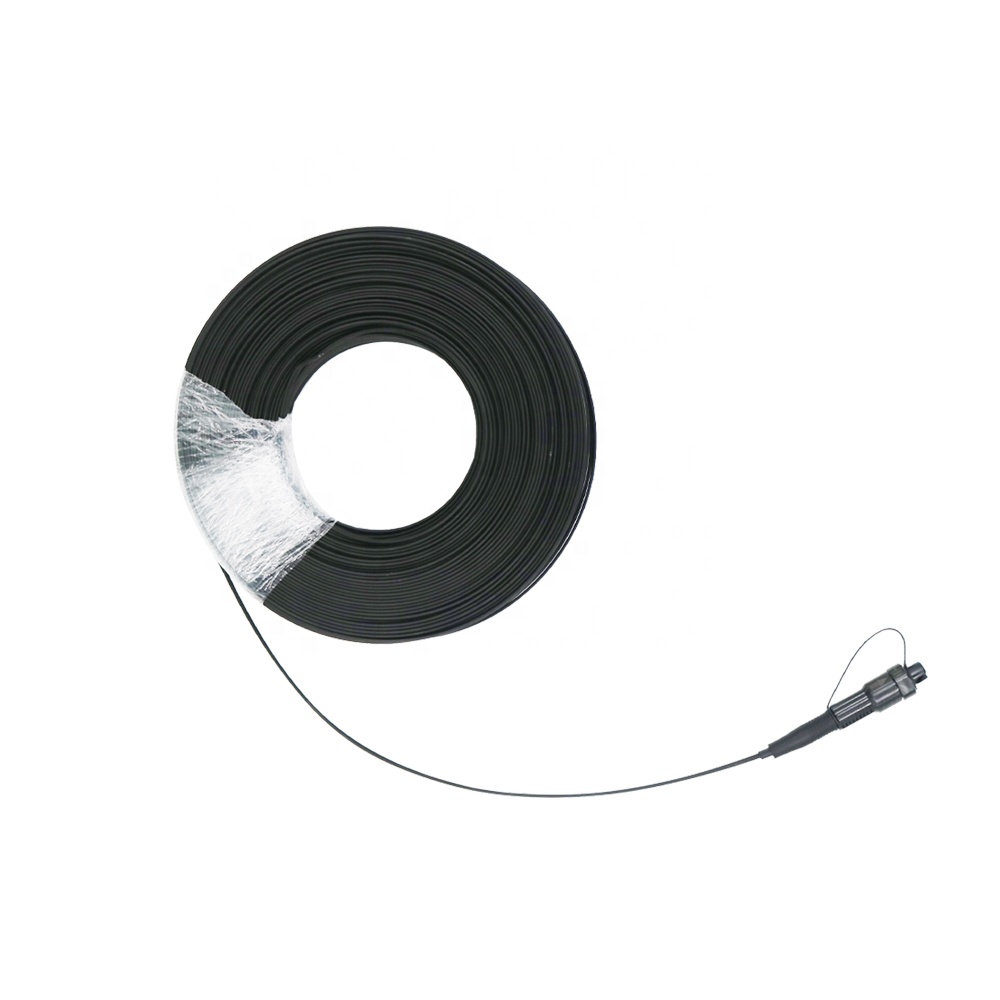

Product Photos:
