SC Auto Shutter Patchcord
SC Auto-shutter patchcord is the perfect fit for in-house fiber network with sophisticated dust and laser protection mechanism. Easy to plug in/out, both shutters on connector and adapter can be opened and closed automatically when the connector is being plugged into or pulled out of the adapter, rightly avoiding dust or other contamination and eliminating safety concerns caused by laser contact.
Overview:
Applications
- Optical fiber communication systems engineering
- Fiber optic data communication network
- Fiber CATV, FTTH engineering
- Other optical technology tests
Features
- Low insertion loss and added loss
- High stability, high reliability,height of attenuation
- High back loss, small volume, light weight
- Shutters open and close automatically
- SC Auto-door connector can be used with a regular SC adapter
- Offers highest level of dust and laser protection available
- Connector design conforms to human engineering, easy to handle
- Suitable for optical cable diameter:2.0mm,3.0mm
- Meets with RoHS and reach
Technical Details:
| Connector Type | SC to SC | Polish Type | APC to APC |
| Fiber Mode | OS2 9/125μm | Fiber Count | Simplex |
| Fiber Grade | G.657A | Minimum Bend Radius (mm) | 30D (Dynamic/Static) |
| Cable Diameter | 3.0mm | Cable Jacket | PVC/LSZH |
| Cable Color | Blue | Fiber Cords Structure | Single Armored, Stainless Steel Tube |
| Tensile Loads (Long Term) | 400 (N) | Tensile Loads (Short Term) | 600 (N) |
| Insertion Loss | ≤0.3dB | Return Loss | ≥65dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |

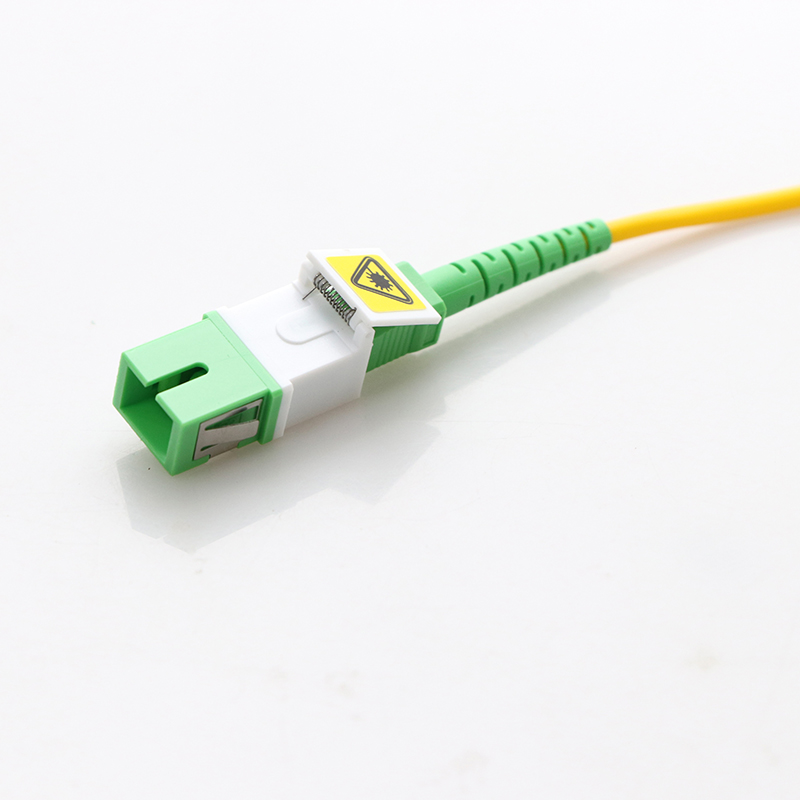

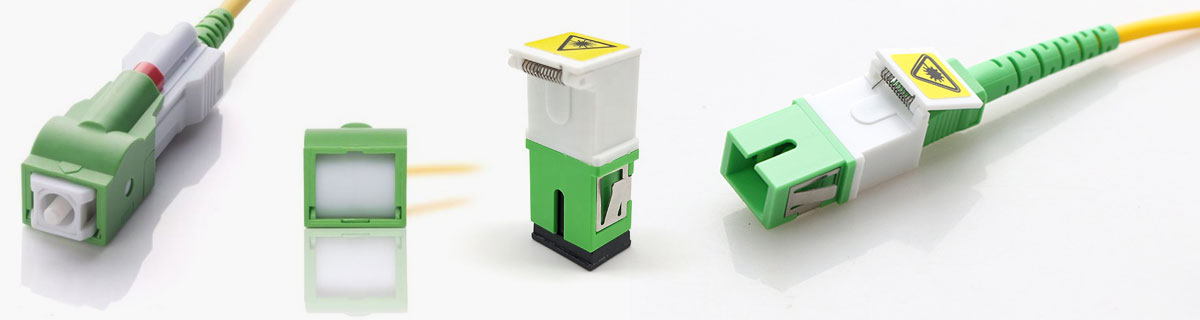

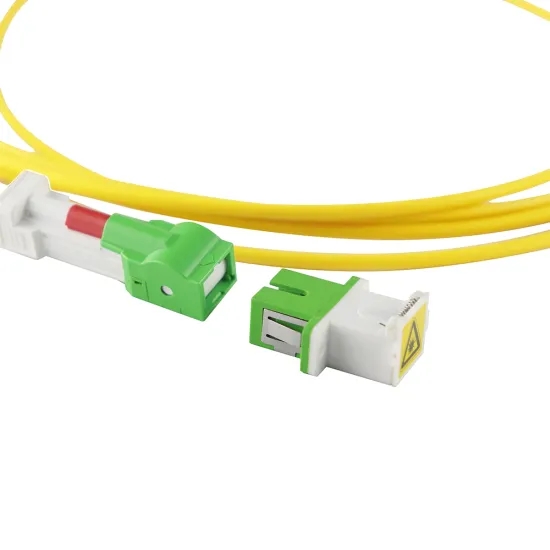

Product Photos:
