Fiber Optic Pigtail
GKoptic supplies fiber optic pigtails, with very competitive prices. We offer 3 primary fiber versions including the 9/125um single mode, 62.5/125 multimode and 50um OM3 10Gb types, these fiber pigtails are made with a premium grade jacket with LC, SC, ST, and FC connectors and with typical 0.9mm outer diameter cables. Simplex fiber pigtail and duplex fiber pigtails are also available, with different cable color, cable diameter and jacket types are optional.
Overview:
Applications
- Tele communication
- Data communication
- Local Ares Networks(LANs)
- FTTx Deployments
- Testing Instruments
- CATV Links
- LTE/3G
Features And Options
- Multimode & singlemode connectors SC, FC, ST, LC, MU, MTRJ, E2000
- Ultra polished connectors(UPC) and angle polished connectors(APC)
- Available at OS1, OM2,OM3,OM4.
- Available at 1M, 2M,3M,5M,10M,XXM.
- 4 cores,8 cores,16cores,32cores breakout versions
- OFNP plenum jacket Or LSZH Jacket.
- Full traceability & test certificate supplied with each assembly
- 100% tested for Insertion loss and return loss
- Bend insensitive fibers of G657A/B
- OM4 fibers 10 Gigs at 550 meters
- Any color of cable jacket and connectors available
- Cable printing
- Private labeling or OEM packaging
Technical Details:
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -40℃~+60℃ | ||
| Storage Temperature | -45℃~+85℃ | ||
| Fire Resistant | IEC 60794-2-30 | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
| Fiber type | Single mode: | (1)9/125-G652D | (2)9/125-G655 | (3)9/125-G657A,G657A2 | (4)9/125-G657B3 | |
| Multimode: | (5)50/125-OM2 | (6)62.5/125-OM1 | (7)50/125-OM3 | (8)50/125-OM4 | (9)50/125-OM5 | |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||||
| Cord type | Simplex ,Duplex | |||||
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||

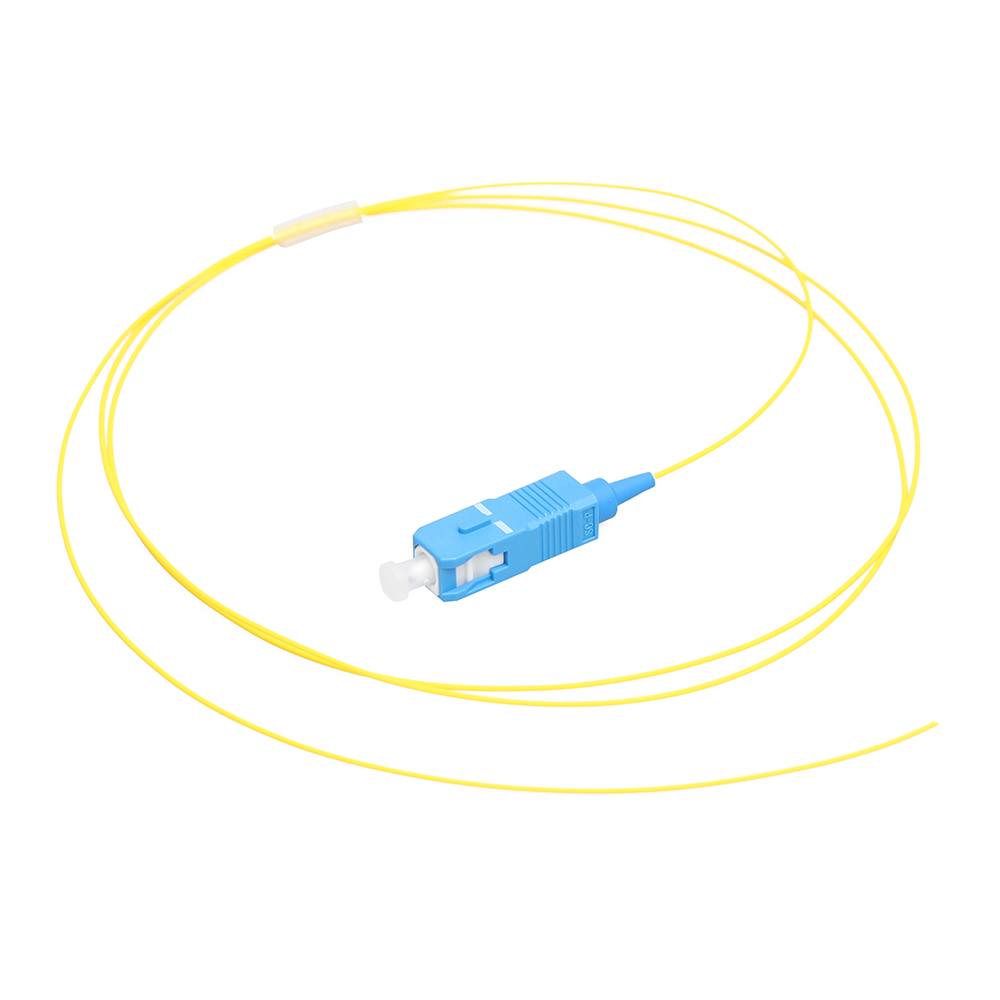

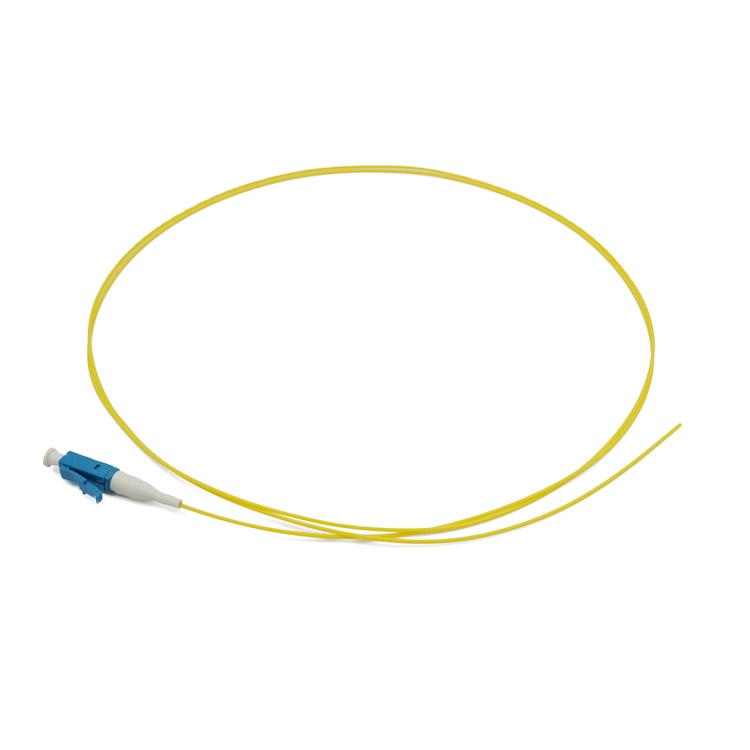

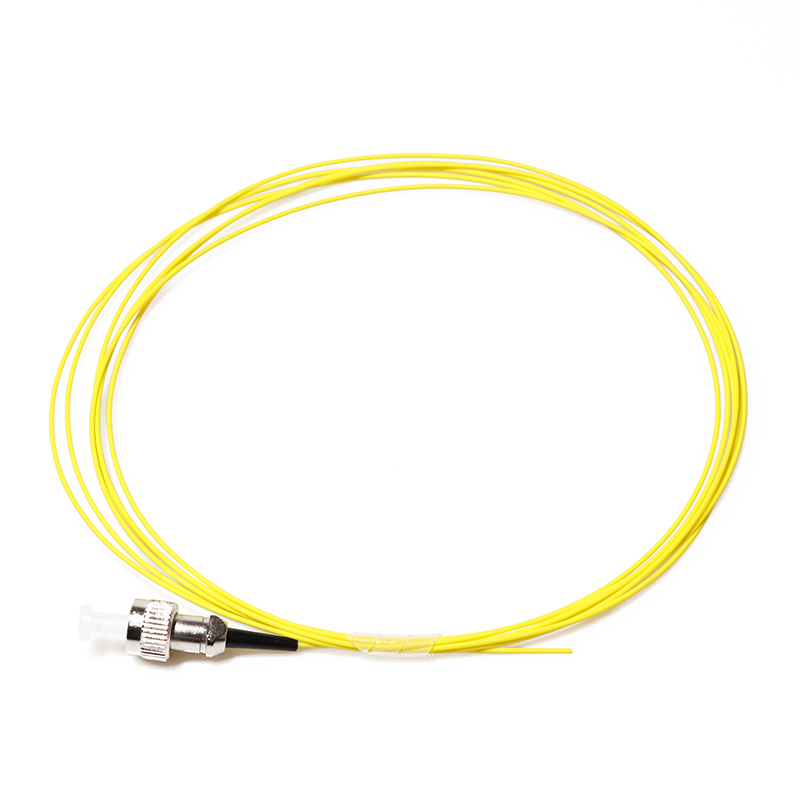

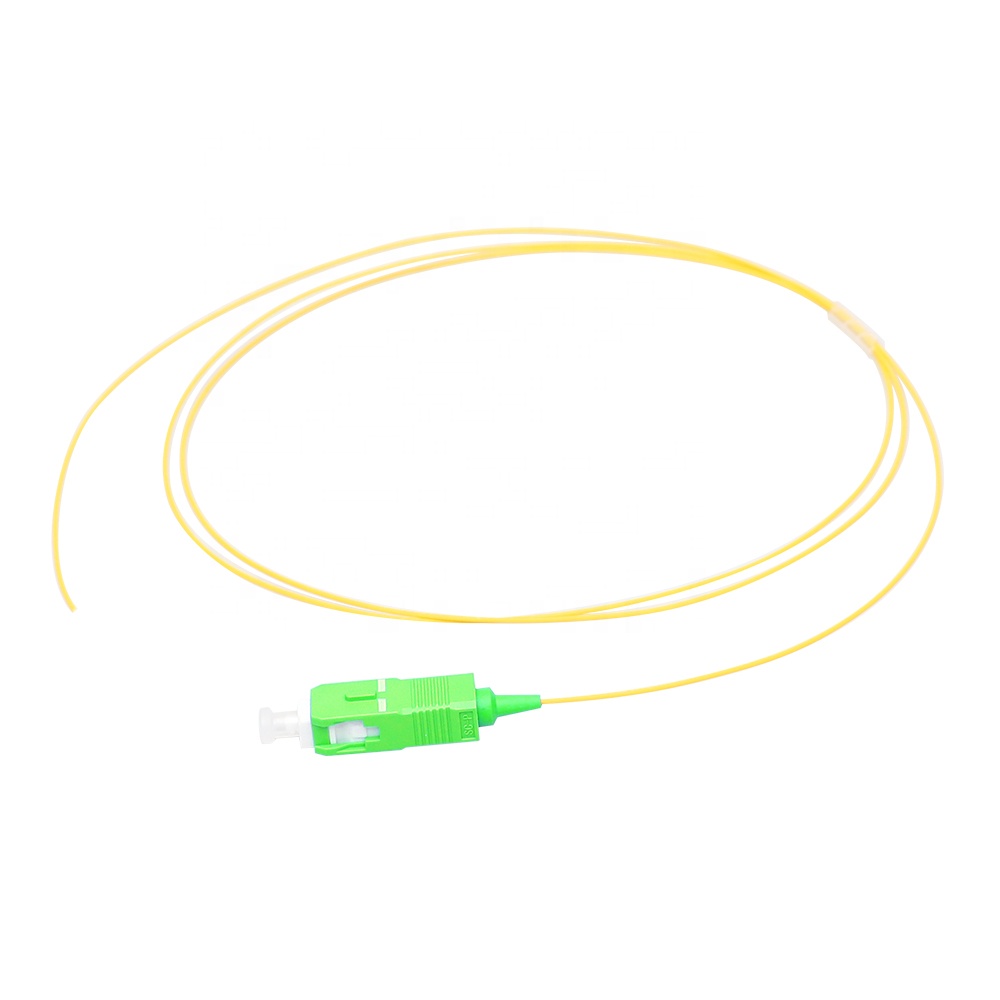

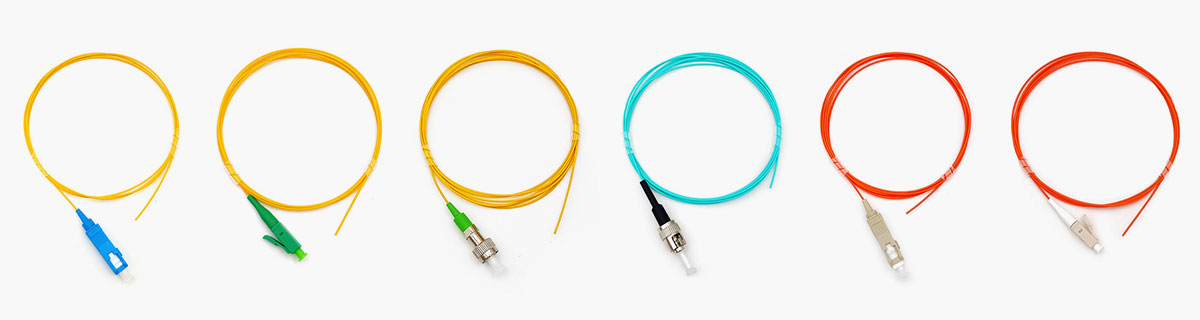

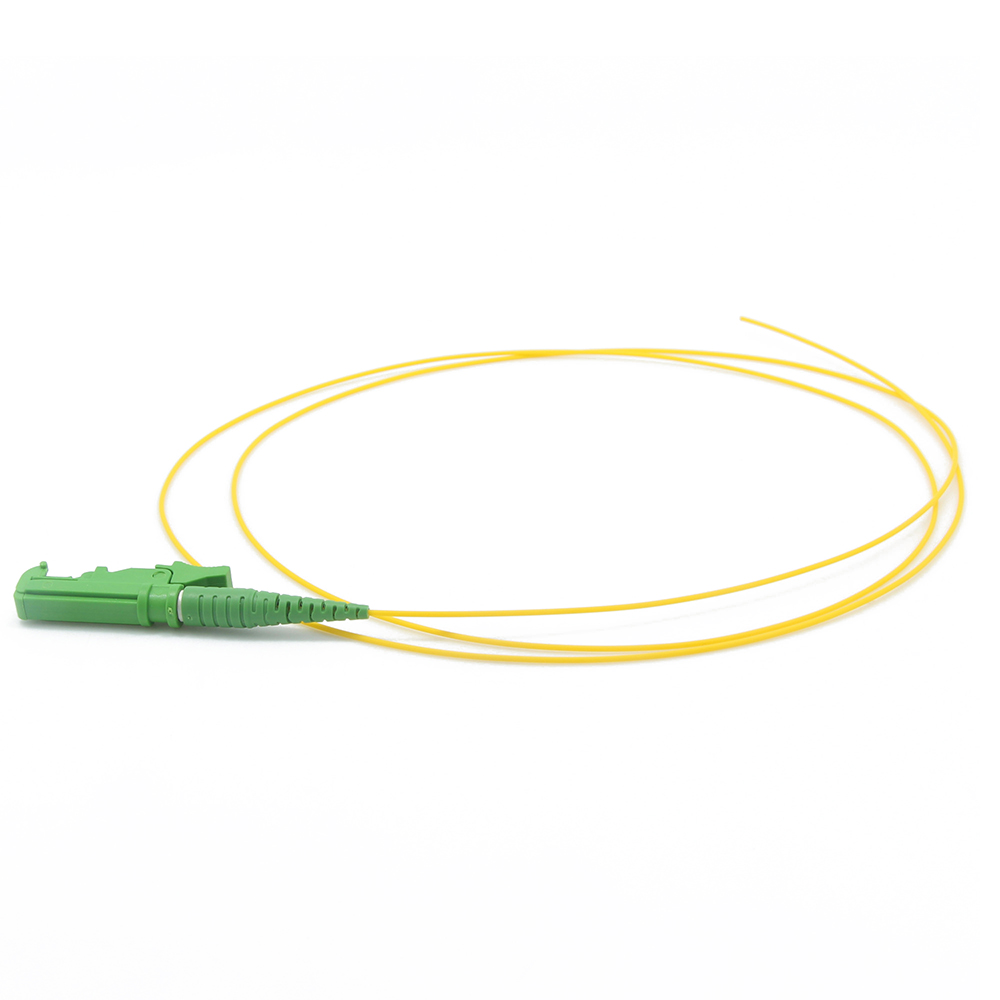

Product Photos:
