Fiber Optic Pigtail Packs

Fiber Optic Pigtail Packs

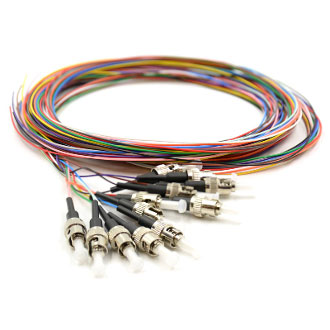

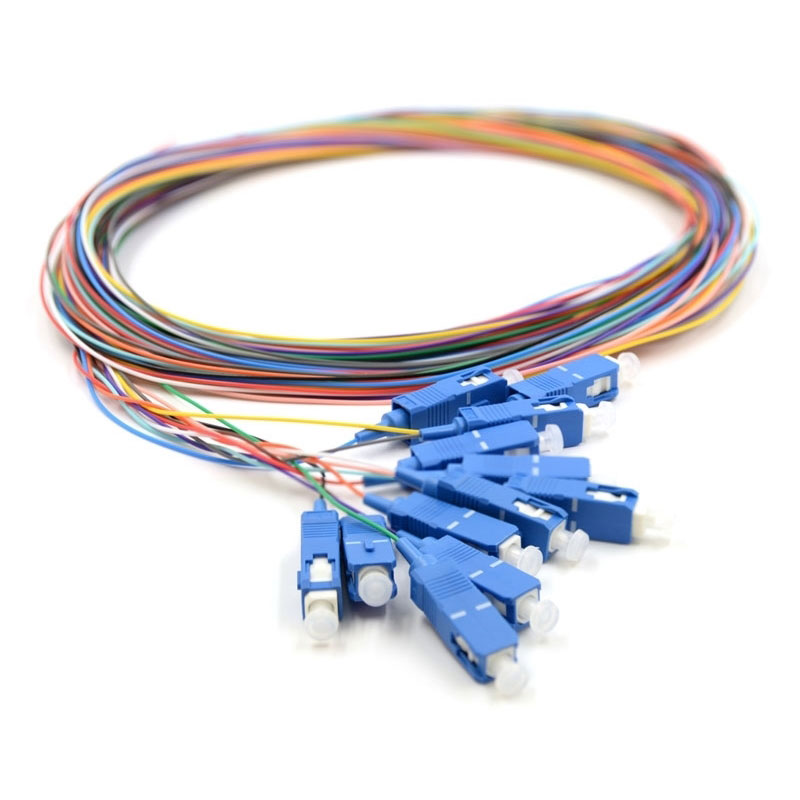

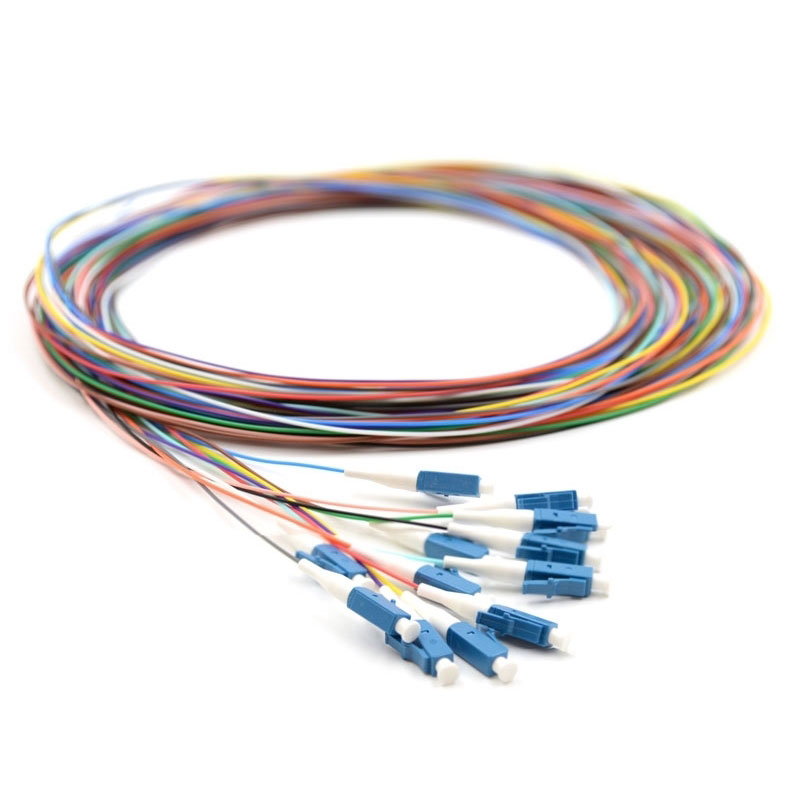

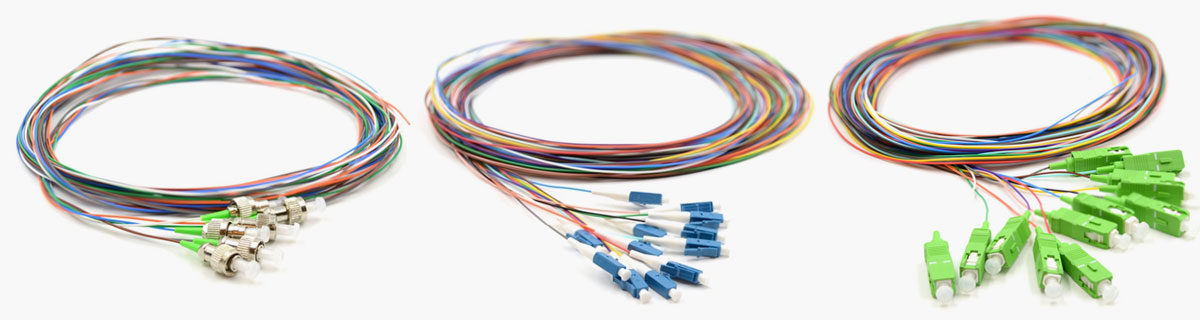

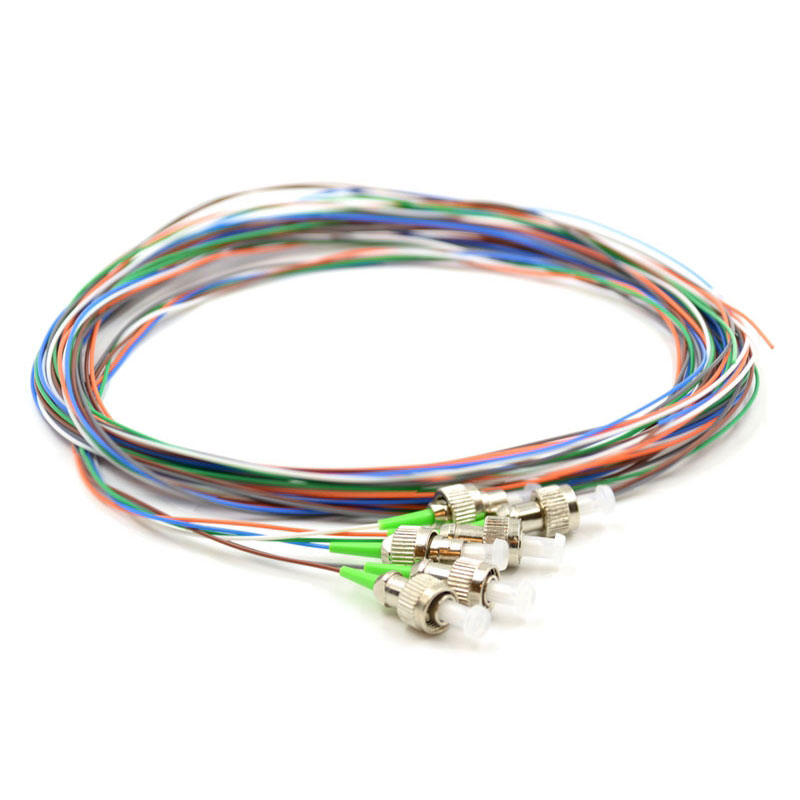

Our ready-to-splice, fiber optic pigtail packs are available in sets of 6 or 12 fibers. Each connector is color coded to TIA Standards. Each connector end is factory polished and the typical insertion loss is less than .30 dB. They are available in Singlemode and Multimode (OM1, OM2, OM3, OM4) with ST, SC, LC, or FC connector types.

Overview:

Applications

  • Telecommunications
  • CATV, LAN, MAN, WAN, Test &Measurement
  • Military industry
  • Medical

Features

  • 6 Strand& 12 Strand Color Coded Fiber Pigtail Packs
  • Standard Pigtail Packs are 3 Meters in Length
  • Low Insertion Loss
  • Available in Singlemode APC and UPC
  • Available in Multimode OM1, OM2, OM3 or OM4
  • Availabe with ST, SC, LC or FC connectors

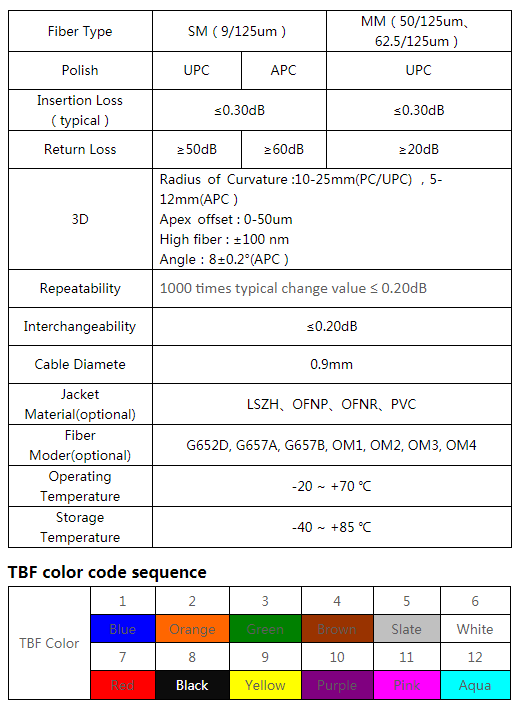

Technical Details:

Fiber Optic Pigtail Packs

Product Photos:
