FTTH Drop Cable Patch Cord
It’s a kind of patch cable but assembly with FTTH Drop Cable. This is a last cable in FTTH project. Used widely between Fact plate, terminal box, ONU tec. With easy accessibility to the fiber and simple installation, FTTH drop cable can be directly connected to the homes. It is suitable for connecting with communication equipment and used as access building cable in premises distribution system. The optical fibers are positioned in the center of cable and two parallel Fiber Reinforce Plastic (FRP/KFRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. Also, customers can specify your required connectors.
Overview:
Applications
- Access Networks
- LAN (Local Area Network)
- Fiber Optic Communication System
- FTTH (Fiber to The Home) Indoor Building
- Optical fiber connected and transmitted equipment
Features
- Low insertion loss, high return loss
- Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm
- Connector Types: LC, FC, SC,ST for option
- Fiber Mode: G652D, G.657A1, G657A2, G657B3
- Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
- Compliant to IEC standard
Technical Details:
| Fiber Type Various | SM | MM | |
| Connector Type | FC, SC, ST, LC, MU | FC, SC, ST, LC, MU | |
| Insertion Loss (Typical) | ≤0.3dB | ≤0.3dB | |
| Return Loss (typical) | PC | ≥50dB | ≥35dB |
| UPC | ≥55dB | ≥35dB | |
| APC | ≥65dB | ||
| Mating Durability | ≤0.2dB | ||
| Storage Temperature | 40℃～+ 80℃ | ||
| Durability | ≥1000 times | ||
| Working Temperature | – 20℃～+ 80℃ | ||

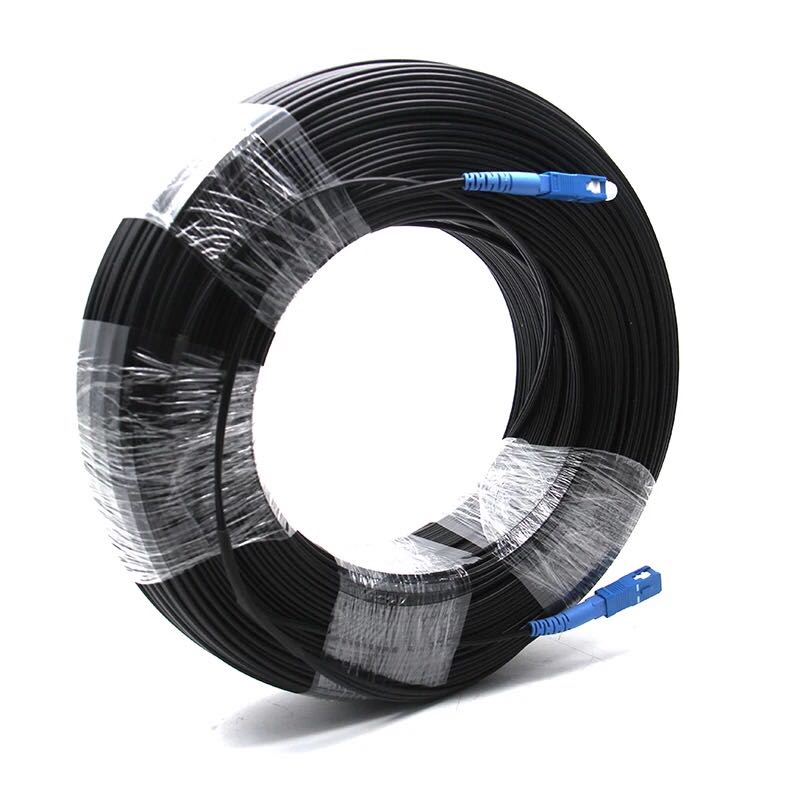

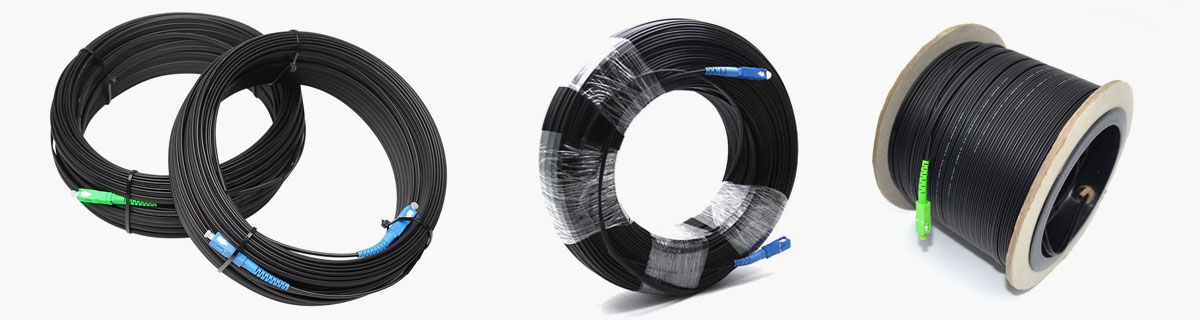

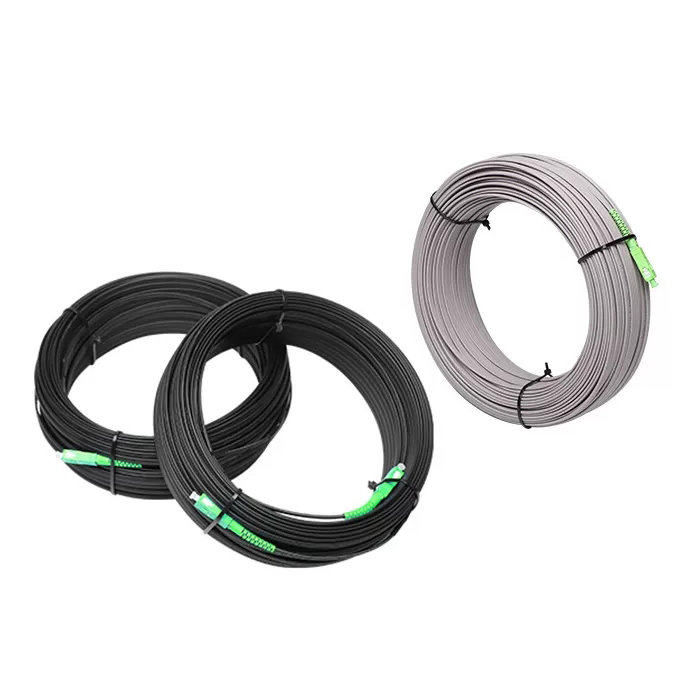

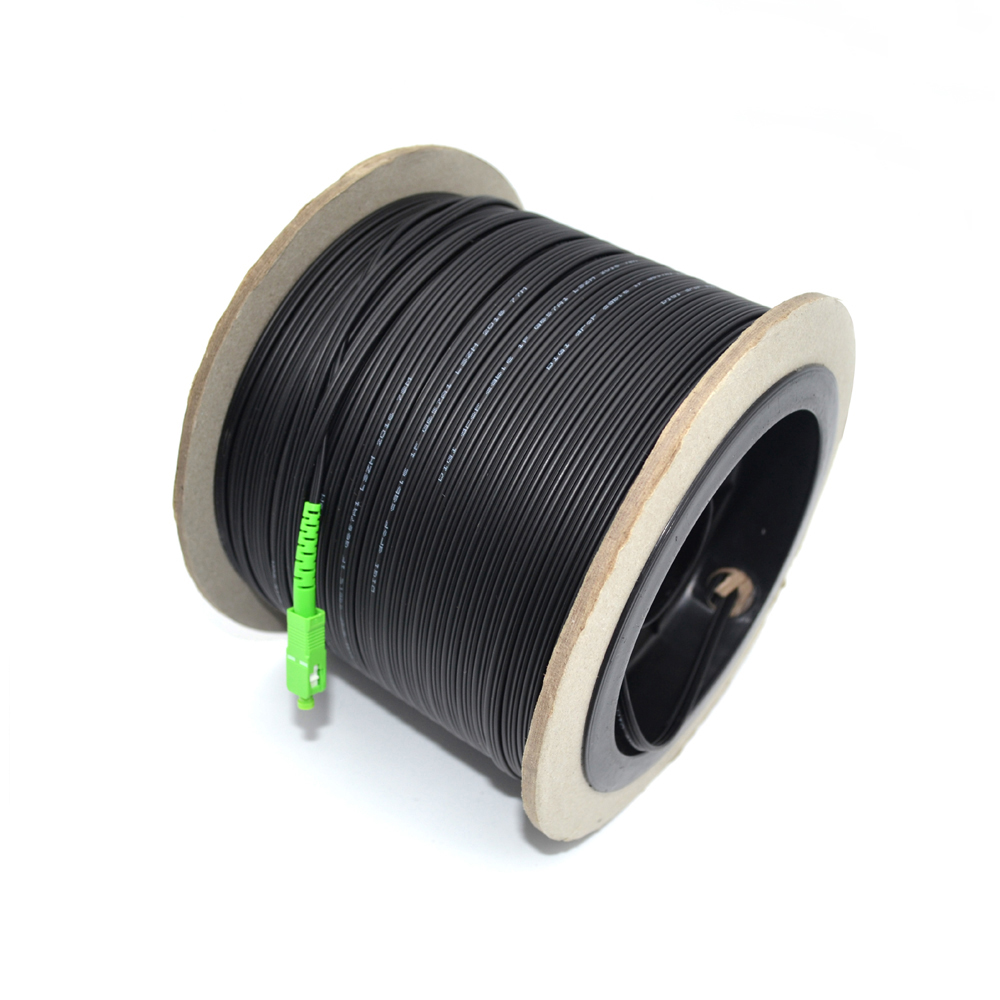

Product Photos:
