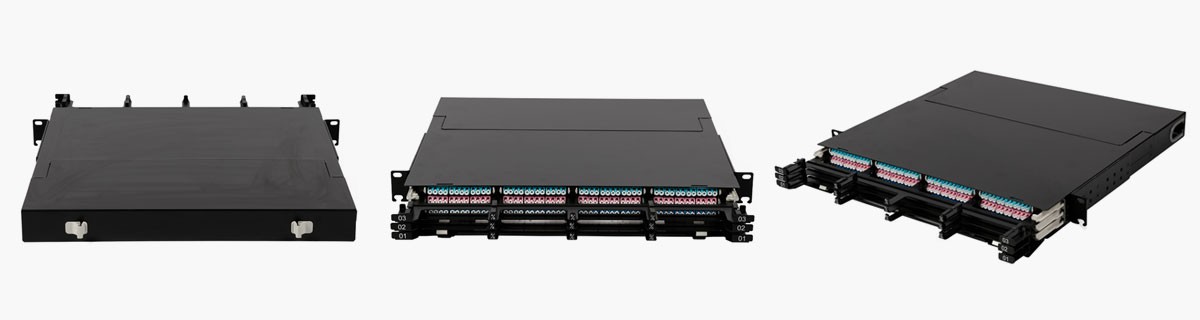

High-density modular MPO distribution frame 1U
MTP * / MPO fiber distribution frame is a scalable solution mainly used in high-density 10 Gigabit Ethernet applications. There are Main Distribution Area (MDA) and Horizontal Distribution Area (HDA) terminal cabling products. There are usually three designs: 1U, 2U, 4U. According to data center setup needs, it simplifies the field installation, improves system performance and achieves higher system density, modular system management and pre-assembled components so that it reduces the installation time and achieves the movement and expansion in the fastest way.
Overview:
Applications
- Data centers,pre-terminated installations
- Telecommunication networks
- Storage area networking fiber channel
- High denisty architectures
Features
- Sliding tray design, the new type of the expansion and adequate operational space enable the highest density
- A variety of welding wiring signs enable easy welding and cabling records
- High-density trunk cable with lesser bending radius enables easy storage and installation
- Connector module, 19-inch rack mount for easy installation and expansion
- Low insertion loss enable multi-level connections in complete fiber link when deploying TIA-942 compliant systems
- Customized branch cable assemblies for seamless integration with mainstream SAN switches
- Factory termination provides stable quality and ensures system reliability . It reduces installation time, meet series standards of TIA / EIA604-5-D-2007, IEC61754-7-2008
Technical Details:
- Material: SPCC&AL, 1.2mm Thickness, Gray(RAL7043)
- Operating Temperature: -20° to +70°
- Height: 1U(44.2mm), Width: 19″(482.6mm), Depth: 18.3″(464.9mm), Net Weight: 6.8kg

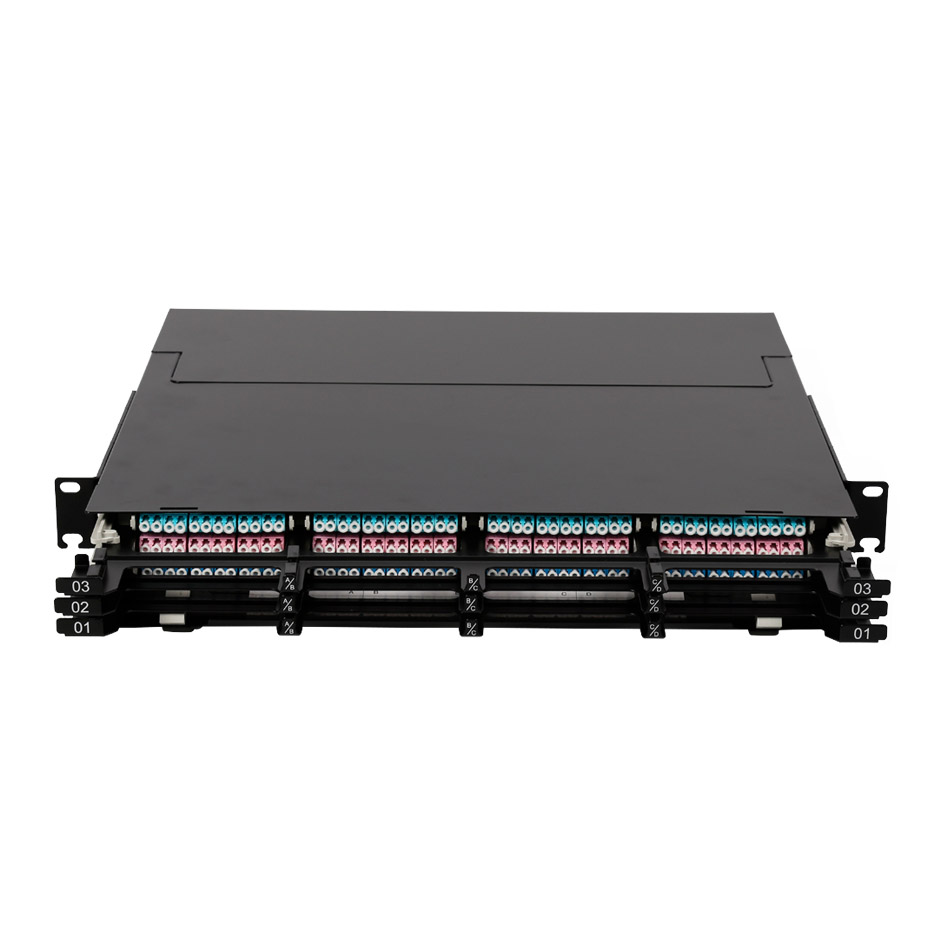

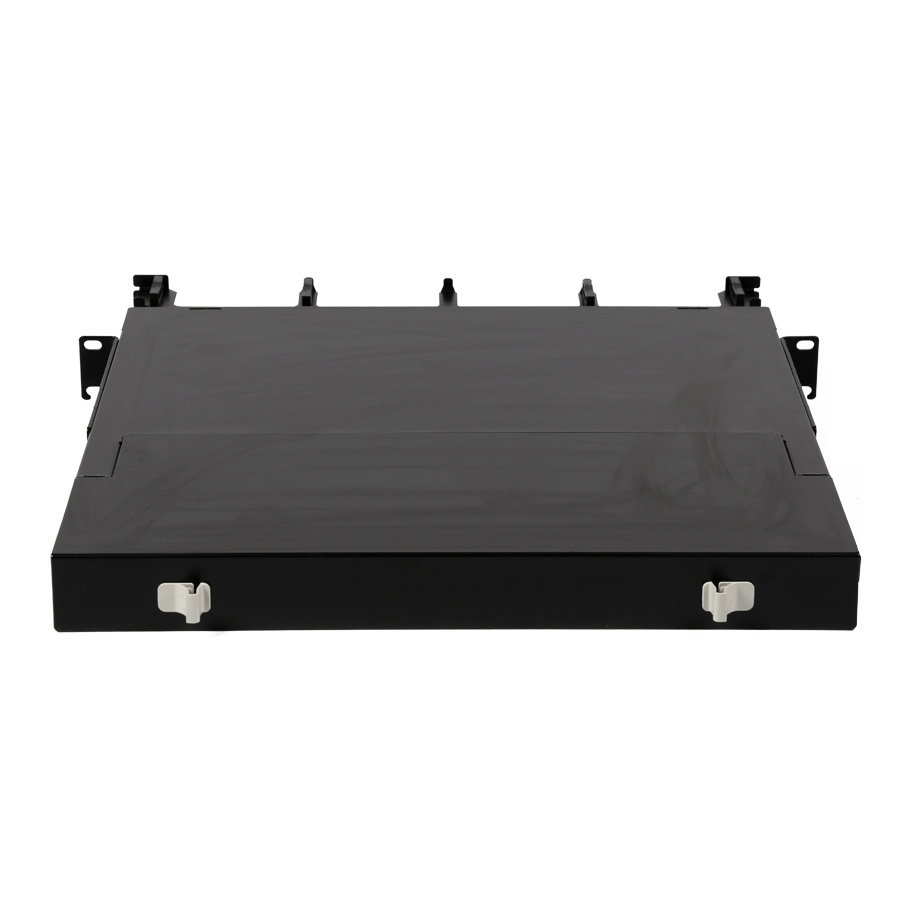

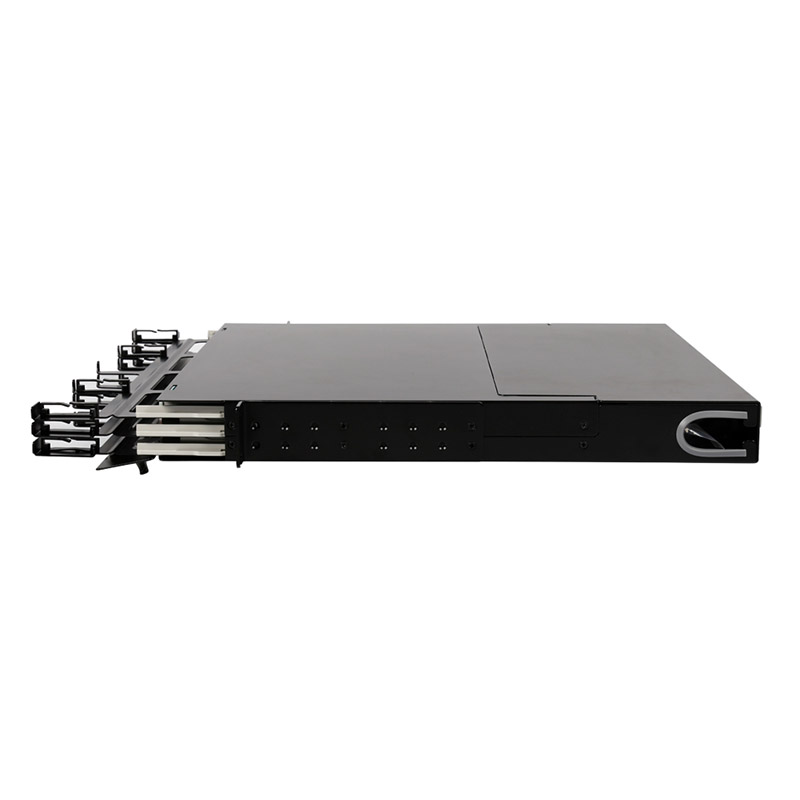

Product Photos:
![High-density modular MPO distribution frame 1U High-density modular MPO distribution frame 1U](https://gkoptic.com/wp-content/uploads/2021/12/1-210H3142339637.jpg 800w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H3142339637-300x300.jpg 300w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H3142339637-150x150.jpg 150w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H3142339637-768x768.jpg 768w)
![High-density modular MPO distribution frame 1U High-density modular MPO distribution frame 1U](https://gkoptic.com/wp-content/uploads/2021/12/1-210H3142339321.jpg 945w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H3142339321-300x300.jpg 300w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H3142339321-150x150.jpg 150w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H3142339321-768x768.jpg 768w)
![High-density modular MPO distribution frame 1U High-density modular MPO distribution frame 1U](https://gkoptic.com/wp-content/uploads/2021/12/1-210H31423391S.jpg 998w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H31423391S-300x300.jpg 300w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H31423391S-150x150.jpg 150w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H31423391S-768x768.jpg 768w)
![High-density modular MPO distribution frame 1U High-density modular MPO distribution frame 1U](https://gkoptic.com/wp-content/uploads/2021/12/1-210H314233c57.jpg 909w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H314233c57-300x300.jpg 300w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H314233c57-150x150.jpg 150w, https://gkoptic.com/wp-content/uploads/2021/12/1-210H314233c57-768x768.jpg 768w)
