Pre-terminated Cable

GKoptic’s pre-terminated cabling system provides Singlemode and Multimode cable assemblies with all standard type of connectors. Our manufacturing process ensures unsurpassed connector and cable performance. These high quality cable assemblies are ready to install upon arrival, its easy plug-and-play technology helps to reduce installation time and costs.

Overview:

Applications

Connected with trunk cables on one end, equipment port on the other end.
Connected with transfer modules on one end, equipment port on the other end.

Features And Options

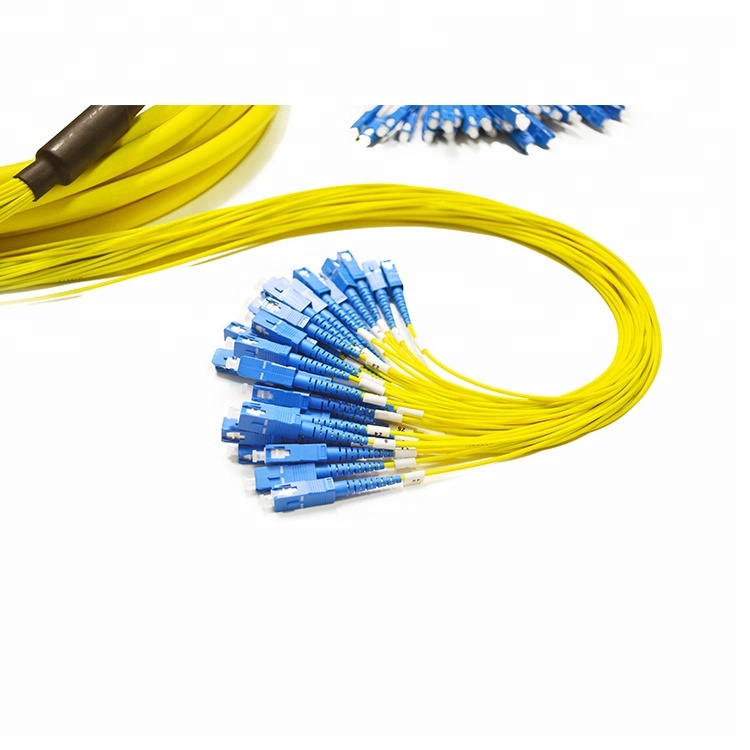

Multimode & singlemode connectors SC, FC, ST, LC, MU, MTRJ, E2000
Ultra polished connectors(UPC) and angle polished connectors(APC)
Available at OS1, OM2,OM3,OM4.
Available at 1M, 2M,3M,5M,10M,XXM.

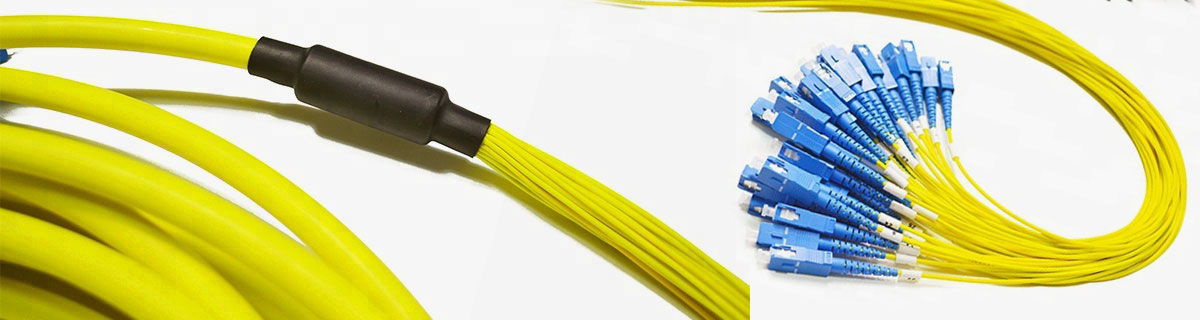

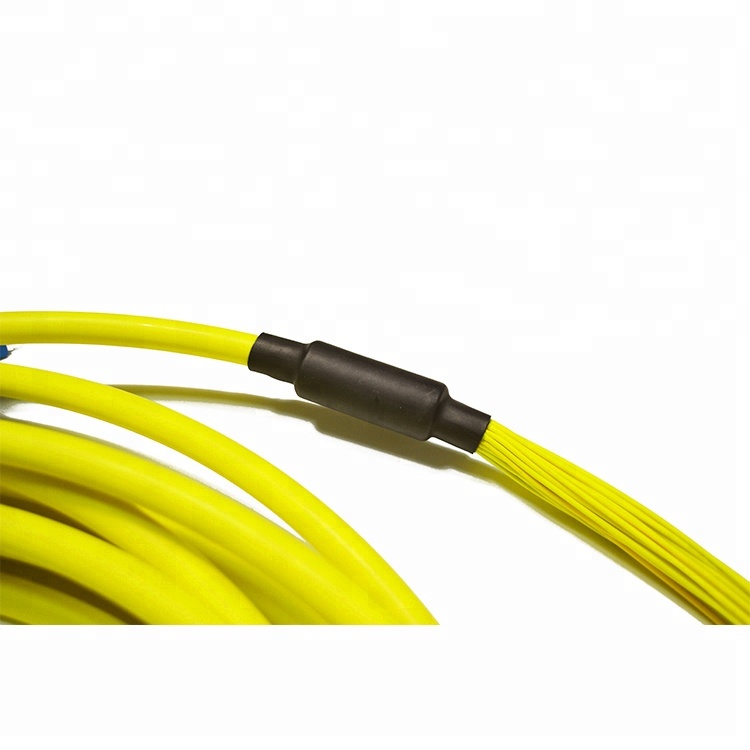

4 cores,8 cores,16cores,32cores breakout versions
OFNP plenum jacket Or LSZH Jacket.
Full traceability & test certificate supplied with each assembly
100% tested for Insertion loss and return loss
Bend insensitive fibers of G657A/B
OM4 fibers 10 Gigs at 550 meters
Any color of cable jacket and connectors available
Cable printing
Private labeling or OEM packaging

Technical Details:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.20	≥65
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Mechanical Properties
Item		Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)
