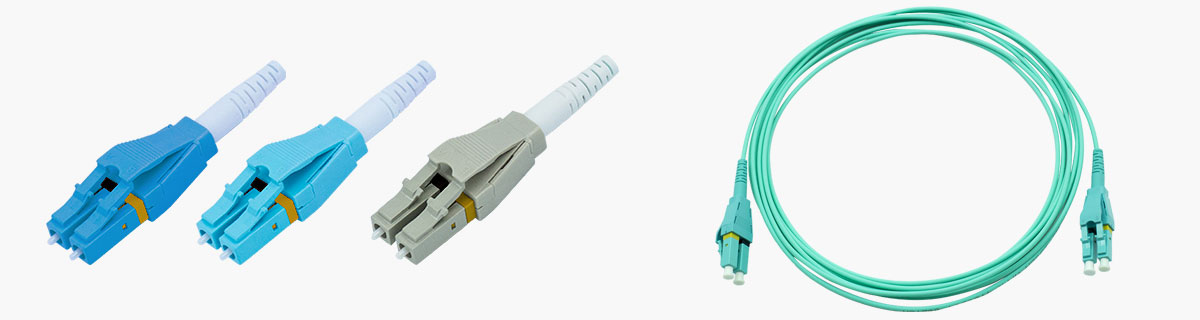

LC Uniboot Patchcord
GKoptic provides a high optical performance Dual LC Uniboot Patchcord which save half of the operation spaces required.
This Uniboot LC patchcord uses unified connectors housing and single-jacketed 3.0mm duplex cable. It dramatically reduces 50% of cable required compare to standard zipcord LC patchcord, ultimately facilitating improved airflow within a high density environment such as data centers and 10G/40G optical networks.
Our stringent manufacturing process and 100% factory tested products assure the excellent optical performance of the cable.
Overview:
Applications
- Data Centers
- Local Area Networks
- High-Density Applications
- Interconnects
- Cross-connects
Features And Options
- Uniboot with a Single Housing
- Unique Push-Pull Design and Function
- Easy to Assemble and Use
- Low Insertion Loss and Back Reflection
- High Repeatability and Reliability
- Telcordia GR-326 Qualified
Technical Details:
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -40℃~+60℃ | ||
| Storage Temperature | -45℃~+85℃ | ||
| Fire Resistant | IEC 60794-2-30 | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
| Fiber type | Single mode: | (1)9/125-G652D | (2)9/125-G655 | (3)9/125-G657A,G657A2 | (4)9/125-G657B3 | |
| Multimode: | (5)50/125-OM2 | (6)62.5/125-OM1 | (7)50/125-OM3 | (8)50/125-OM4 | (9)50/125-OM5 | |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||||
| Cord type | Simplex ,Duplex | |||||
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||
