Single mode / Multimode Fiber Optic Loopback Module with SC / LC Connector

Singlemode/Multimode Fiber Optic Loopback with SC/LC Connector

Fiber Loopback Module is designed to provide a media of return patch for a fiber optic signal. Typically it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem. Sending a loopback test to network equipment, one at a time, is a technique for isolating a problem. Fiber Loopback Module is abosolutely an economical solution for a number of fiber optic test applications.
GKoptic supplies various kinds of single-mode and multimode Fiber Optic Loopback Modules. Each module is functionally tested before shipping and is covered by a lifetime warranty.



  • Telecommunication Networks
  • Local Area Networks (LANs)
  • Communication System
  • Wide Area Networks
  • Video Transmission
  • FTTX
  • CCAV

Features And Options

  • Custom Manufactured
  • Ideal for testing and diagnosing fiber optic network equipment
  • Compliant to IEC, TIA/EIA, NTT and JIS specifications
  • Custom loop length and cable diameter on request

Technical Details:

Item SM MM
Ferrule End-face PC UPC APC PC
Insertion Loss ≤0.2dB ≤0.3dB ≤0.3dB
Return Loss ≥45dB ≥50dB ≥60dB ≥35dB
Exchangeability ≤0.2dB, 500 Cycles
Operating Temperature -40°C to +80°C

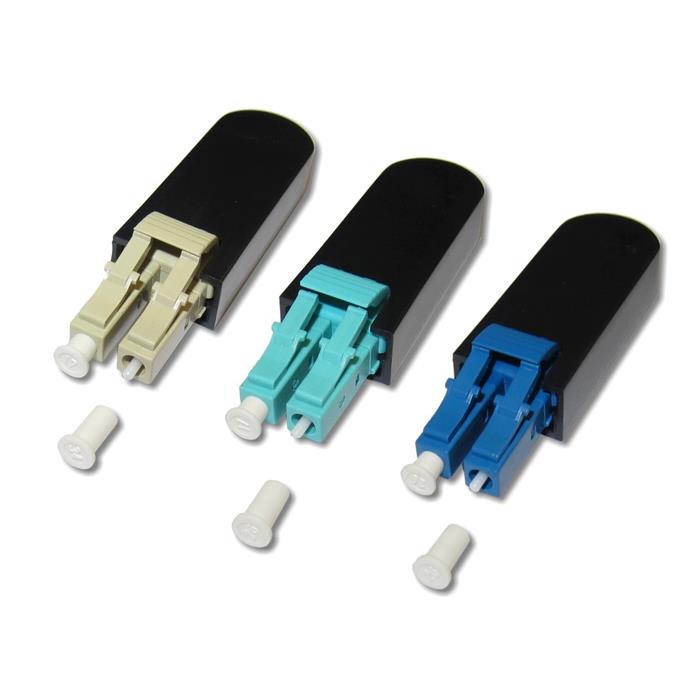

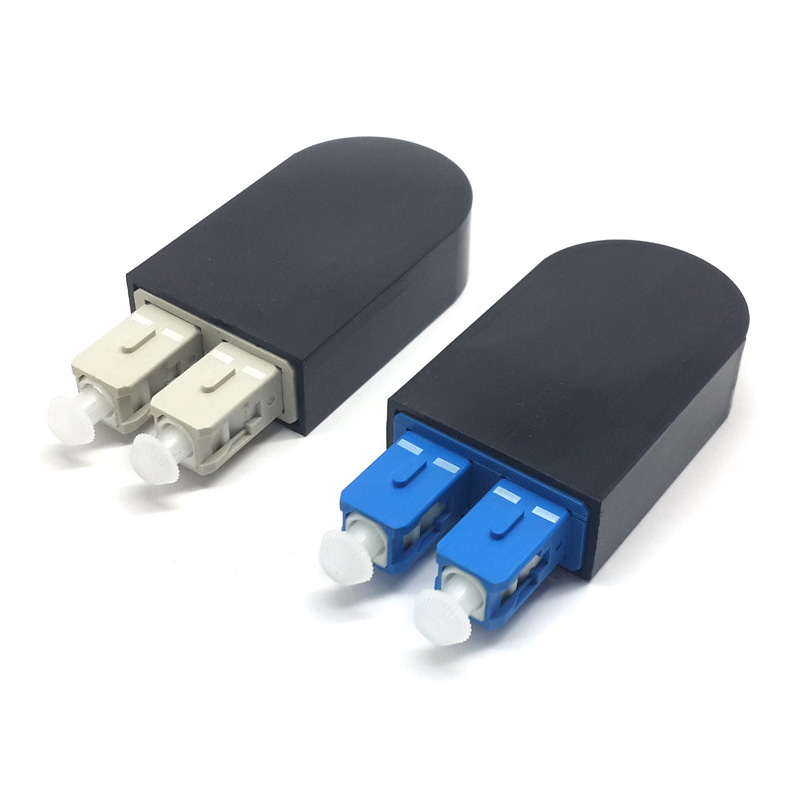

Product Photos:
