Single mode / Multimode Fiber Optic Loopback with SC / LC Connector
Fiber Optic Loopbacks is designed to provide a media of return patch for a fiber optic signal; typically it is used for fiber optic testing applications or network restorations.
Overview:
Applications
- Communications connections
- LoopBack for network components testing
- Optical Fiber Amplifier
- Fiber Optic Sensor
- Instrumentation
- CATV
Features
- Fiber mode: G652D, G657A1, G657A2
- Cable diameter: 0.9mm, 2.0mm, 3.0mm
- Cable jacket: PVC, LSZH, OFNP, OFNR
- Connector: LC, SC, MTRJ, MPO
- Mode: Singlemode and Multimode OM3
- Fiber end-face: UPC, APC
- Low insertion loss and high return loss
- Compact design
- Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit Ethernet
- Short wavelength devices
- Loop back cable for many test applications
Technical Details:
| Item | SM | MM | ||
| Ferrule End-face | PC | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.3dB | |
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB |
| Exchangeability | ≤0.2dB, 500 Cycles | |||
| Operating Temperature | -40°C to +80°C | |||

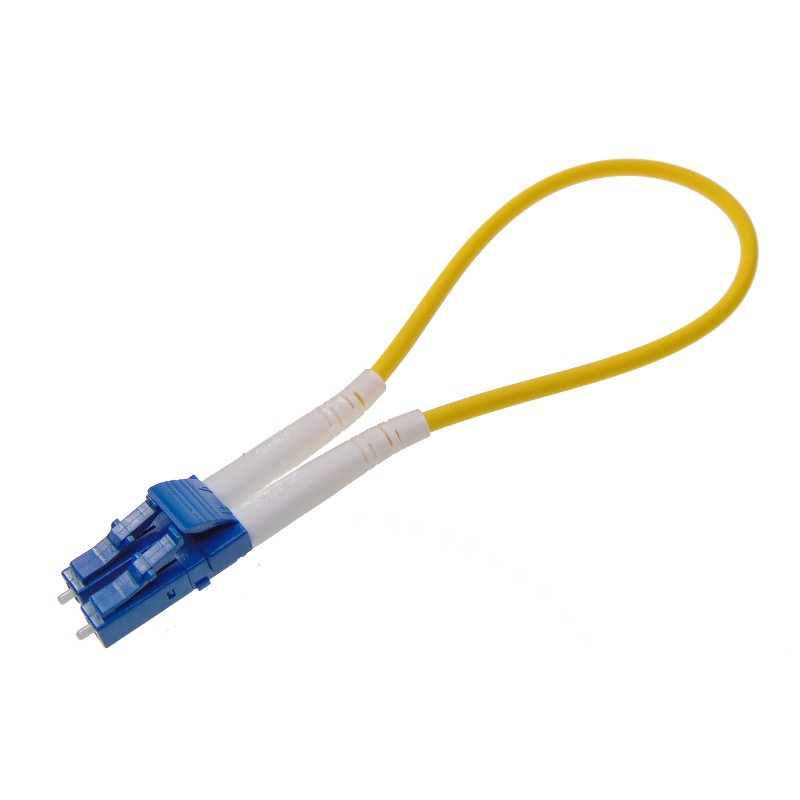

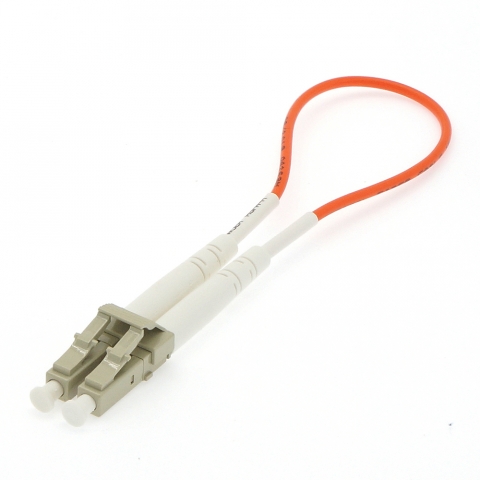

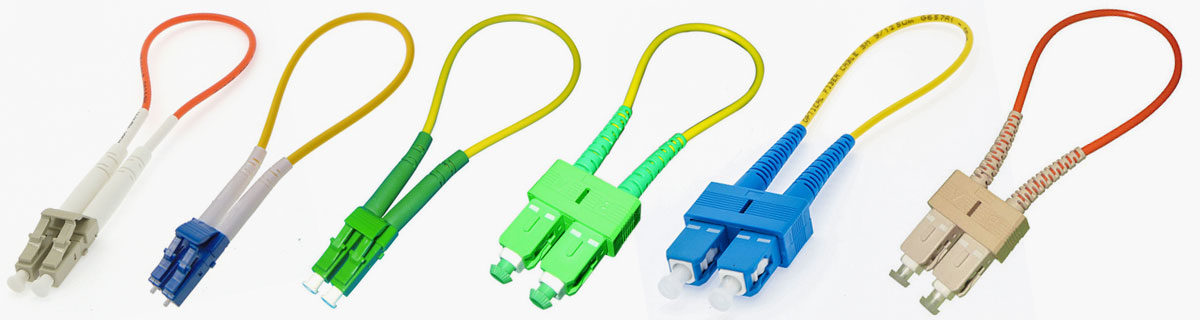

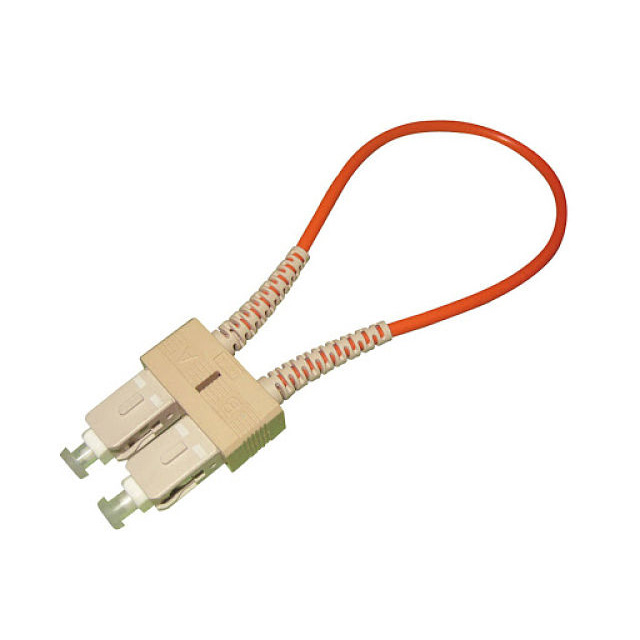

Product Photos:
