MPO MTP Adapter

MPO MTP Adapter

GKoptic‘s MPO adapters and MTP adapters that provide quick connection for up to 72 optical fibers.Connection integrity is provided by adapter latches which are locked into place by a spring loaded sliding mechanism on the MPO / MTP connector plug. MPO / MTP connector guide pins combined with the tightly controlled guide pin holes on MT ferrules. Numerous single port and ganged configurations are available to satisfy a variety of applications. MPO / MTP adapters are fully compliant with IEC Standard 61754-7 and TIA 604-5-Type MPO. They are available in multiple types, SC footprint type, full flange and no flange. Our adapters are also available for multimode and single mode with straight key type and opposed key type. Available colors include black, red, aqua, beige, green, blue and gray.



  • Telecommunication networks
  • Local Area Networks (LANs)
  • Wide Area Networks (WANs)
  • Test equipment


  • Different flange available includes standard, rotated, or flangeless
  • Keyway available for key up or key down
  • IEC 61754-7 and TIA/EIA 604-5 Compliant for MPO/MTP® interfaces
  • Telcordia GR-1435-Core Compliant

Technical Details:

Item MTP/MPO Adapter
Housing UL-Rated Plastic or Die Cast
Clip & Shutter Stainless Steel
Durability < 0.2dB change, 1000 mating cycles
Operating Temperature -40℃~+70℃
Storage Temperature -40℃~+85℃

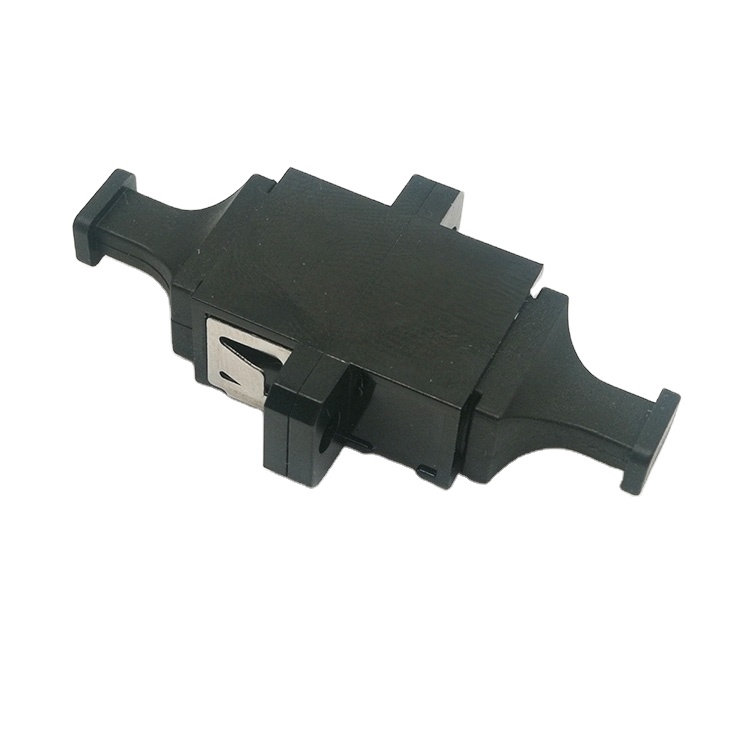

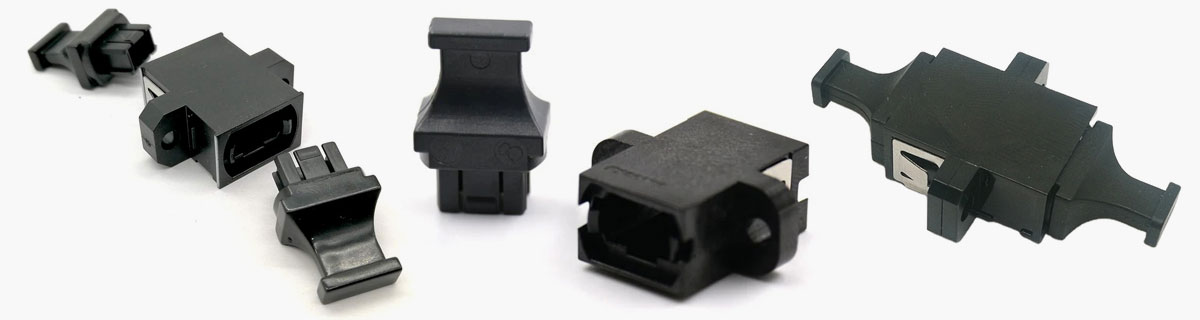

Product Photos:
