MPO MTP Fan out 900um Patch Cords

MPO/MTP Fan out 900um Patch Cords

GKoptic’s MTP/MPO fanout/breakout Patchcords are the ideal connection to patch panels and data distribution routing. They can be made with both 12 fiber MTP connectors and 24 Fiber MTP connectors. A variety of options are available and include MPO/MTP to LC, SC, ST, and FC fiber optic patch cables.



  • Data communication network
  • Optical System Access network
  • Storage area networking fiber channel
  • High density architectures


  • Economical solution for mass-termination of fiber
  • Designed for low loss and standard loss SM and MM applications
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Good in repeatability  and exchangeability

Technical Details:

Performance Level Standard Elite
Connector Mode Endface IL(max) (dB) RL(min) (dB) IL(max) (dB) RL(min) (dB)
MPO/MTP SM 12F/APC ≤0.70 ≥60 ≤0.35 ≥60
24F/APC ≤0.75 ≥60 ≤0.35 ≥60
48F/APC ≤0.75 ≥60
MM 12F/PC ≤0.50 ≥20 ≤0.35 ≥20
24F/PC ≤0.50 ≥20 ≤0.35 ≥20
48F/PC ≤0.50 ≥20
LC/SC/FC/ST SM APC ≤0.30 ≥60 ≤0.10 ≥60
UPC ≤0.20 ≥50 ≤0.10 ≥50
MM PC ≤0.20 ≥30 ≤0.10 ≥30


1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item Criteria Conformance
△IL After 50 Matings MPO/MTP ≤0.3dB GR-1435
△IL After 500 Matings LC/SC/FC/ST ≤0.2dB IEC 61300-2-2
Min Bend Radius (Dynamic) 20*OD (Cable Diameter)
Min Bend Radius (Static ) 15*OD (Cable Diameter)
Environment Conditions
Item Criteria Conformance
Operation Temperature -40~60°C IEC 61753-1
Storage Temperature -45~85°C

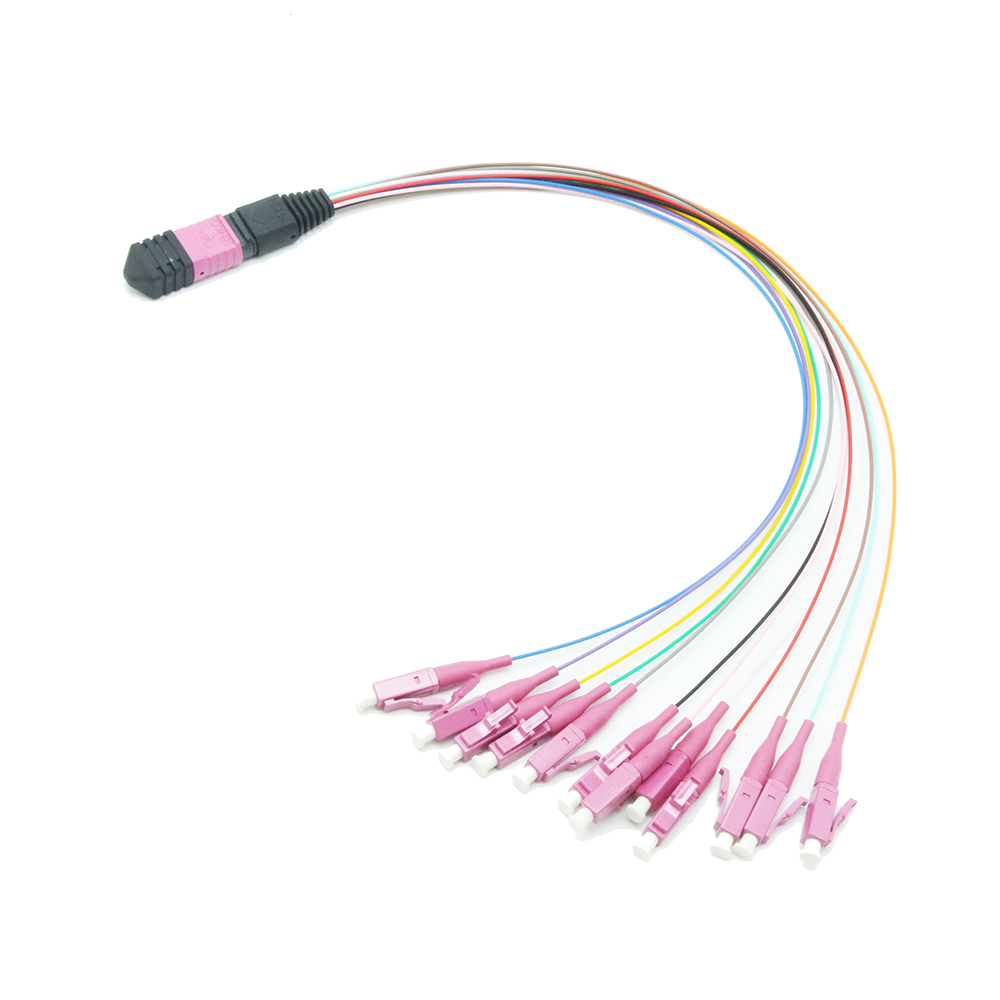

Product Photos:
