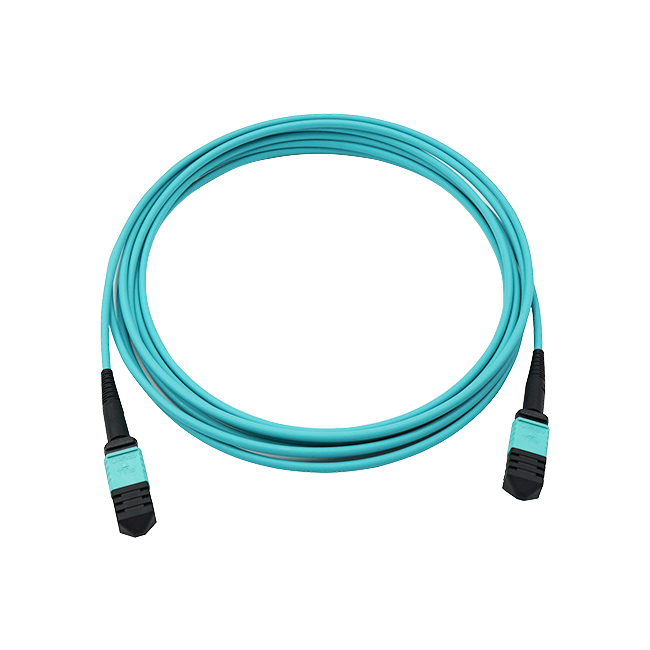

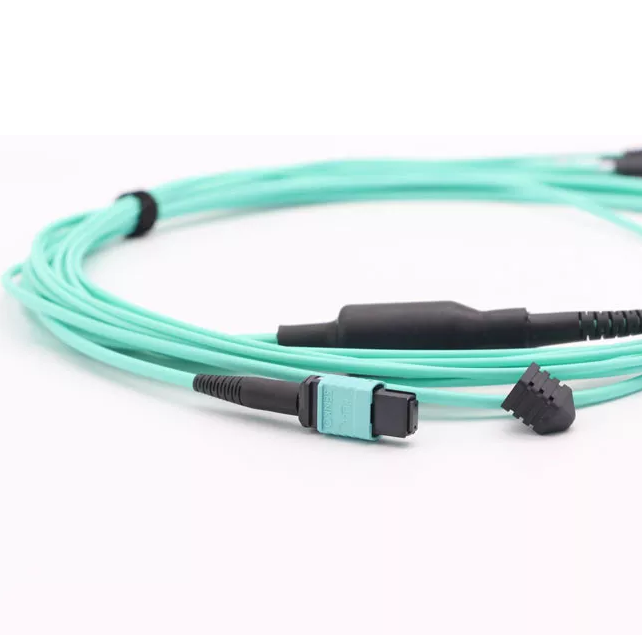

MPO/MTP Trunk Cable

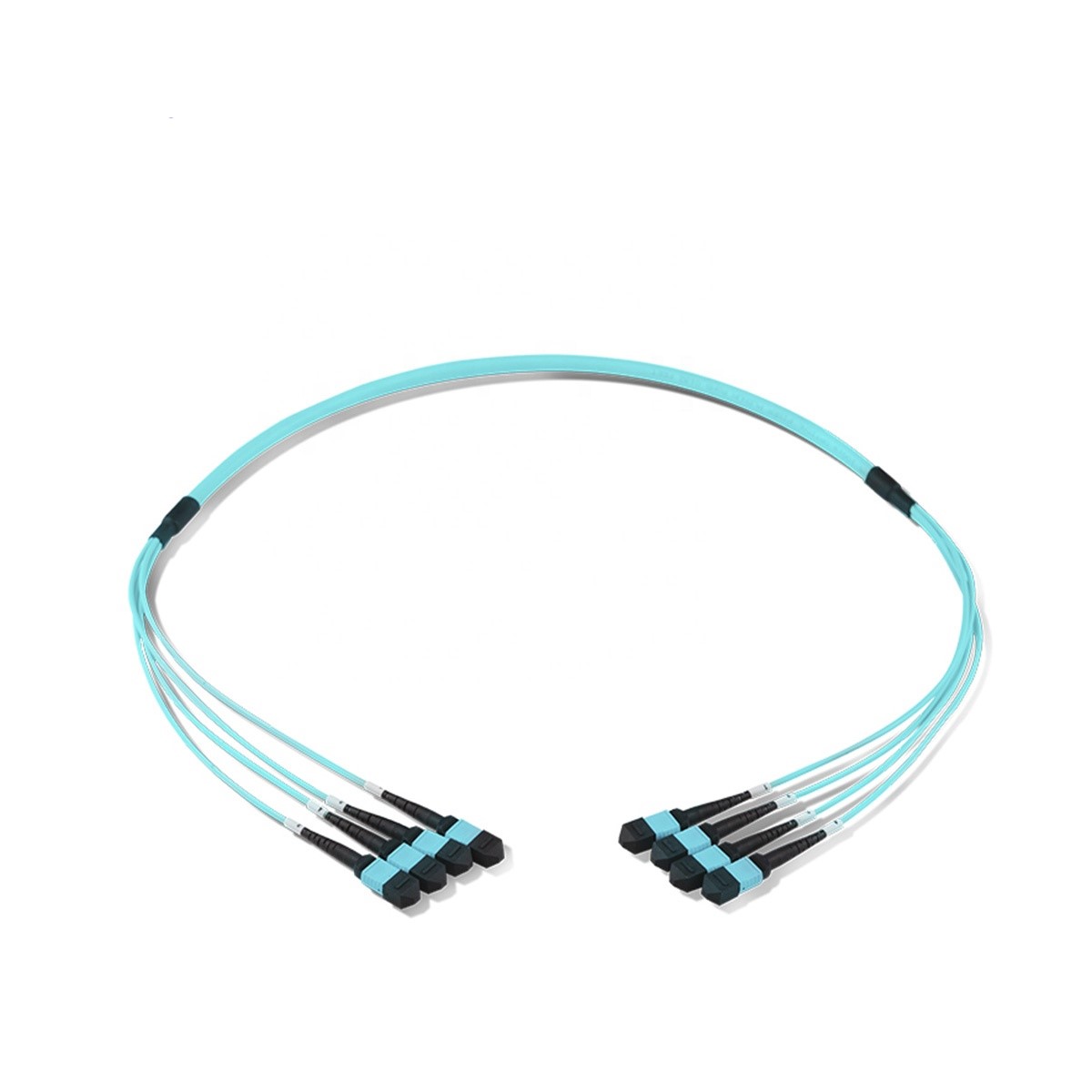

GKoptic manufactures and distributes a wide range of MTP/MPO products including Single-mode and Multimode MPO and MTP fiber cable. The MPO fiber cable connector offers up to 12 times the density of standard connectors, providing significant space and cost savings. High density MTP/MPO trunk cables can house up to 288 fibers in a single cable.

MPO fiber patch connectors make use of precision molded MT ferrules with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. MTP fiber cable can be mass terminated in combinations of 4, 8, 12, 24 and 48 fiber ribbon cables and are typically used in high-density backplane and Printed Circuit Board (PCB) applications within data and telecommunications systems.

Overview:

Applications

Data Center Networks
10G/ 40G/ 100G Networks
Parallel interconnection
Miniature modules
Active Optical Cable

Features

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Technical Details:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20

Note:

1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item		Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)
