MPO/MTP Loopback
GKoptic offers single mode and multimode MTP/MPO fiber optic loopbacks. MTP/APC Single-mode loopbacks, and MTP/UPC Multimode loopbacks using USConec MTP connectors for the highest quality polish and lowest insertion loss possible. All fiber modes including 9/125, 50/125, 62.5/125.
MTP/MPO loopbacks in standard configurations such as for QSFP modules for a QSFP MTP loopback tester. Custom MPO MTP loopbacks are also available for any configuration. Contact us about custom MTP MPO loopbacks- we can make any custom configuration you need for your custom MTP loopback needs.
Overview:
Applications
- 40GbE QSFP+ Optical Testing
- Training
- Research and Development
- Manufacturing Test
- Troubleshooting
- Quality Control
Features
- Available in a wide variety of wiring configurations and fiber types
- Compact and portable with lanyard feature
- All loopbacks meet TIA/EIA and IEC intermateability standards
- 8 , 12, and 24 Fiber available
- Easy Installation/Removal,available with or without Pull tabs
Technical Details:
| Model Number: | MPO MTP Loopback | Fiber Count: | 12 ,24 |
| Pass Geometry Test Or Now: | 100% Passed | Connector Type: | MPO/MTP |
| Connector: | MTP,MPO , MTP (Elite),MPO (Elite) | Insert Loss: | ≤0.7dB (SM), ≤0.30 DB (MM) |
| Return Loss: | ≥60dB (SM), ≥20dB(MM) | Certification: | ISO9001:2015 |

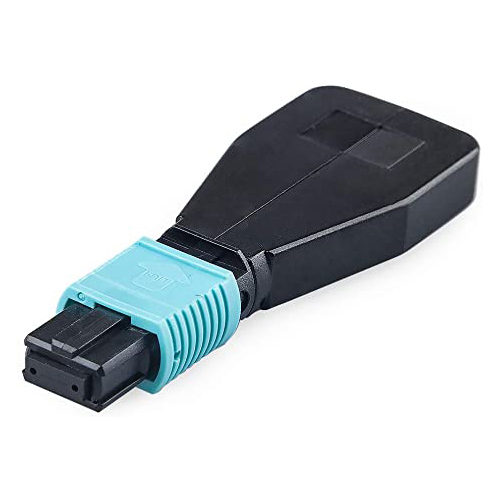

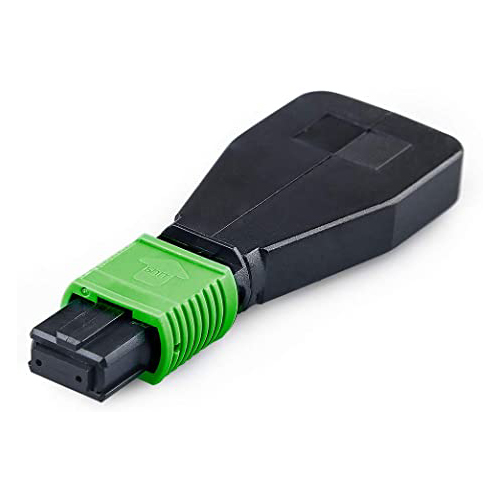

Product Photos:
