MPO/MTP Harnesses Cables

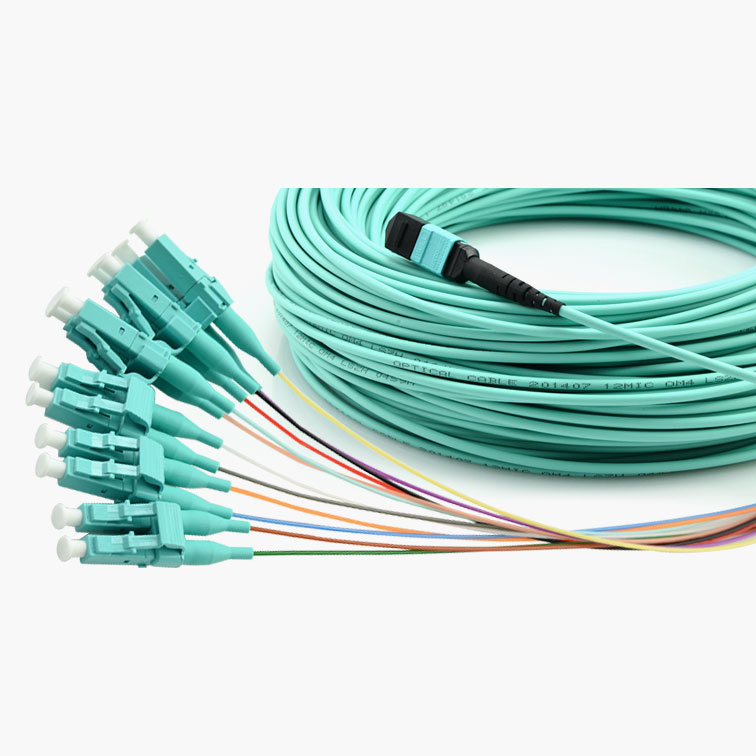

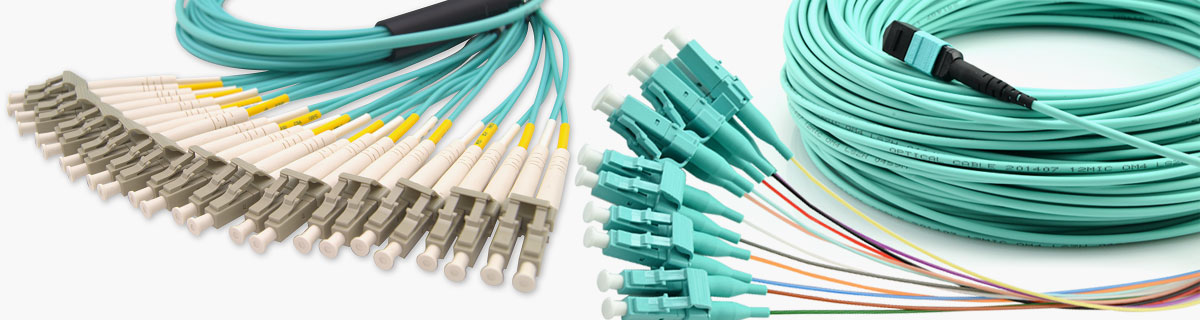

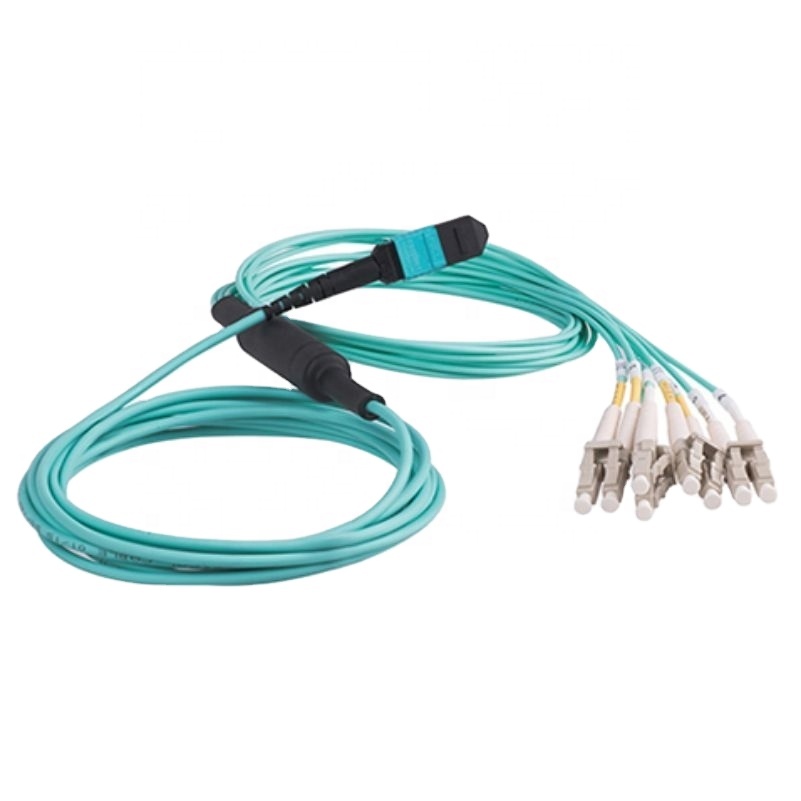

GKoptic MTP/MPO fanout/breakout cables are the ideal connection to patch panels and data distribution routing. They can be made with both 12 fiber MTP connectors and 24 Fiber MTP connectors. A variety of options are available and include MPO/MTP to LC, SC, ST, and FC fiber optic patch cables.

Overview:

Applications

Data Center Networks
10G/ 40G/ 100G Networks
Parallel interconnection
Miniature modules
Active Optical Cable

Features

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Technical Details:

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	SM	12F/APC	≤0.70	≥60	≤0.35	≥60
		24F/APC	≤0.75	≥60	≤0.35	≥60
		48F/APC	≤0.75	≥60
	MM	12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20
		48F/PC	≤0.50	≥20
LC/SC/FC/ST	SM	APC	≤0.30	≥60	≤0.10	≥60
	SM	UPC	≤0.20	≥50	≤0.10	≥50
	MM	PC	≤0.20	≥30	≤0.10	≥30

Note:

1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;

2.Standard conformance: GR-326,GR-1435.

Mechanical Properties
Item		Criteria	Conformance
△IL After 50 Matings	MPO/MTP	≤0.3dB	GR-1435
△IL After 500 Matings	LC/SC/FC/ST	≤0.2dB	IEC 61300-2-2
Min Bend Radius (Dynamic)		20*OD (Cable Diameter)
Min Bend Radius (Static )		15*OD (Cable Diameter)
