Fiber Optic Distribution Box GKC-FDB-12BE

Fiber Optic Distribution Box GKC-FDB-12BE

Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



  • Widely used in FTTH access network
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks
  • Indoor and Outdoor Application


  • Protection grade: IP65.
  • Industry Standard User Interface,be made of high impact plastic material(can use 10 years).
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall and pole mountable.
  • Efficient cable management
  • Varies of adaptors are available

Technical Details:

Product name Fiber Optic Distribution Box IP Rate IP65
Product Model  GKC-FDB-12BE Product Size

Inner box size

240*205*70 mm

250*230*70 mm

Ports 2 inlet port 12.5mm

/ 12 out port 9.5mm

Packing Quantity 10 pcs / carton

51*46*38cm 21.2kg

Compatible with 1:8 PLC splitter or

12 core adapter pigtail

Material ABS
Installation Type wall / pole-mounted Net weight 1.1kg

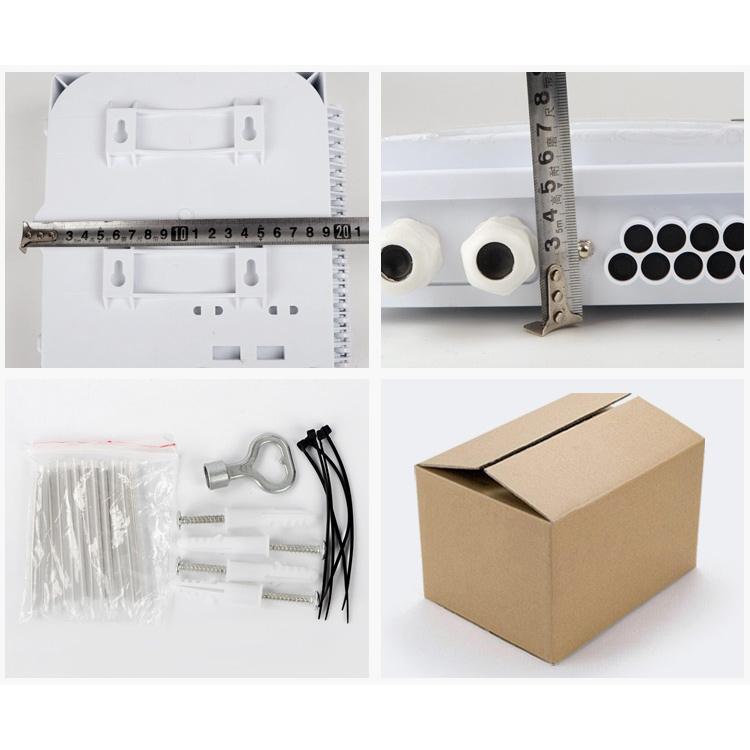

Accessories 1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 4 pieces
4. Heat shrink protective sleeves: 12 pieces
5. Key :1 piece

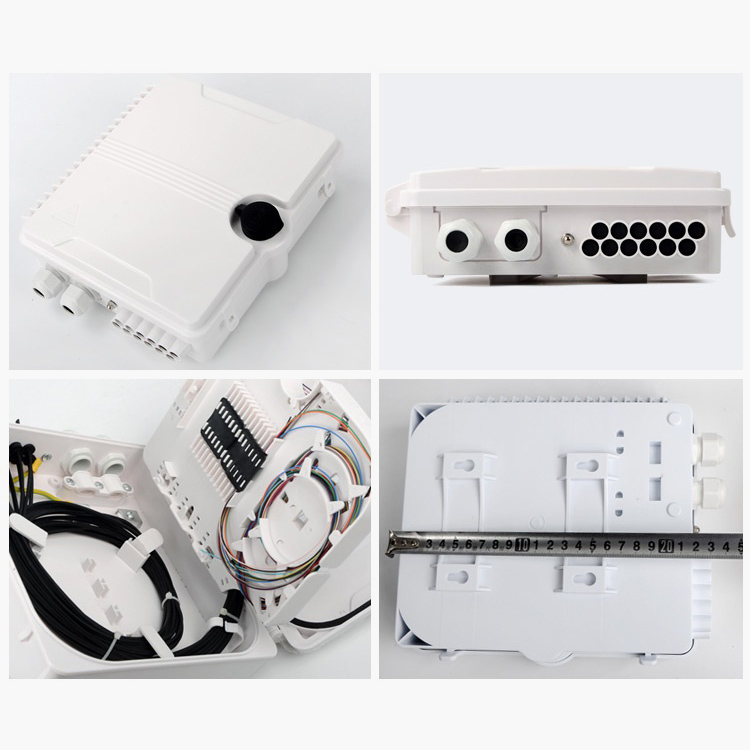

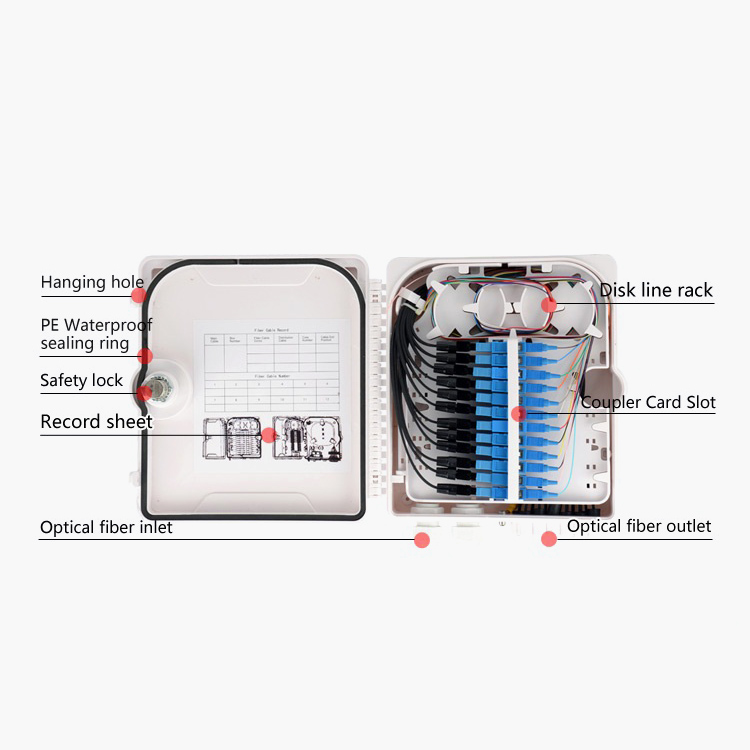

Product Photos:
