Fiber Optic Distribution Box mid span port uncut design GKC-FDMB-4-24P 4 inlet 24 out
Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Overview:
Applications
- Widely used in FTTH access network
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
- Indoor and Outdoor Application
Features
- Protection grade: IP65.
- Industry Standard User Interface,be made of high impact plastic material(can use 10 years).
- Anti-UV, Ultra violet resistant and rainfall resistant.
- Wall and pole mountable.
- Efficient cable management
- Varies of adaptors are available
Technical Details:
| Product name | Fiber Optic Distribution Box | IP Rate | IP65 |
| Product Model | GKC-FDMB-4-24P | Product Size
Inner box size |
280*170*95 mm
|
| Ports | 4 inlet port 12.5mm
/ 24 out port 9.5mm midspan port uncut design |
Packing Quantity | 10 pcs / carton
40*30*52cm 11kg |
| Compatible with | 24 core adapter pigtail | Material | ABS |
| Installation Type | Wall | G. weight | 1 kg |
| Accessories | 1. Wall mounting kits : 4 pieces 2. Screws : 4 pieces 3. Cable tie: 4 pieces4. Heat shrink protective sleeves: 24 pieces 5. Key :1 piece 6. Stainless steel plate：2 pieces 7. Hoop： 4 pieces |
||

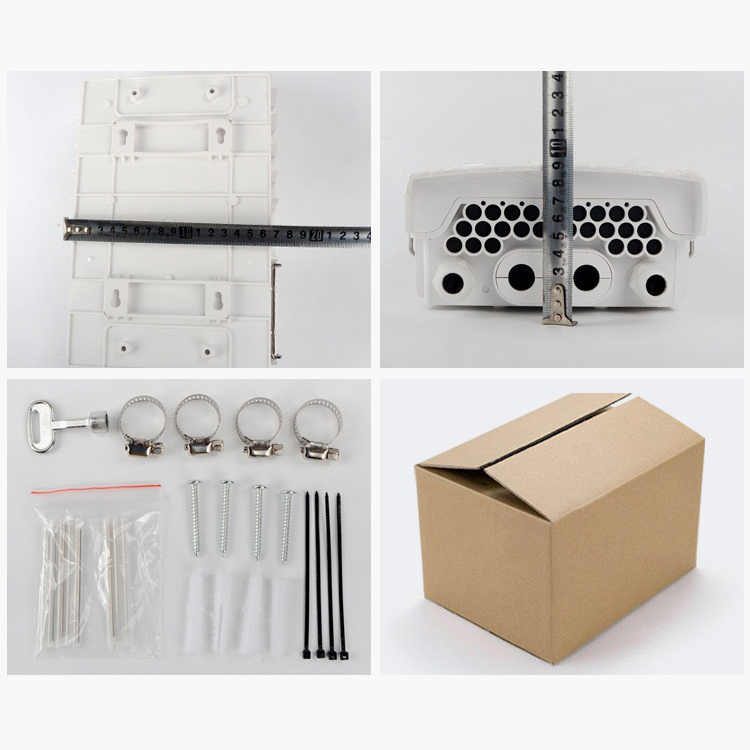

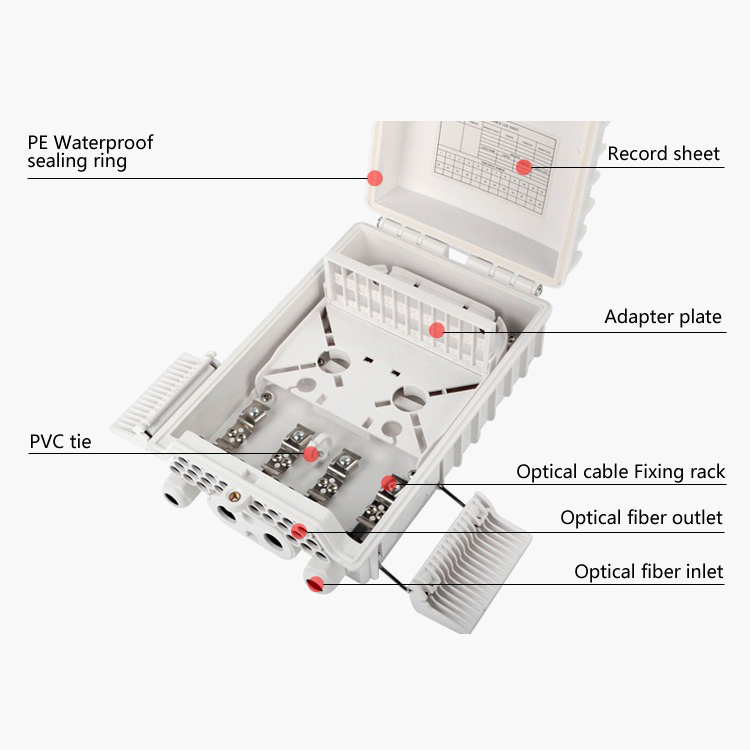

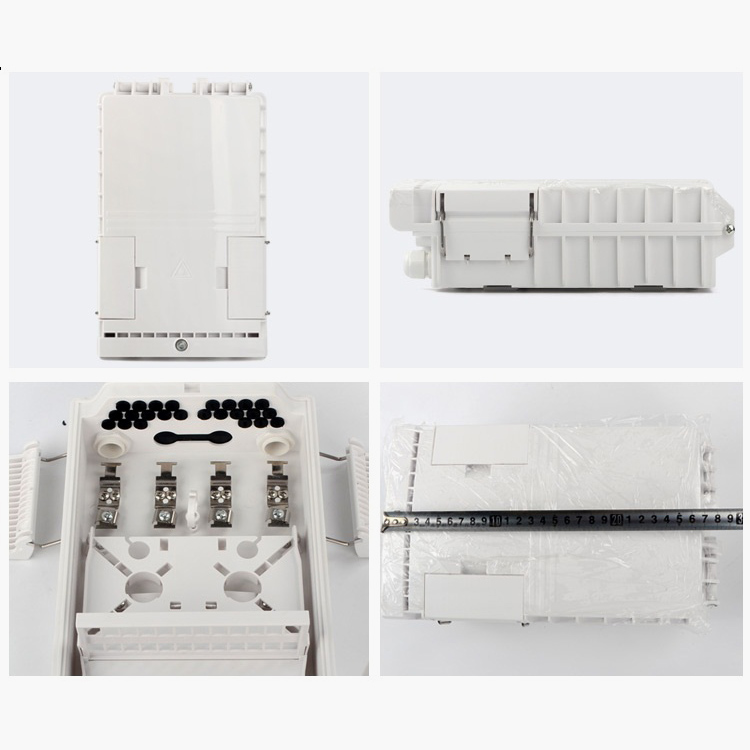

Product Photos:
