Fiber Optic Distribution Box GKC-FDB-8E

Fiber Optic Distribution Box GKC-FDB-8E

Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



  • Widely used in FTTH access network
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks
  • Indoor and Outdoor Application


  • Protection grade: IP55.
  • Industry Standard User Interface,be made of high impact plastic material(can use 10 years).
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall and pole mountable.
  • Efficient cable management
  • Varies of adaptors are available

Technical Details:

Product name Fiber Optic Distribution Box IP Rate IP55
Product Model GKC-FDB-8E Product Size 230*195*55 mm
Ports 3 inlet port φ12mm

8 out port  φ9.5mm

Packing Quantity 20 pcs / carton

52*44*32 cm 11.3kg

Compatible with 1:8 cassette splitter or

8 core adapter pigtail

Material ABS
Installation Type Wall / pole-mounted Net weight 0.5 kg
Accessories 1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 4 pieces4. Heat shrink protective sleeves: 8 pieces

5. Key :1 piece

6. Hoop:3 pieces

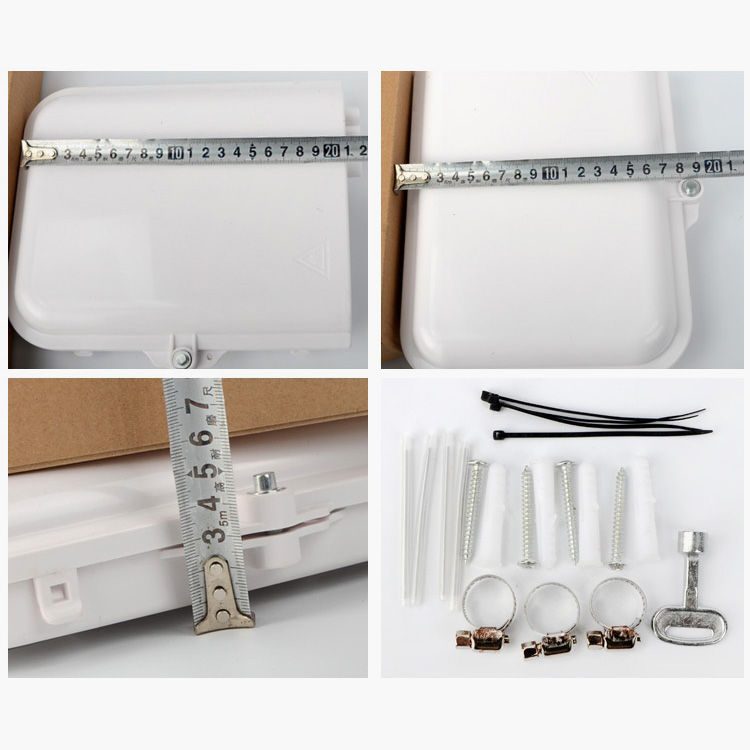

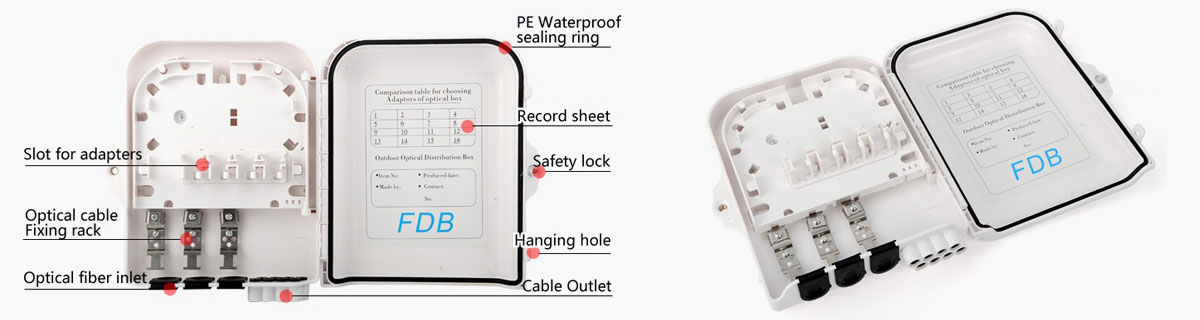

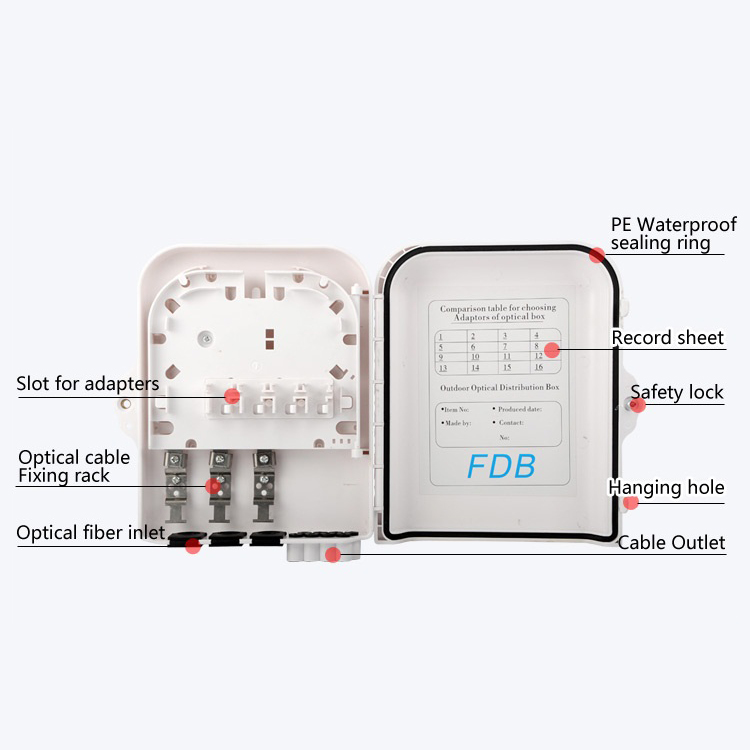

Product Photos:
