Fiber Optic Distribution Box GKC-FDB-8B

Fiber Optic Distribution Box GKC-FDB-8B

Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Overview:

Applications

  • Widely used in FTTH access network
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks
  • Indoor and Outdoor Application

Features

  • Protection grade: IP65.
  • Industry Standard User Interface,be made of high impact plastic material(can use 10 years).
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall and pole mountable.
  • Efficient cable management
  • Varies of adaptors are available

Technical Details:

Product name Fiber Optic Distribution Box IP Rate IP65
Product Model  GKC-FDB-8B Product Size 230*165*45 mm
Ports 1 inlet port 12.5mm

8 out port 3.5mm

Packing Quantity 40 pcs / carton

50*39*62cm 24.5kg

Compatible with 1:8 PLC splitter or

8 core adapter pigtail

Material PC ABS
Installation Type Wall / pole-mounted Net weight 0.5kg
Accessories 1. Wall mounting kits : 3 pieces
2. Screws : 3 pieces
3. Cable tie: 4 pieces
4. Heat shrink protective sleeves: 8 pieces
5. Key :1 piece

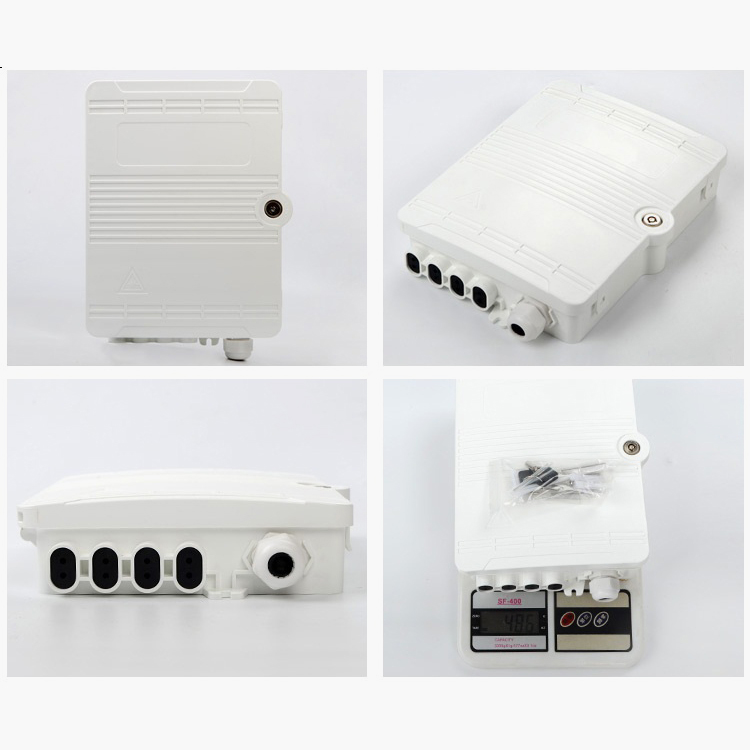

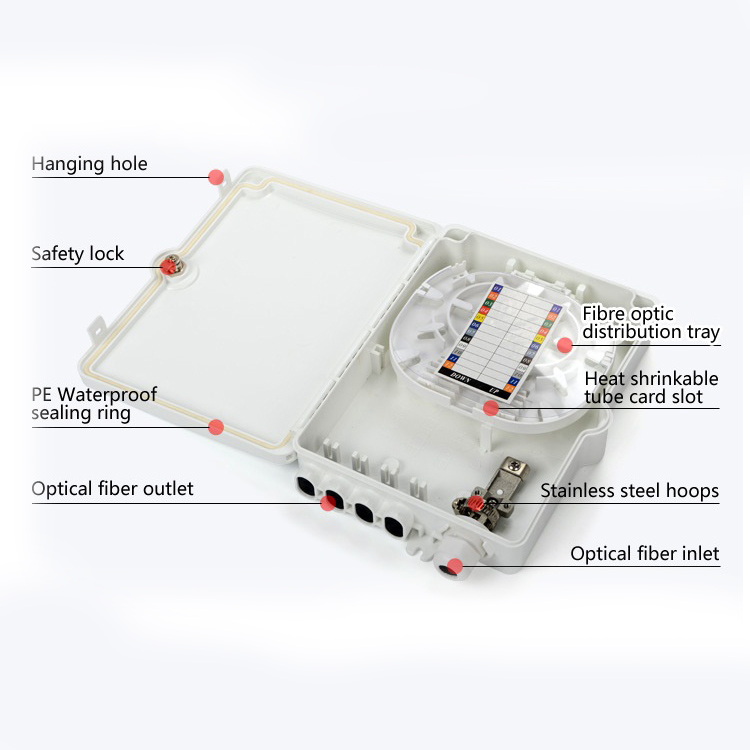

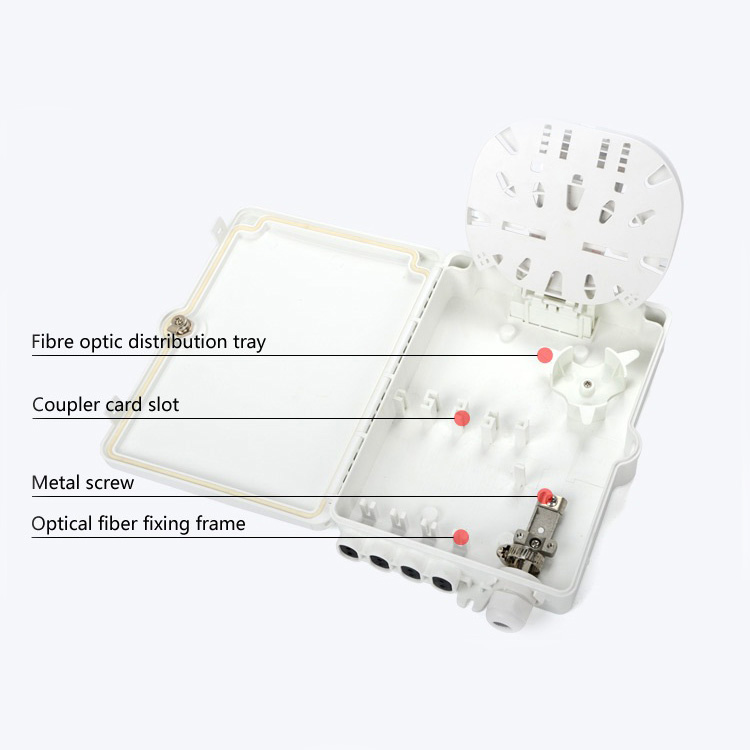

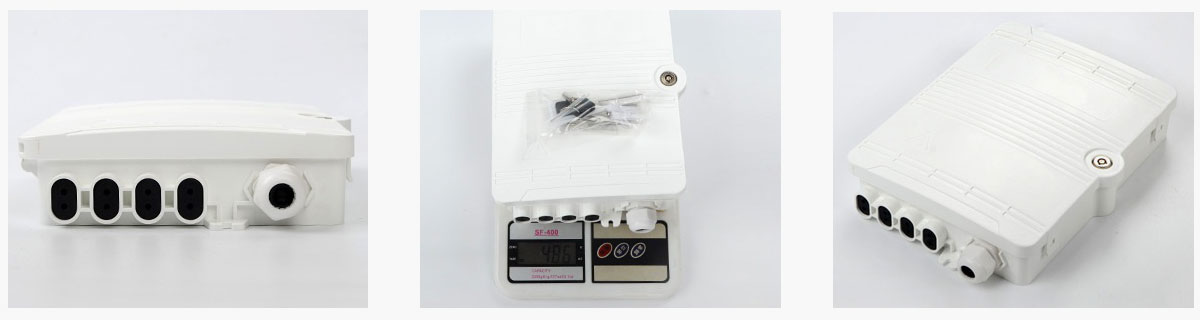

Product Photos:
