Fiber Optic Dome Closure GKCJ09-5609

Fiber Optic Dome Closure GKCJ09-5609

GKCJ09-5609 Dome closure is a piece of versatile fiber optic connector equipment, the reasonable interior structural design makes the closure a favorable choice for fiber splicing and storage.



  • Suitable for ribbon and non-ribbon fibers
  • Aerial, duct, direct burial, and well
  • Trunk lines
  • Access networks
  • FTTX, access networks and broadband


  • Ports: 1 uncut port, 4 branch ports, applicable to φ8-18mm cables
  • Capacity: maximum 12F tray capacity and 6 splice trays
  • Adaptor/Splitter: applicable to 1:8 mini splitter, 1 pc per tray
  • Sealing: mechanical seal for housing, heat-shrink seal for ports, IP68
  • Installation: wall mounting, aerial, pole mounting, underground
  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.

Technical Details:

Type Size Weight Inner carton size Outer carton size
GKCJ09-5609 395×Ф225mm 2.8-3.2kg 410×235×205mm(1 pcs) 740×440×450mm(6 pcs)

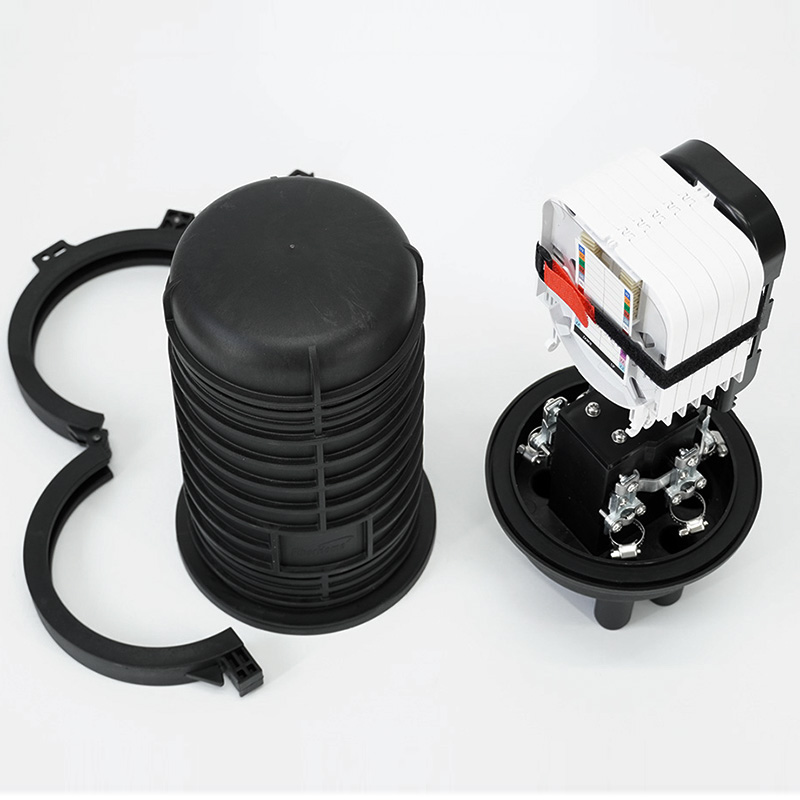

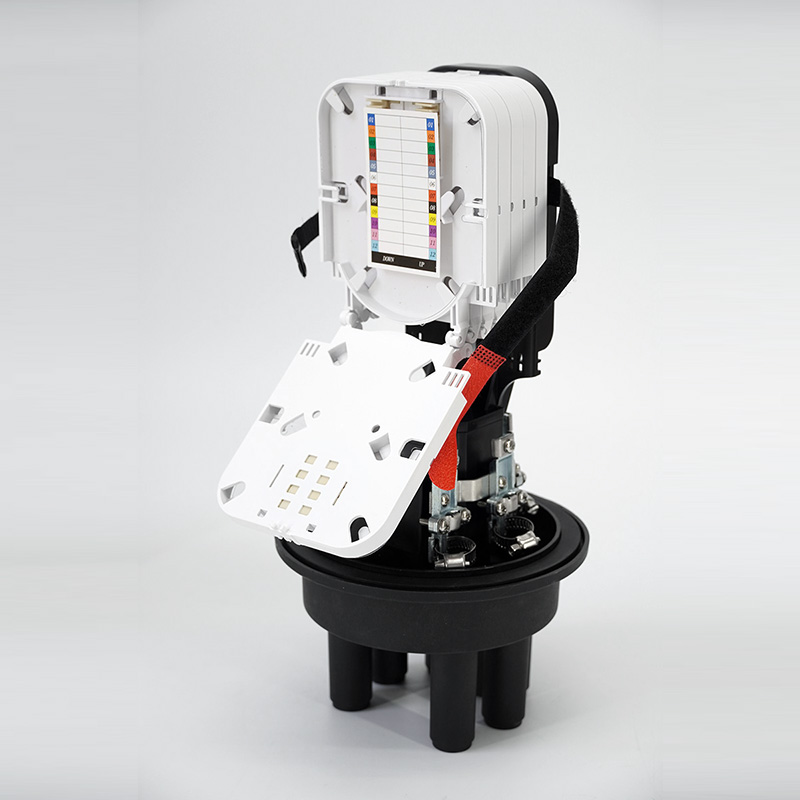

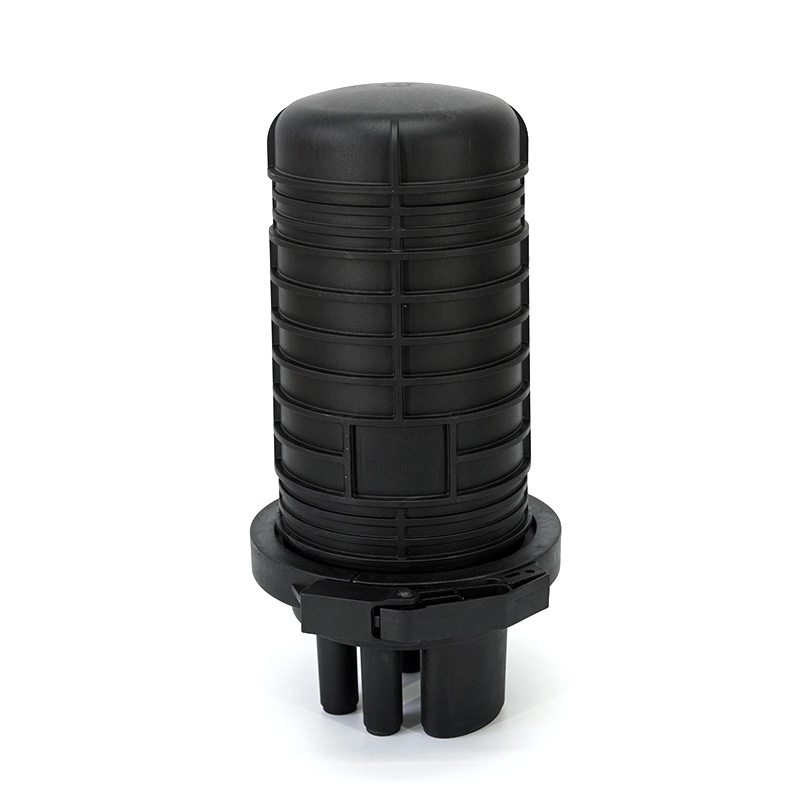

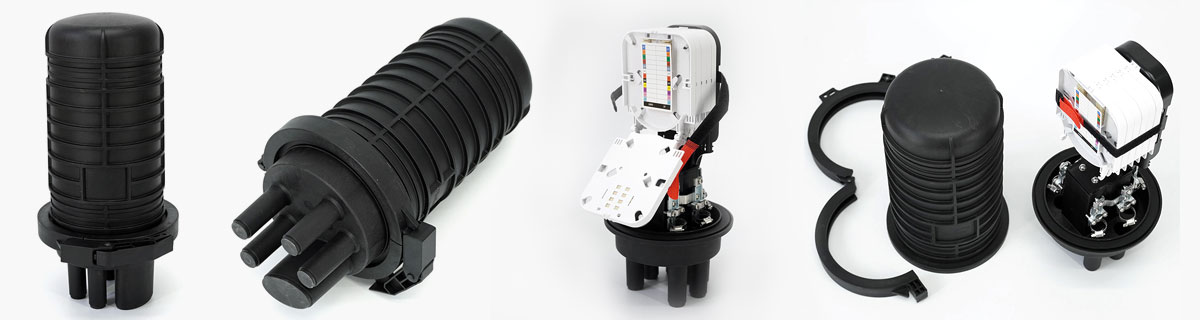

Product Photos:
