Fiber Optic In-line Closure GKCJ09-6804

Fiber Optic In-line Closure GKCJ09-6804

GKCJ09-6804 inline closure is a piece of versatile fiber optic connection equipment applicable to fusion splice, fiber storage and distribution.

Overview:

Applications

  • Suitable for ribbon and non-ribbon fibers
  • Aerial, duct, direct burial, and well
  • Trunk lines
  • Access networks
  • FTTX, access networks and broadband

Features

  • Ports: 2 inlets and 2 outlets, φ10-20mm;
  • Capacity: 3 pcs 24-core splice trays, max. 72F or 6 pcs 48-core splice trays, max. 288F
  • Sealing: bolt structure mechanical seal, IP68;
  • Installation: aerial, bracket mounting, direct burial, handhole, manhole;
  • 304 stainless steel sealing bolts ensuring the anti-corrosion performance;
  • Meets various kinds of environmental performance testing, such as TCT (*10) and corrosion testing;
  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.

Technical Details:

Type Name Dimensions (mm) Inner Carton (mm) Outer Carton (mm)
GKCJ09-6804 Inline Fiber Splice Closure 540×210×135 575×225×140 595×475×470(6 PCS)

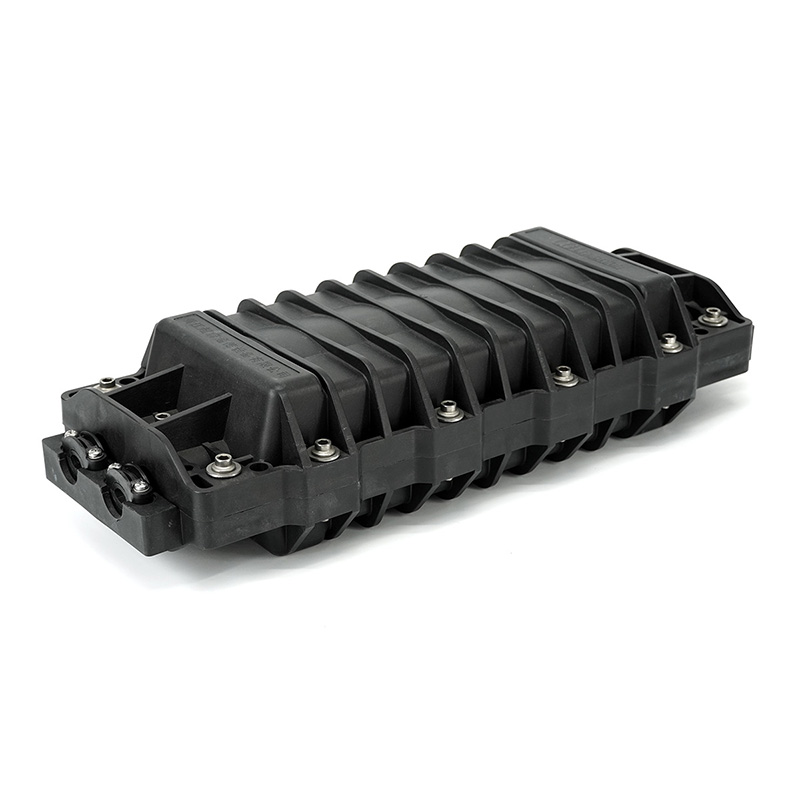

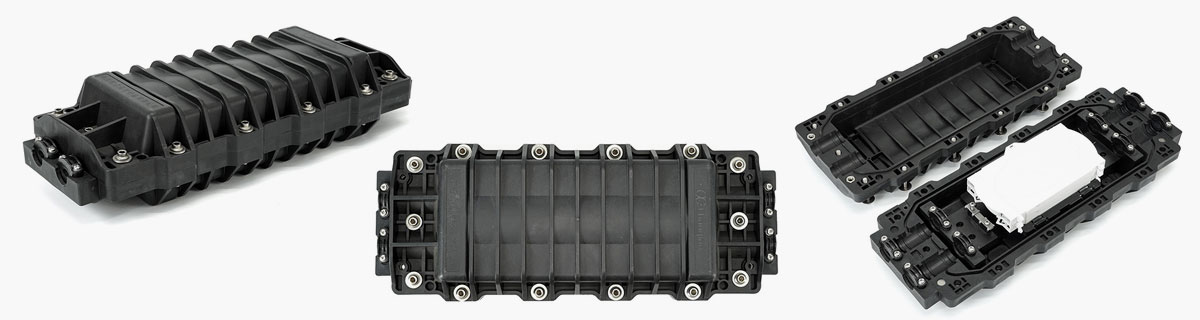

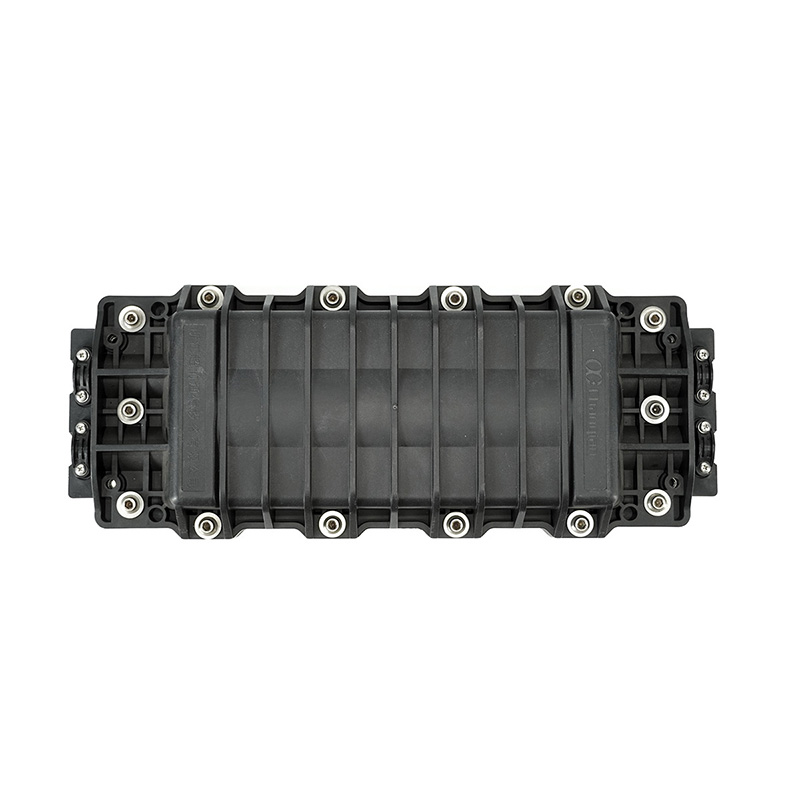

Product Photos:
