Fiber Optic Dome Closure GKCJ09-5822

Fiber Optic Dome Closure GKCJ09-5822

GKCJ09-5822 Dome closure is a piece of versatile fiber optic connector equipment, the reasonable interior structural design makes the closure a favorable choice for fiber splicing and storage.



  • Suitable for ribbon and non-ribbon fibers
  • Aerial, duct, direct burial, and well
  • Trunk lines
  • Access networks
  • FTTX, access networks and broadband


  • Ports: 1 oval port, 7 branch ports, applicable to φ8-18mm cables;
  • Capacity: maximum 360F, 60pcs 6F splice tray, or 30pcs 12F tray;
  • Fusion Splice Capacity: min. 24F, max. 360F · Sealing: mechanical seal for housing as well as ports, IP68;
  • Installation: direct burial, aerial, duct mounting;
  • Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.

Technical Details:

Type Size Weight Inner carton size
GKCJ09-5822 510×Ф300mm 4.0-5.5Kg 650×315×280mm(1 pcs)

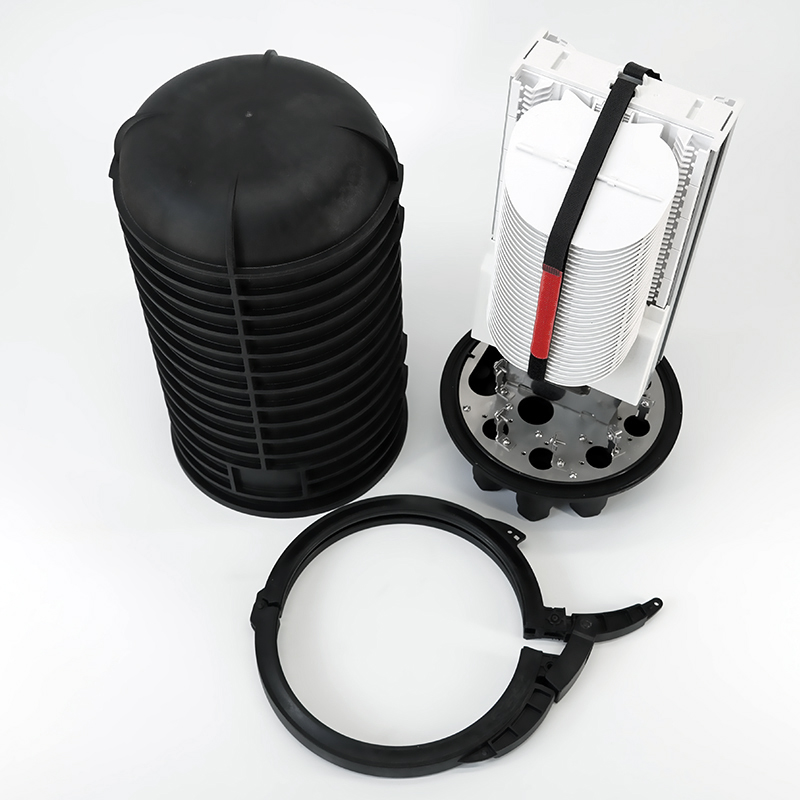

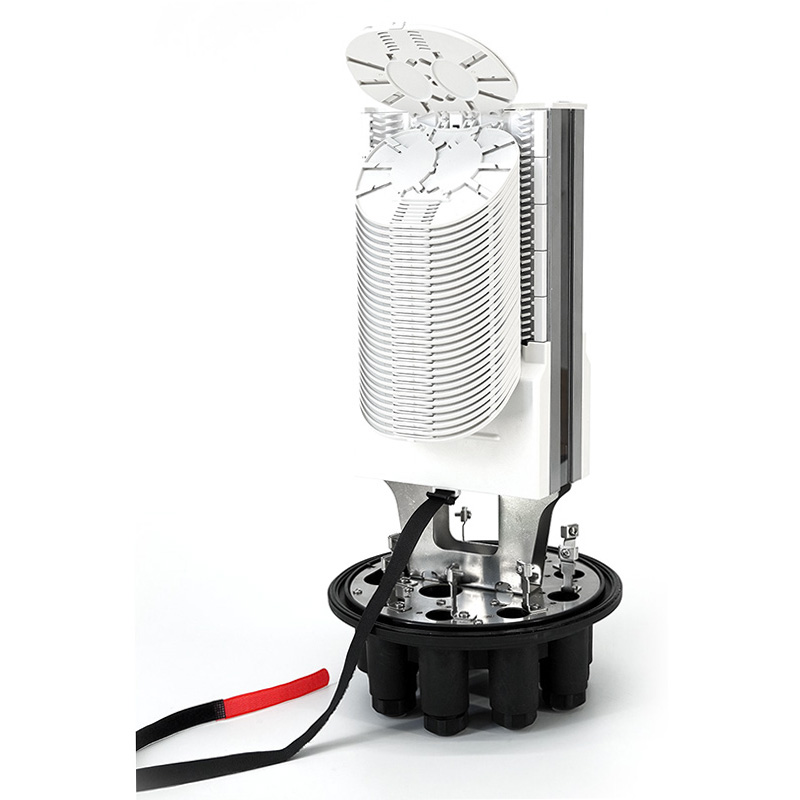

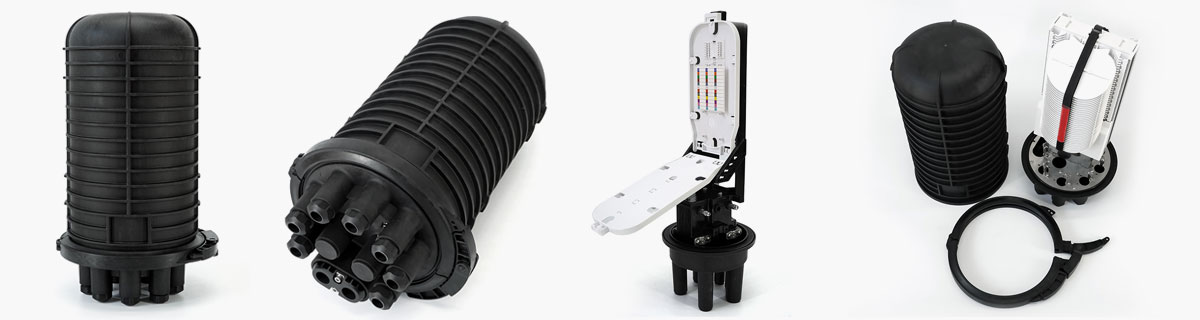

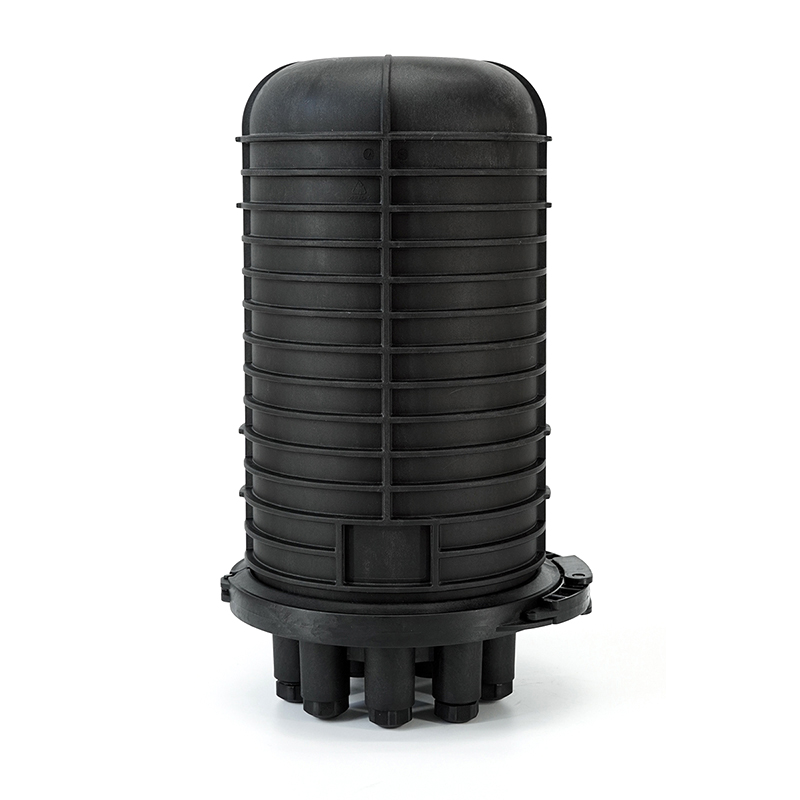

Product Photos:
